ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS
FIGURE 30-19
FIGURE 30-20

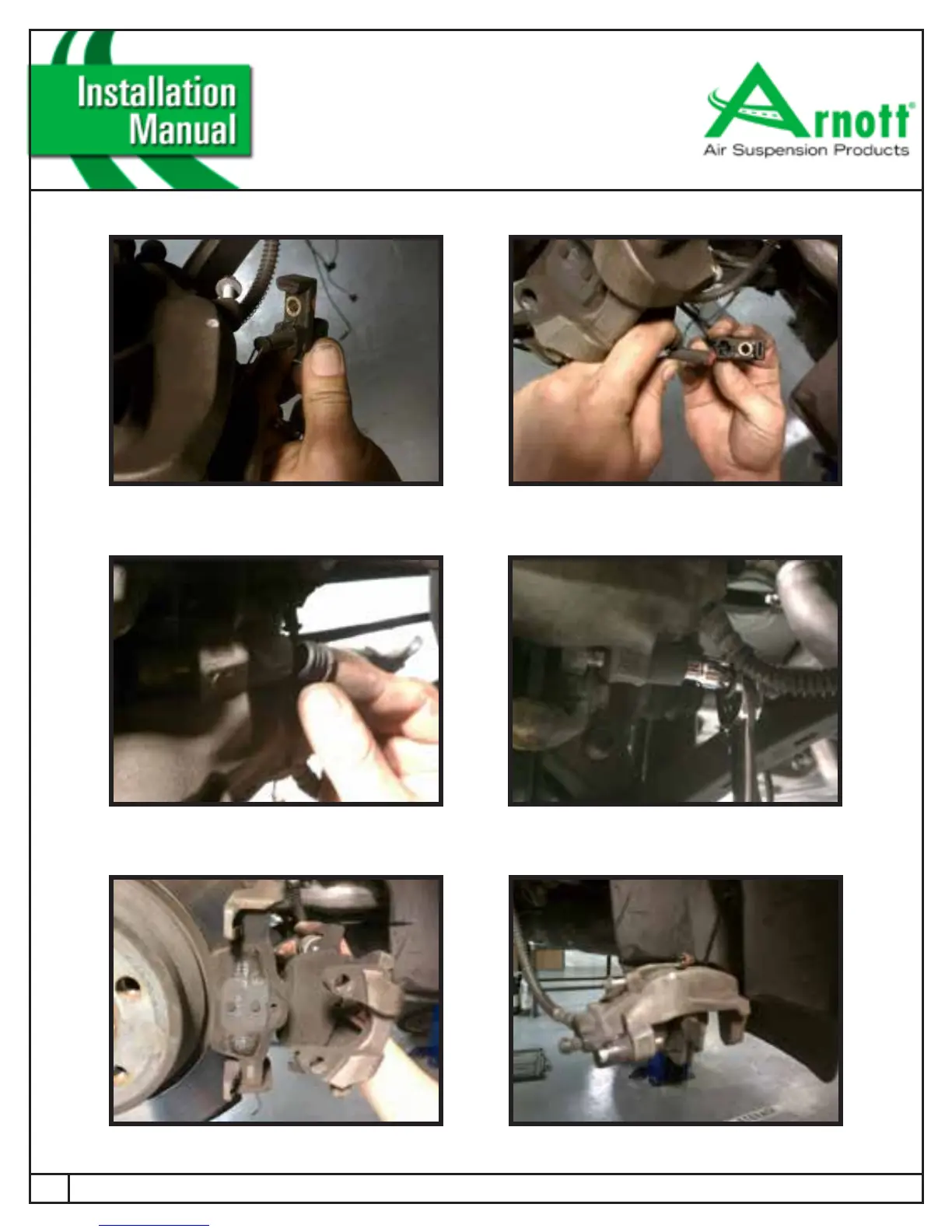

20. REMOVE THE CAPS FROM THE CALIPER MOUNTING BOLTS, LOOSEN AND REMOVE BOLTS. (FIGURE 30-20)
19. UNPLUG THE BRAKE PAD WEAR SENSORS. (FIGURE 30-19)
21. REMOVE CALIPERS, AND SUSPEND WITH CABLE TIES. (FIGURE 30-21)
FIGURE 30-21
