15
REV 2 11/18/2013
C-2278
C-2278
ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS
FIGURE 30-16
FIGURE 30-17

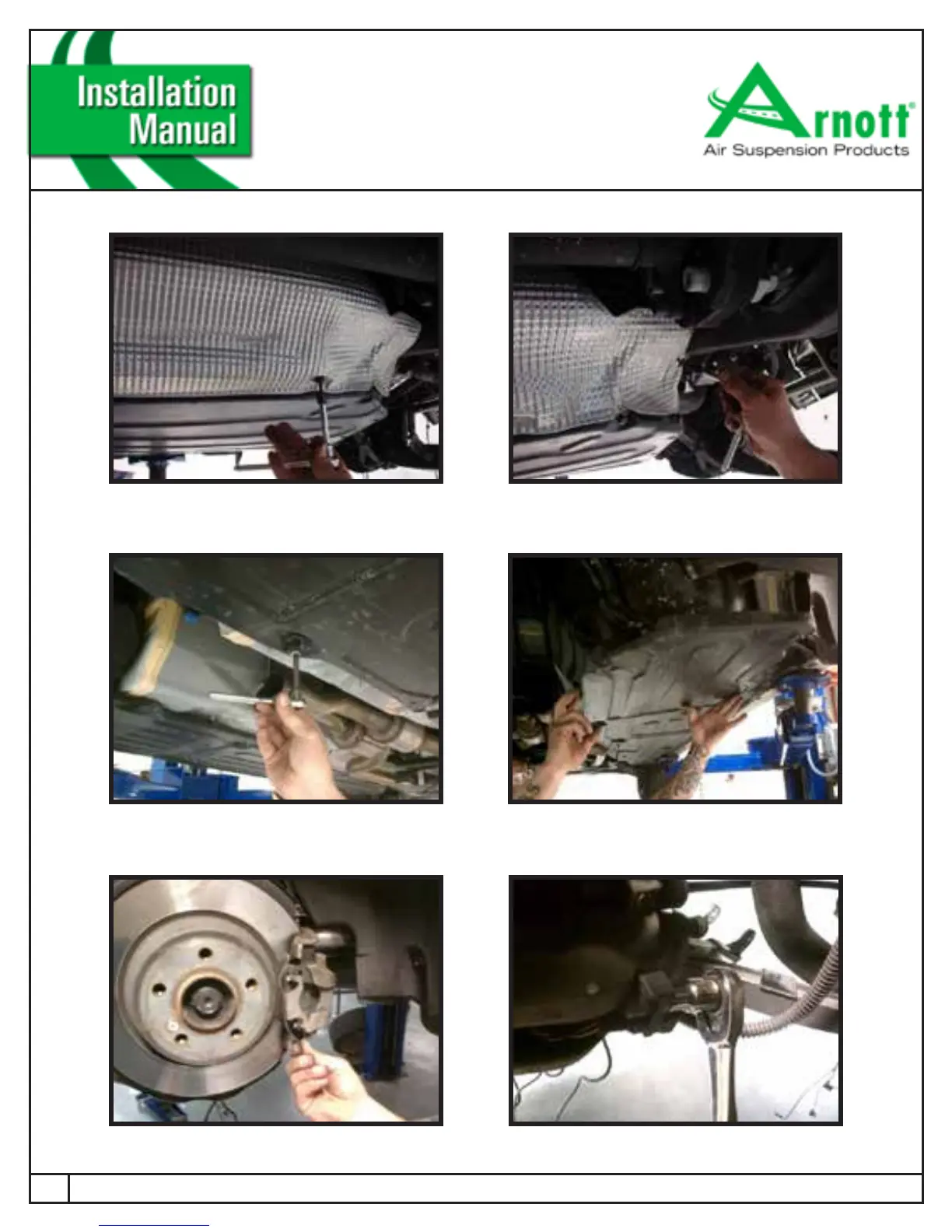

17. LOOSEN BOLTS AND REMOVE BOTH REAR ROCK GUARDS. (FIGURE 30-17)
16. LOOSEN BOLTS AND REMOVE THE REAR HEAT SHIELDS. (FIGURE 30-16)
18. REMOVE CALIPER CLIPS, AND THEN REMOVE BOLTS FROM BRAKE PAD WEAR SENSORS. (FIGURE 30-18)
FIGURE 30-18
