14
REV 2 11/18/2013
C-2278
C-2278
ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS

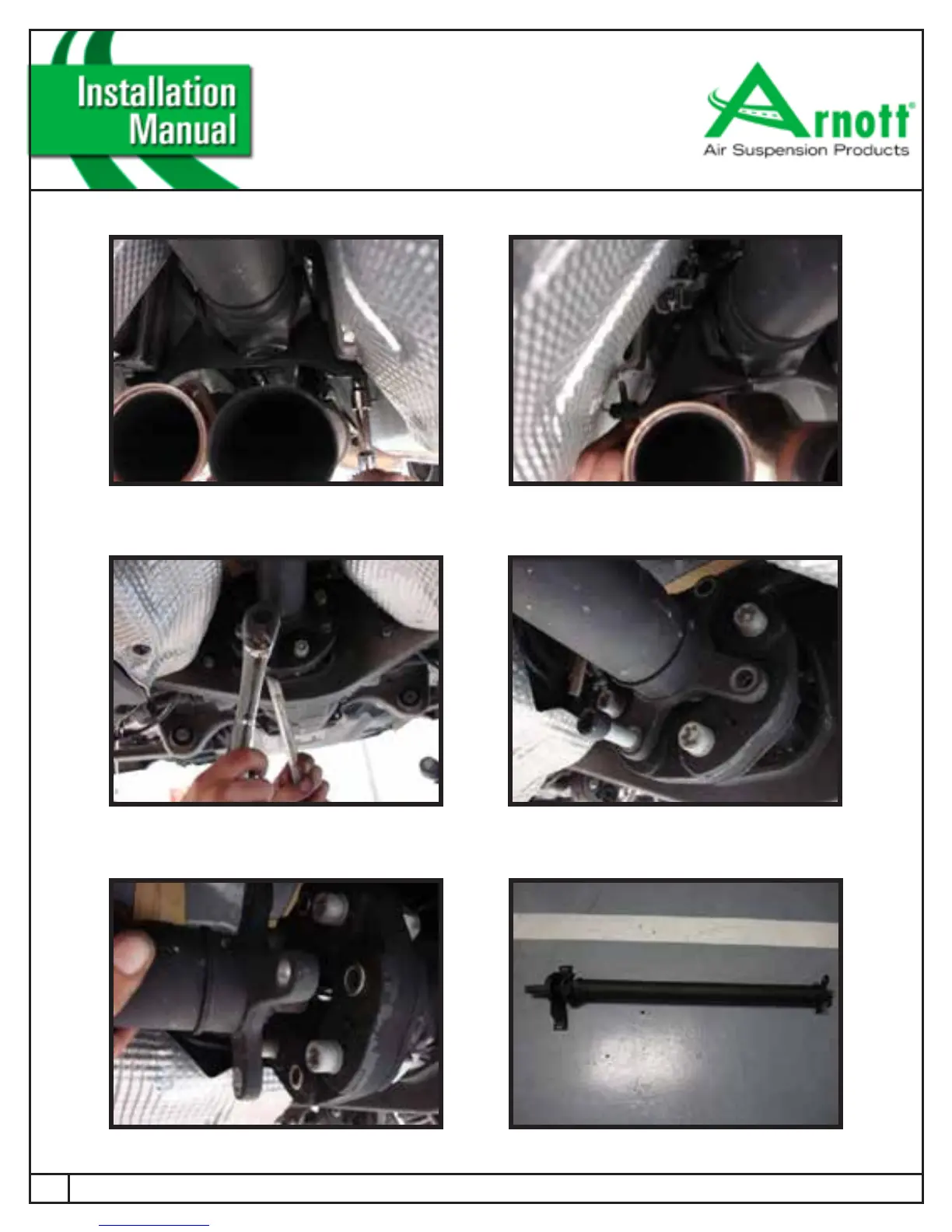

FIGURE 30-13
FIGURE 30-14
14. REMOVE THE REAR DRIVESHAFT BOLTS. (FIGURE 30-14)
13. REMOVE THE TWO BOLTS HOLDING THE CARRIER BEARING. CAREFULLY LOWER. (FIGURE 30-13)
15. SLIDE THE DRIVESHAFT TOWARD THE FRONT OF VEHICLE AND REMOVE. (FIGURE 30-15)
FIGURE 30-15
