Arnott C-2278 - Page 13

13
REV 2 11/18/2013
C-2278
C-2278
ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS

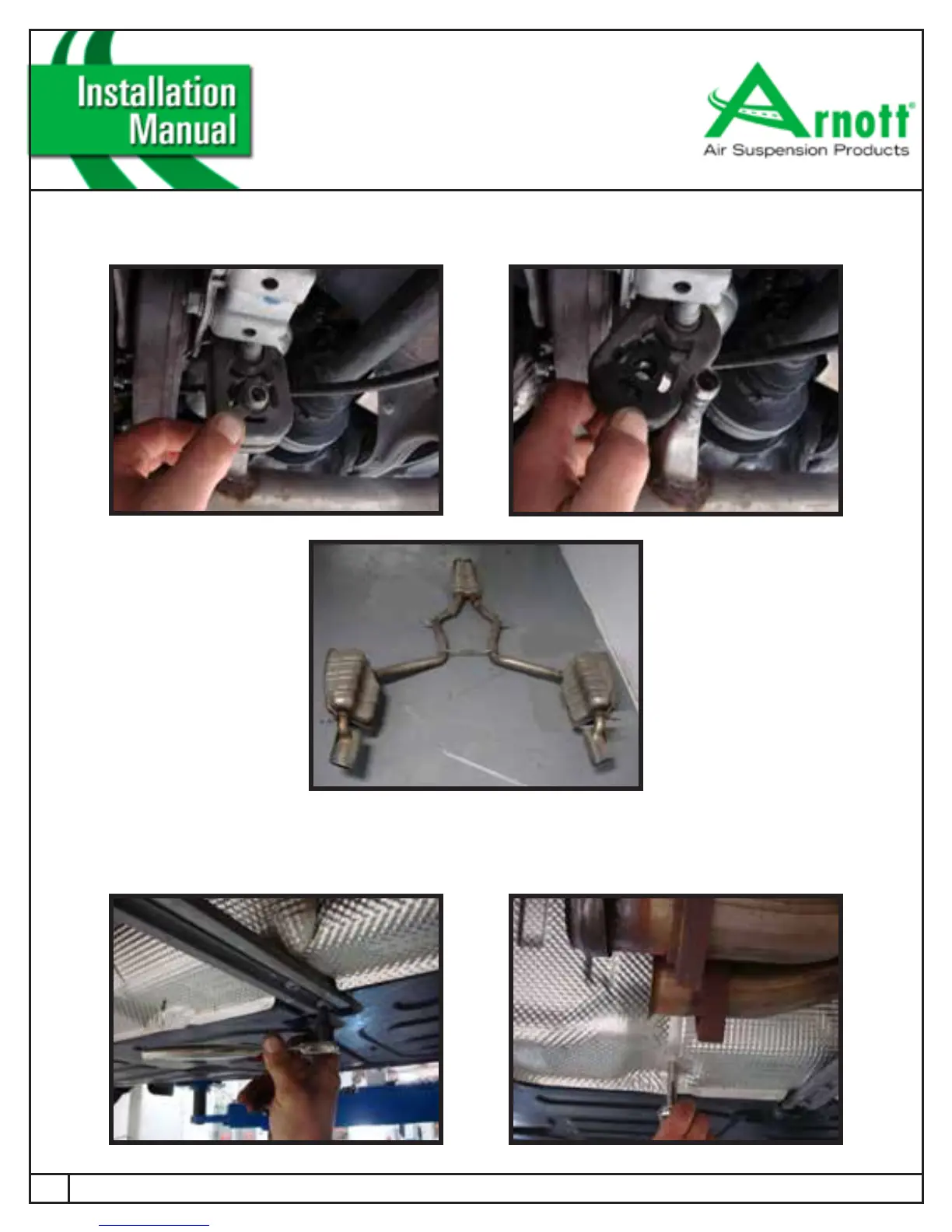

FIGURE 30-11
11. WITH THE EXHAUST STILL SUPPORTED, REMOVE THE RUBBER HANGERS. THEN REMOVE THE EXHAUST.
(FIGURE 30-11)
12. REMOVE THE DRIVESHAFT SAFETY BAR, AND THE TWO-PIECE HEAT SHEILD TO EXPOSE THE
DRIVE SHAFT CARRIER BEARING. (FIGURE 30-12)
FIGURE 30-12
