12
REV 2 11/18/2013
C-2278
C-2278
ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS

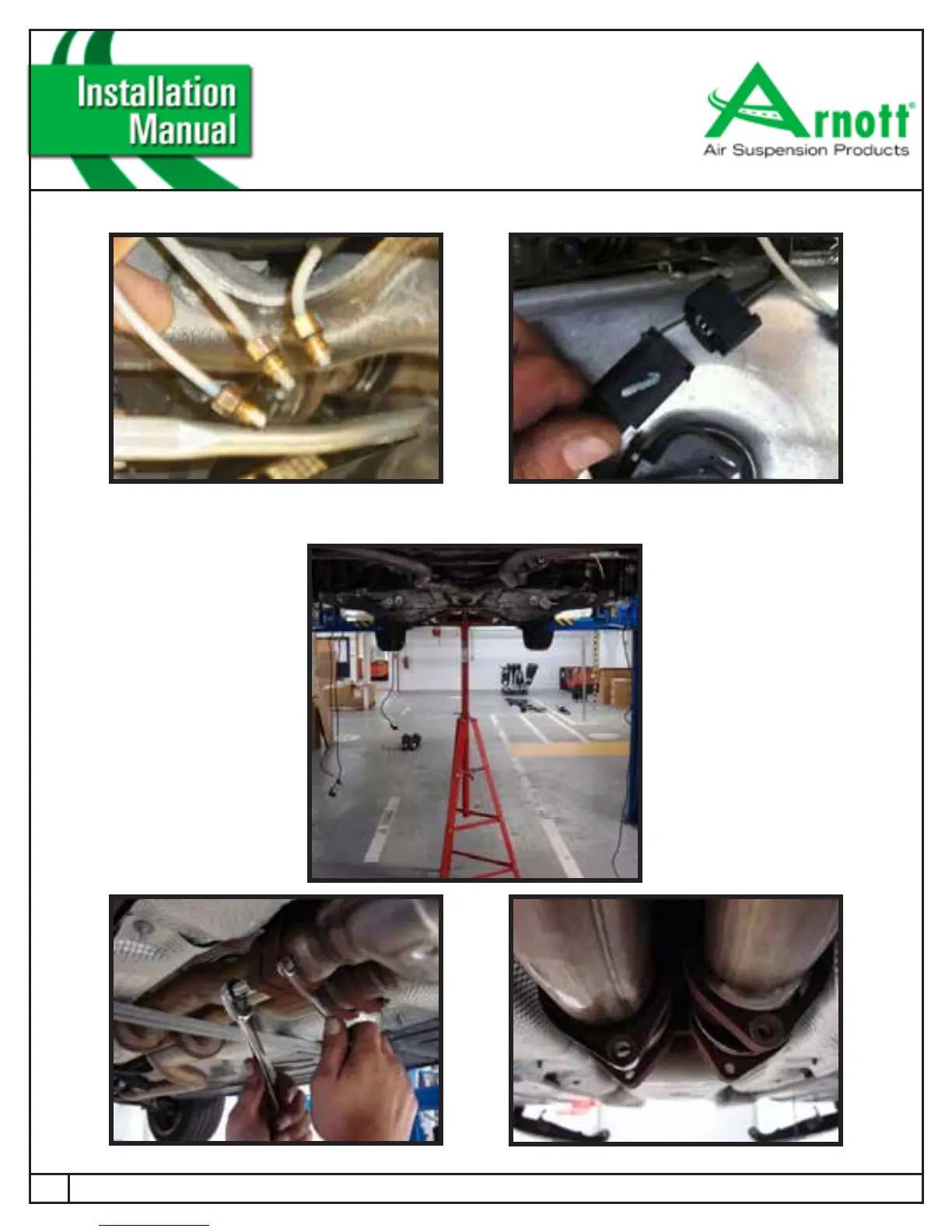

FIGURE 30-9
10. SUPPORT EXHAUST, LOOSEN AND REMOVE EXHAUST FLANGE BOLTS. (FIGURE 30-10)
9. AFTER THE AIR LINES ARE REMOVED, UNPLUG THE AIR SPRINGS VALVE WIRING. (FIGURE 30-9)
FIGURE 30-10
