ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS
FIGURE 30-6
FIGURE 30-7

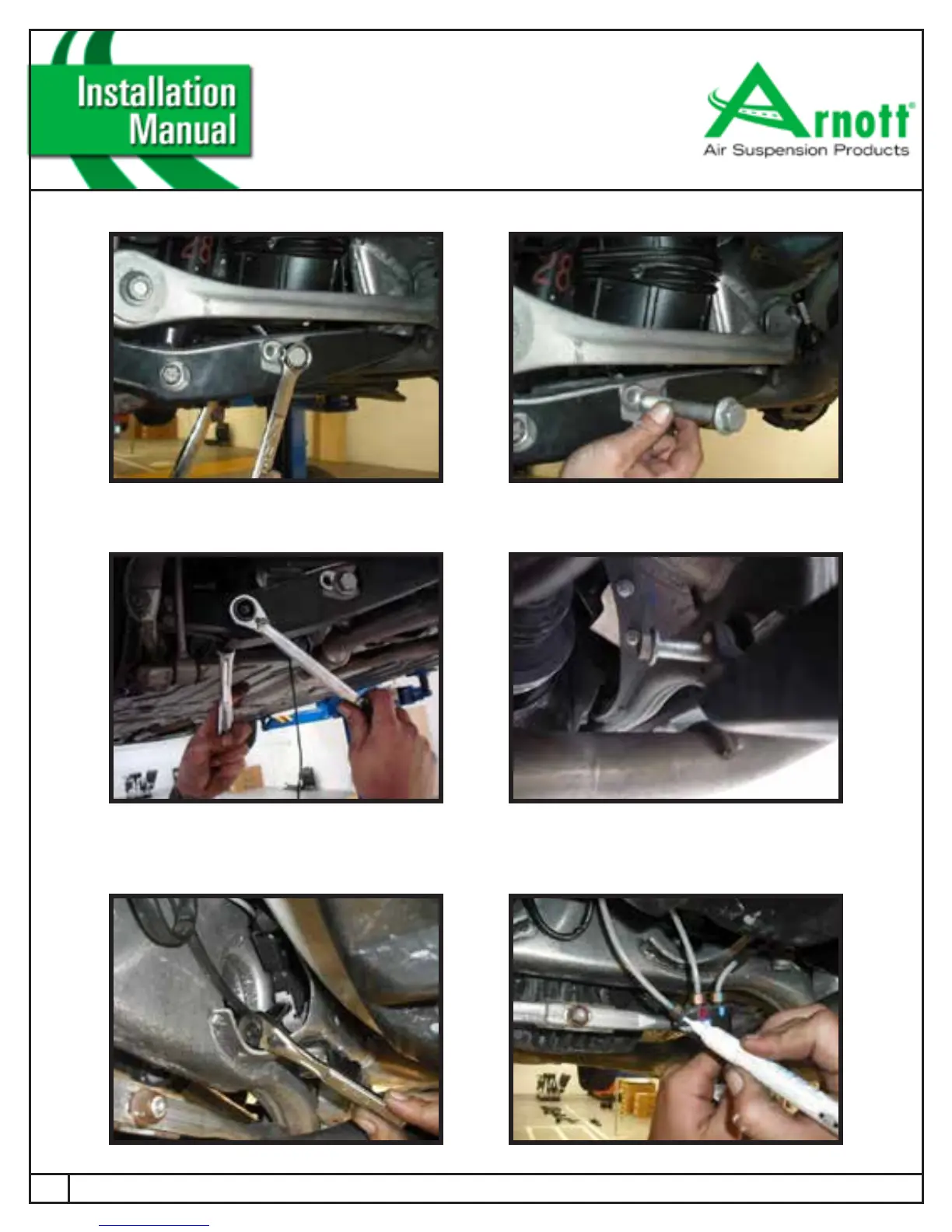

7. REMOVE THE LOWER SHOCK BOLTS. (FIGURE 30-7)
6. REMOVE THE AIR SPRING BOLTS FROM THE LOWER CONTROL ARMS. (FIGURE 30-6)
8. REMOVE THE MOUNTING NUT FROM THE AIR BLOCK. CLEARLY MARK THE AIRLINES ON THE AIR
DISTRIBUTATION BLOCK BEFORE DISCONNECTING. (FIGURE 30-8)
FIGURE 30-8
