ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS
FIGURE 30-4

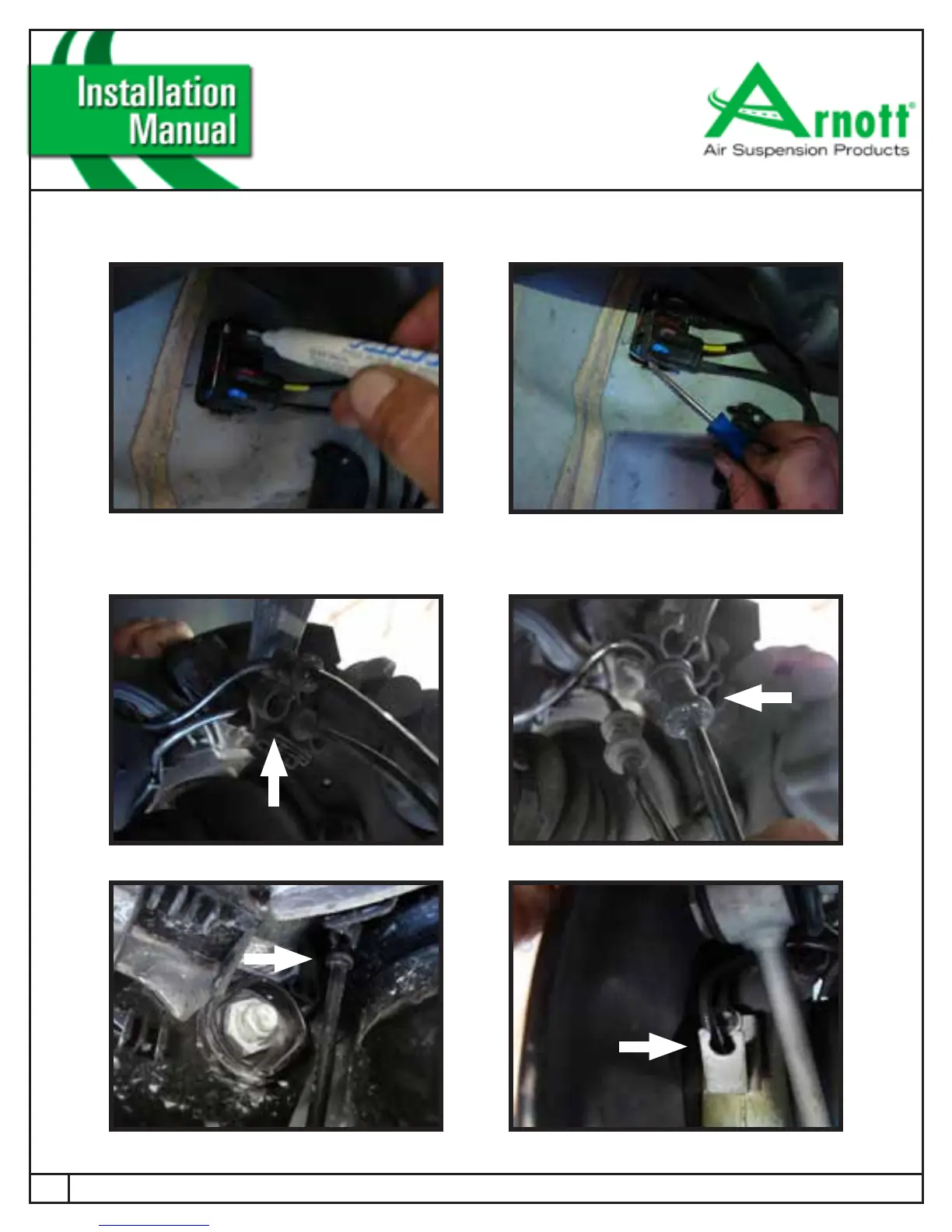

5. REMOVE THE SENSOR LINES FROM THE BRACKETS. (FIGURE 30-5)
4. MARK THE CONNECTIONS TO ENSURE PROPER PLACEMENT IN REASSEMBLY, REMOVE RETAINING CLIP
AND UNPLUG SENSOR LINES. (FIGURE 30-4)
FIGURE 30-5
