Arnott C-2278 - Rear Air Spring and Shock Service; Rear Air Spring Removal Procedure

9
REV 2 11/18/2013
C-2278
C-2278
ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS
FIGURE 30-1
FIGURE 30-2
2. REMOVE THE BOLTS FROM FENDER WELL. (FIGURE 30-2)

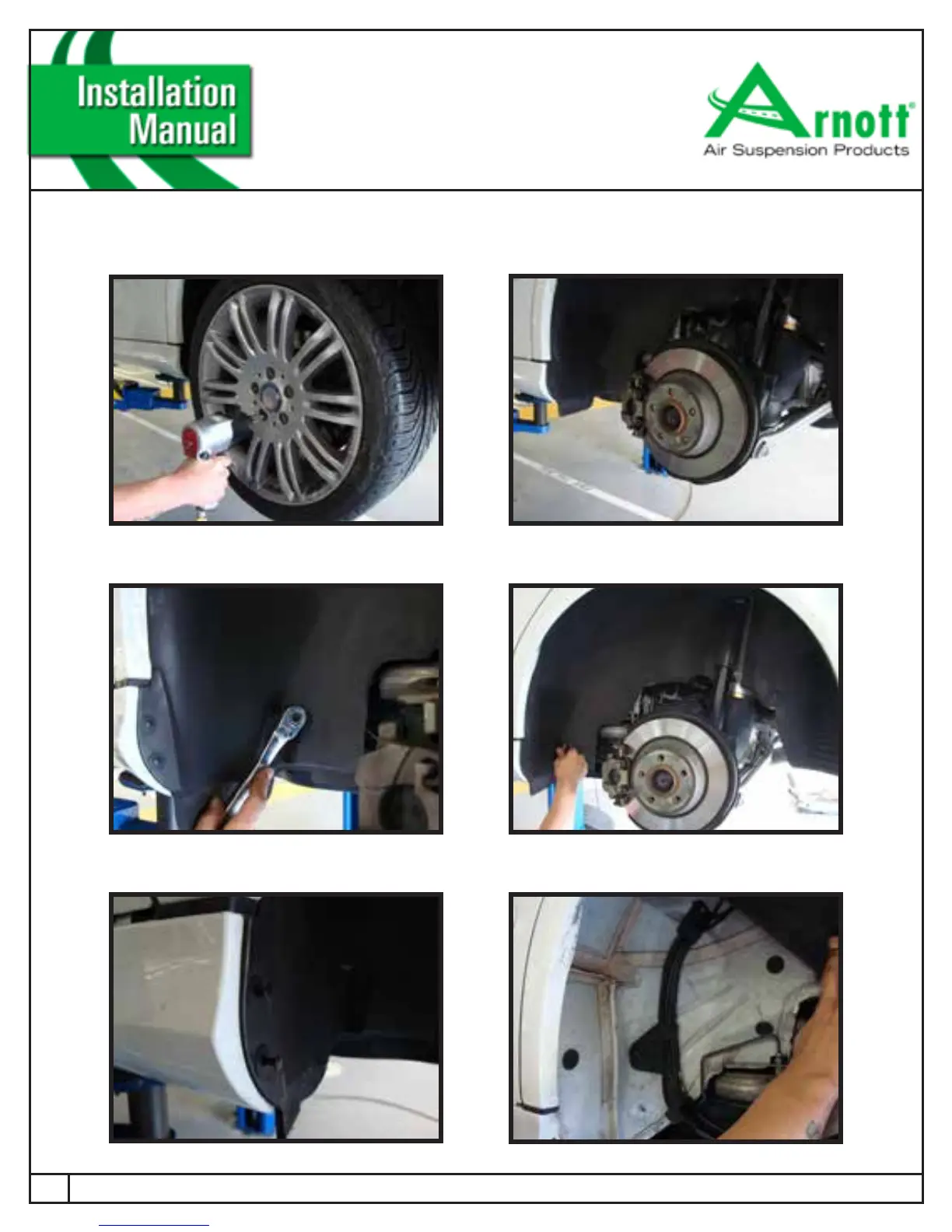

REAR AIR SPRING REMOVAL
1. REMOVE THE REAR WHEELS. (FIGURE 30-1)
3. REMOVE THE PUSH PINS FROM FENDER WELL TO EXPOSE THE SENSOR JUNCTION BLOCK. (FIGURE 30-3)
FIGURE 30-3
