ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS

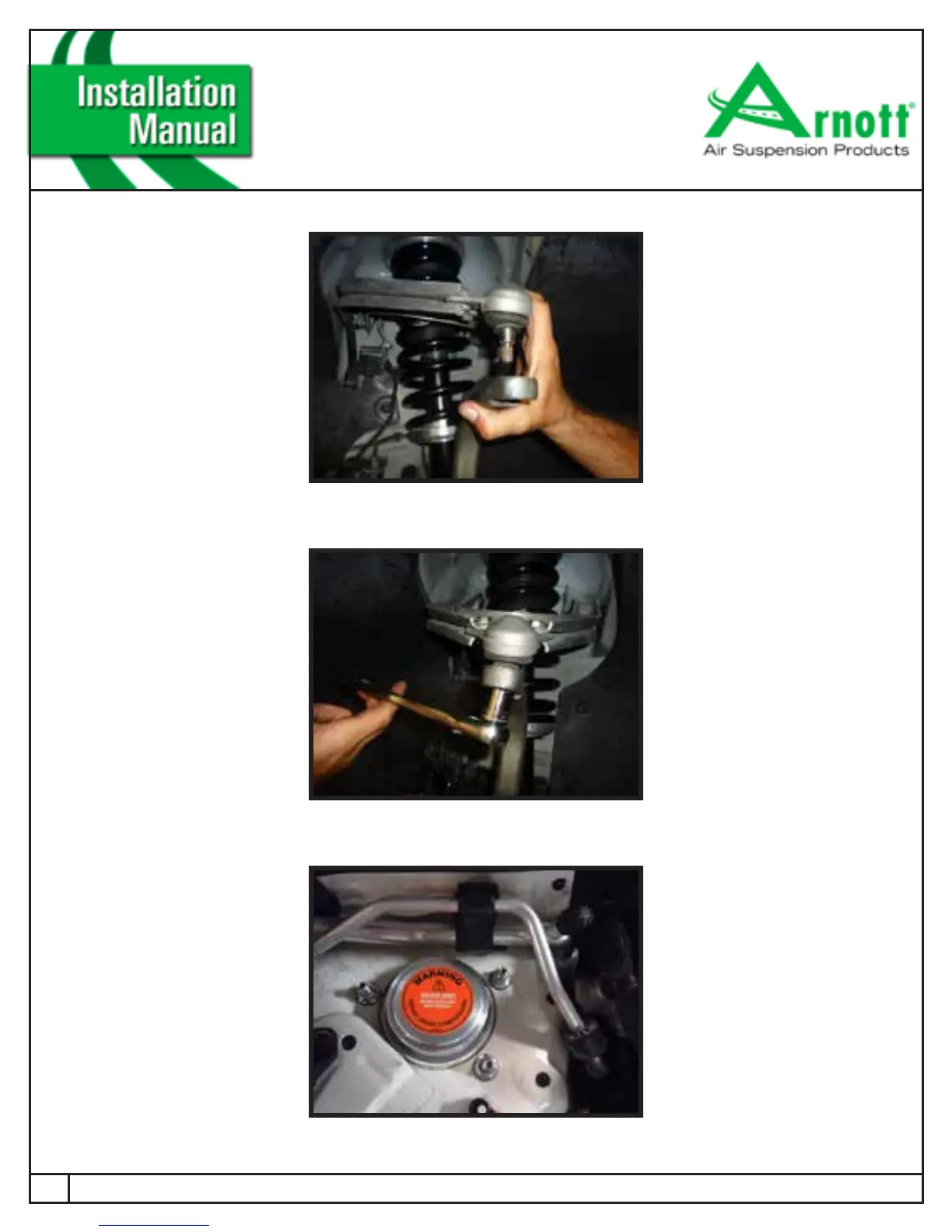

FIGURE 20-4
FIGURE 20-5
5. INSTALL THE BALL JOINT NUT. (FIGURE 20-5)
4. RECONNECT THE BALL JOINT TO SPINDLE ASSEMBLY. (FIGURE 20-4)
6. INSTALL THE THREE TOP MOUNTING NUTS. (FIGURE 20-6)
7. FRONT STRUT INSTALLATION COMPLETE.
FIGURE 20-6
