28
REV 2 11/18/2013
C-2278
C-2278
ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS

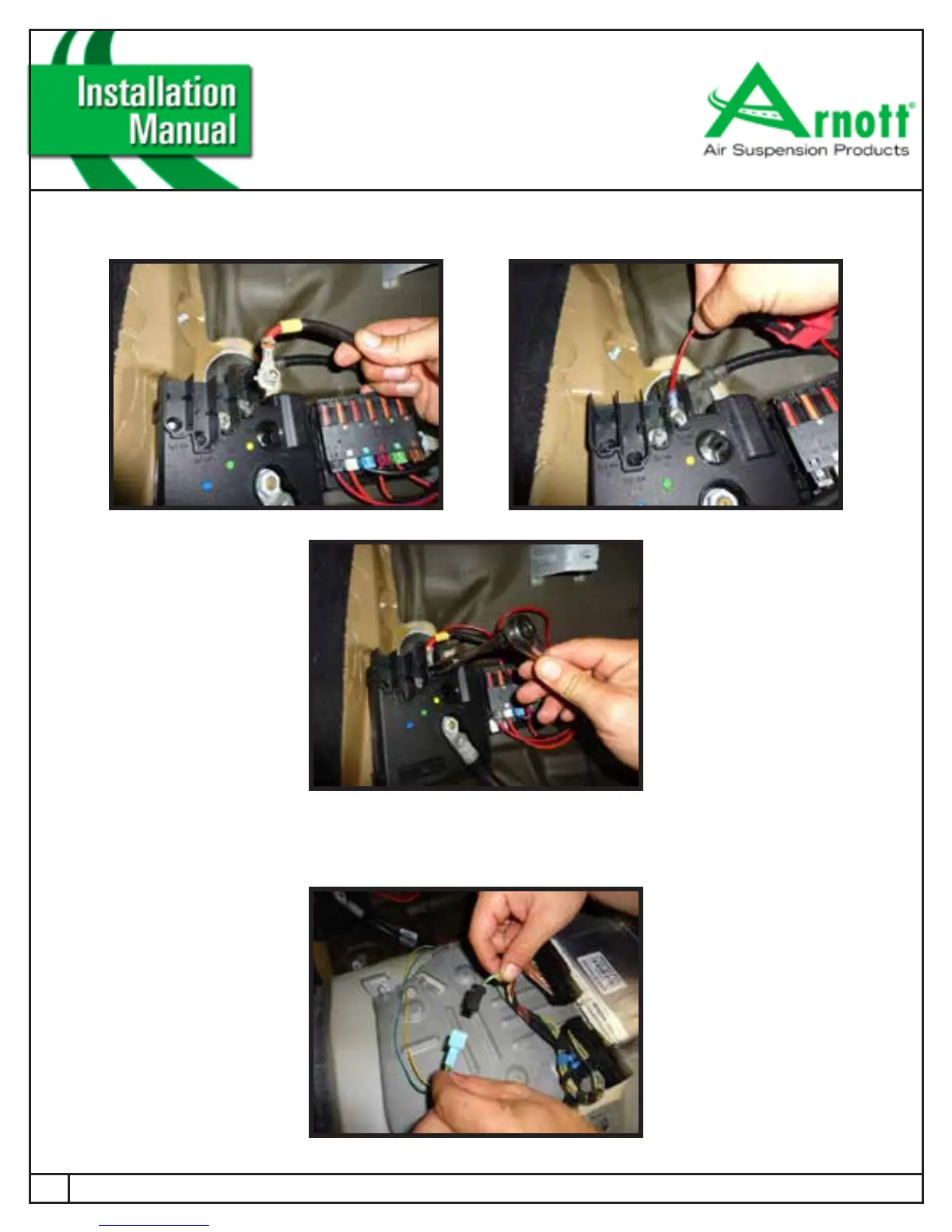

FIGURE 50-7
7. LOCATE THE POSITIVE 12 VOLT POWER SOURCE AND INSTALL THE RED WIRE FROM THE ELECTRONIC BYPASS
MODULES WIRING HARNESS. (FIGURE 50-7)
8. LOCATE THE SMALL, TWO WIRE PLUG FROM THE VEHICLES WIRING HARNESS AND PLUG IT INTO THE
ELECTRONIC BYPASS MODULES WIRING HARNESS. (FIGURE 50-8)
FIGURE 50-8
