ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS

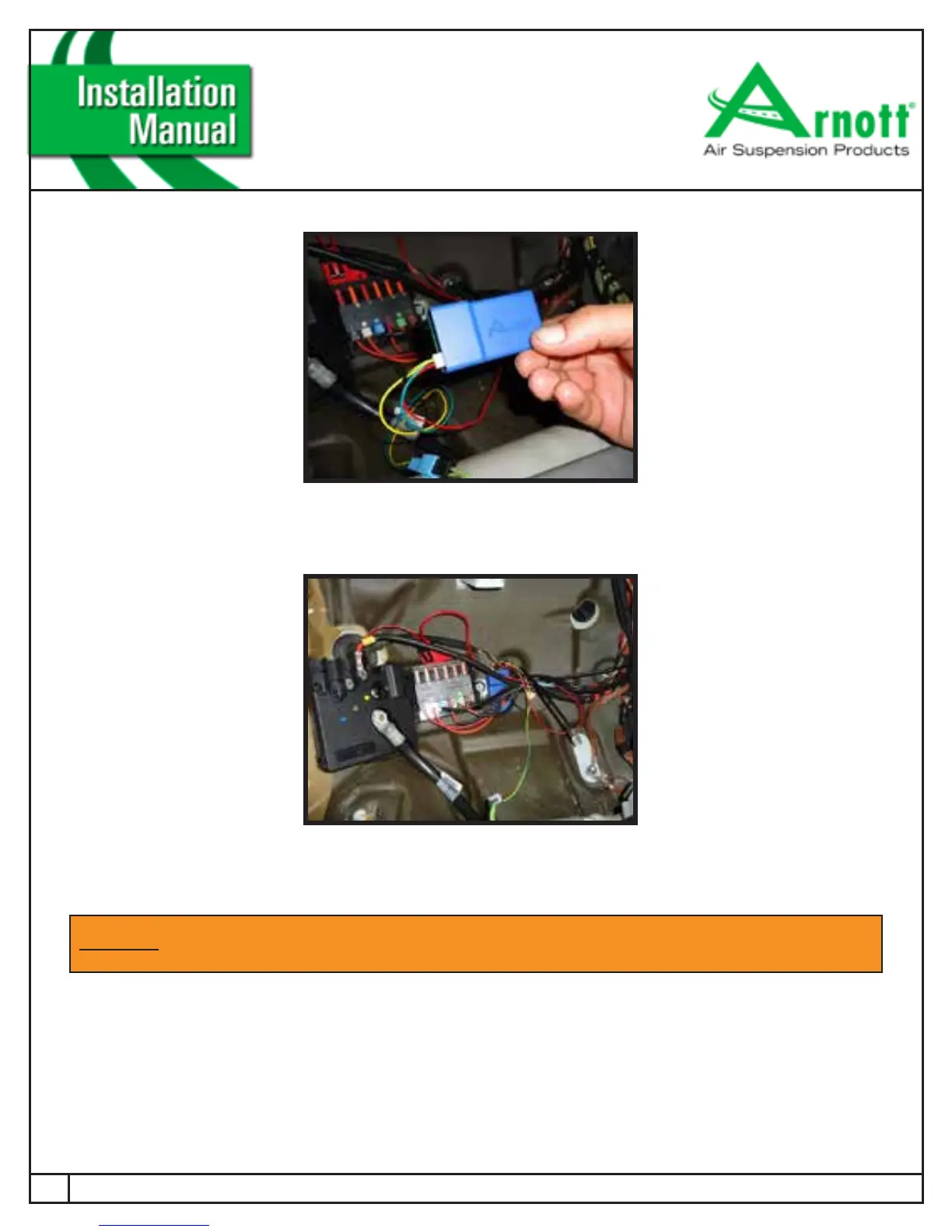

FIGURE 50-9
FIGURE 50-10
10. SECURE THE ELECTRONIC BYPASS MODULE IN A SUITABLE LOCATION AND REINSTALL ALL PANELS IN
REVERSE ORDER OF WHICH THEY WERE DISASSEMBLED. (FIGURE 50-10)
9. PLUG THE NEW WIRING HARNESS INTO THE ELECTRONIC BYPASS MODULE. (FIGURE 50-9)
11. ELECTRONIC BYPASS MODULE INSTALLATION COMPLETE.
DO NOT PLUG THE FACTORY WIRING HARNESS BACK INTO THE VEHICLES AIR
SUSPENSION CONTROL MODULE.
