Arnott C-2278 - Page 3

3
REV 2 11/18/2013
C-2278
C-2278
ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS

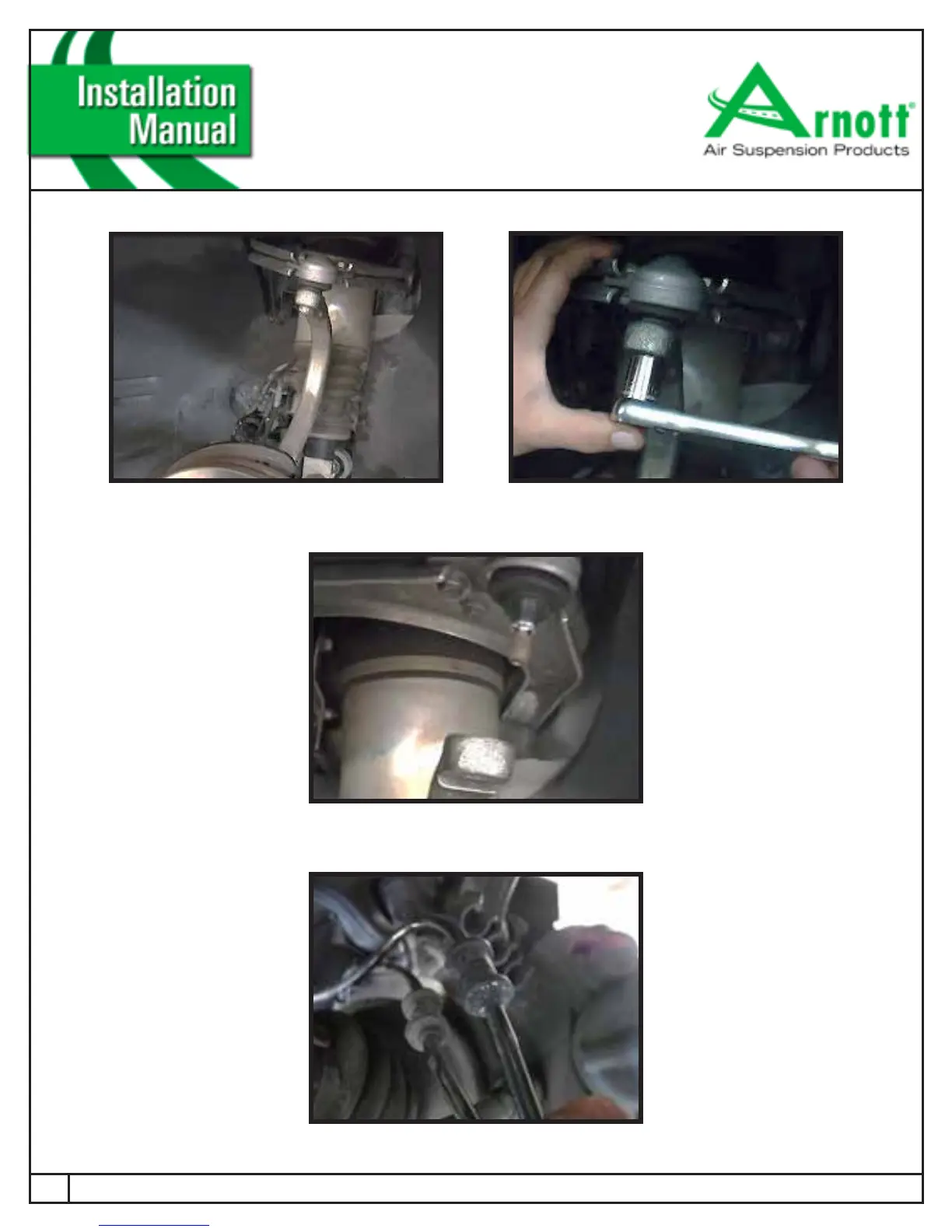

FIGURE 10-2
FIGURE 10-3
5. SEPARATE THE BALL JOINT FROM THE SPINDLE ASSEMBLY. (FIGURE 10-3)
4. LOCATE AND REMOVE THE UPPER CONTROL ARM BALL JOINT NUT. (FIGURE 10-2)
6. REMOVE THE SENSOR LINES FROM BRACKETS. (FIGURE 10-4)
FIGURE 10-4
