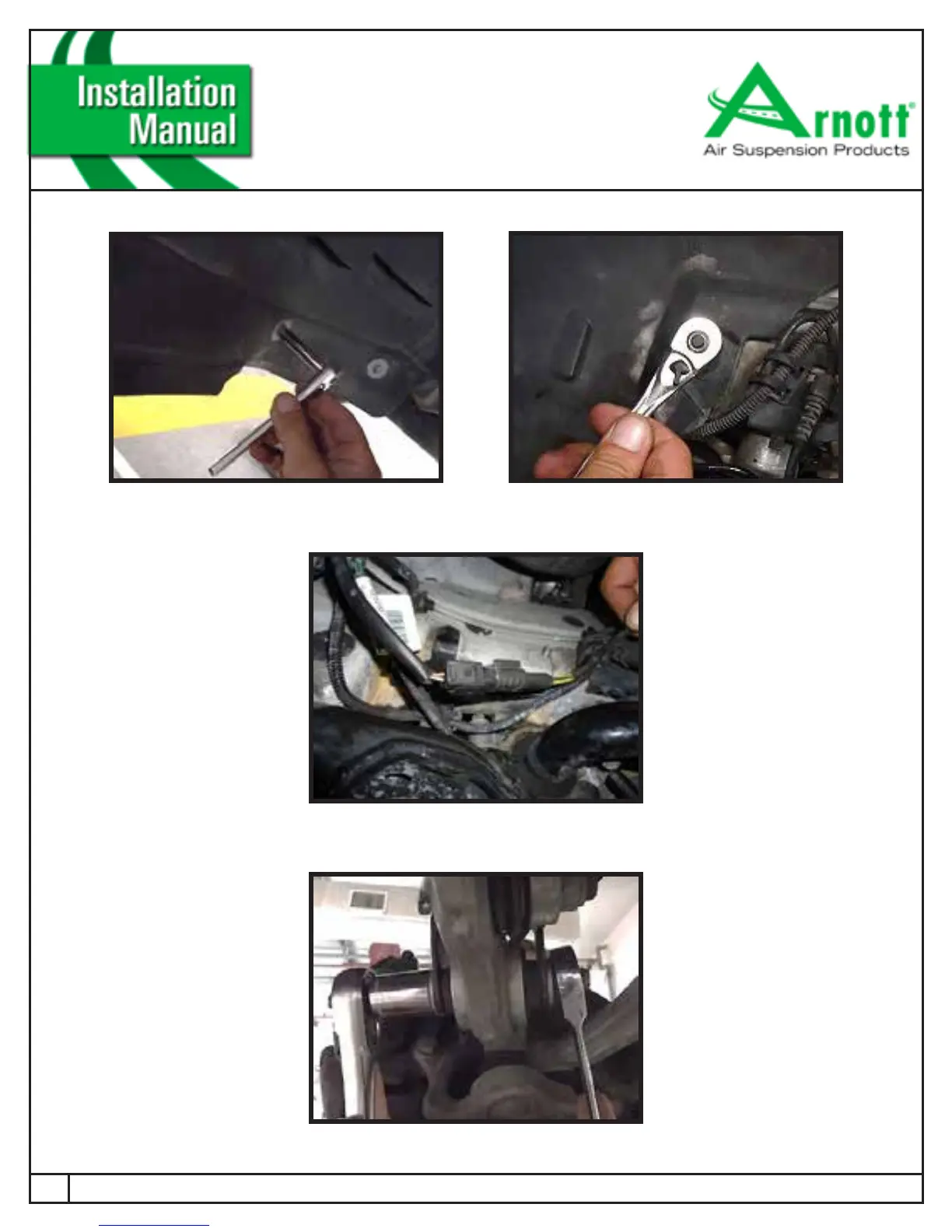

ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS
FIGURE 10-5
FIGURE 10-6
8. DISCONNECT THE STRUT’S ELECTRICAL PLUG LOCATED BEHIND THE INNER FENDER WELL. (FIGURE 10-6)
7. REMOVE THE INNER FENDER WELL SCREWS. (FIGURE 10-5)
9. LOOSEN BUT DO NOT REMOVE THE LOWER STRUT MOUNTING BOLT. (FIGURE 10-7)
FIGURE 10-7
