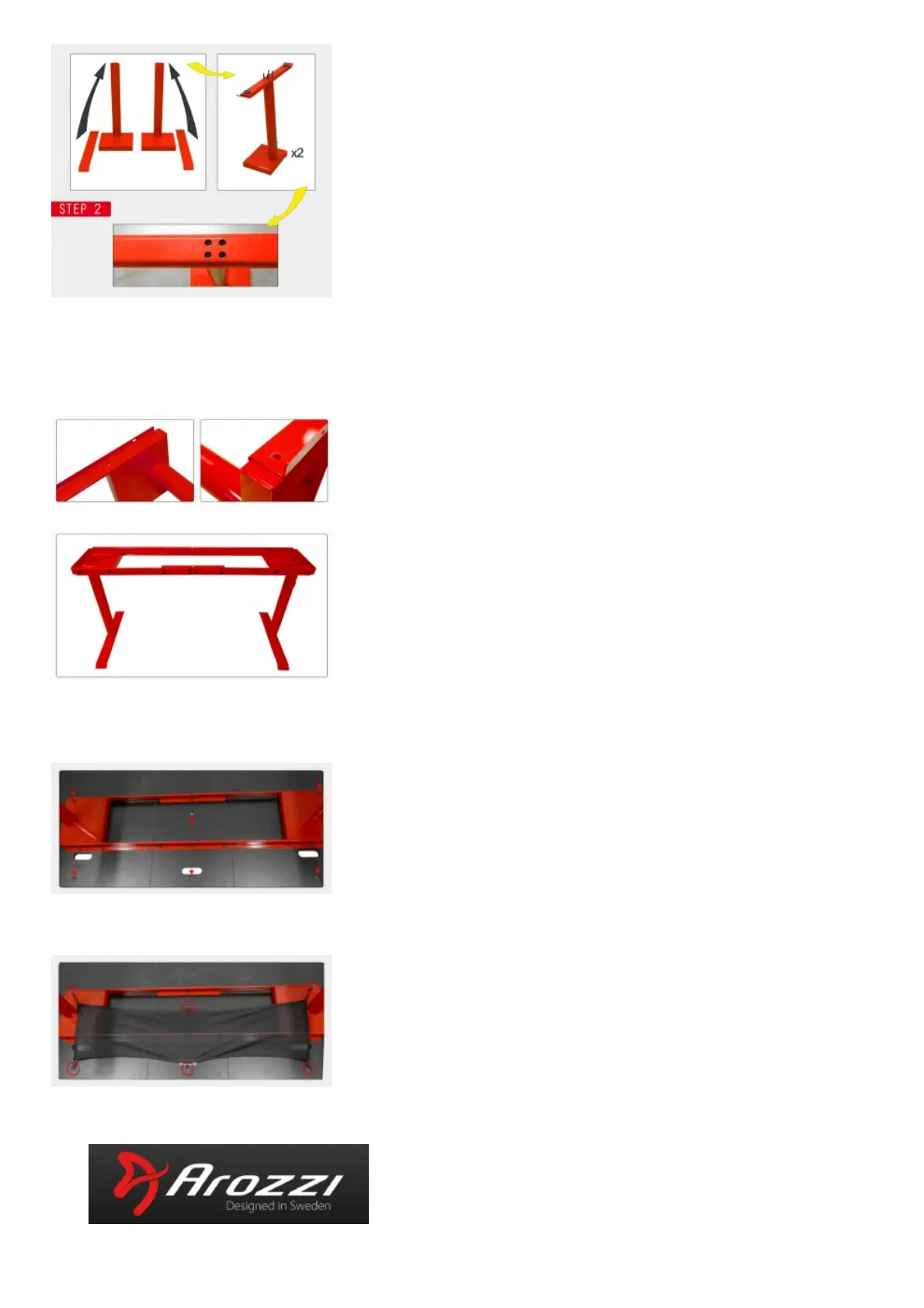

2. Insert tighten the four screws, repeat the procedure for the other leg.
STEP 4
4. Place the parts you just assembled on the legs as shown below. Screw them together loosely with
package C Repeat procedure for the other side.
Now the frame is done, DO NOT tightens the screws yet.
STEP 7
7. The screws in the last remaining package, E will hold the cable management net in place. Put them
in the remaining holes as shown. Now tighten all the screws from previous steps
STEP 8
8. Put the net on by placing the loops over bolt heafs.
READ MORE AT AROZZI.SE / AROZZI.COM
ARENA ASSEMBLY GUIDE
