I N S TA L L A TI O N I N S T R U C TI O N S
The Mainframe
4.5
a) MOUNTING
The mainframe is tabletop mounted. It does not require screwing down to the table surface.
b) CABLE INGRESS AND EGRESS
All cables enter and exit the console at the rear of the mainframe.
c) ACCESS TO THE CONSOLE CONNECTORS
The mainframe VU meter panel hinges back to provide access to the console wiring area. The motion of the VU meter panel is NOT
limited so be careful to not scratch the paint or drop the panel.
d) MDOULE CONNECTORS

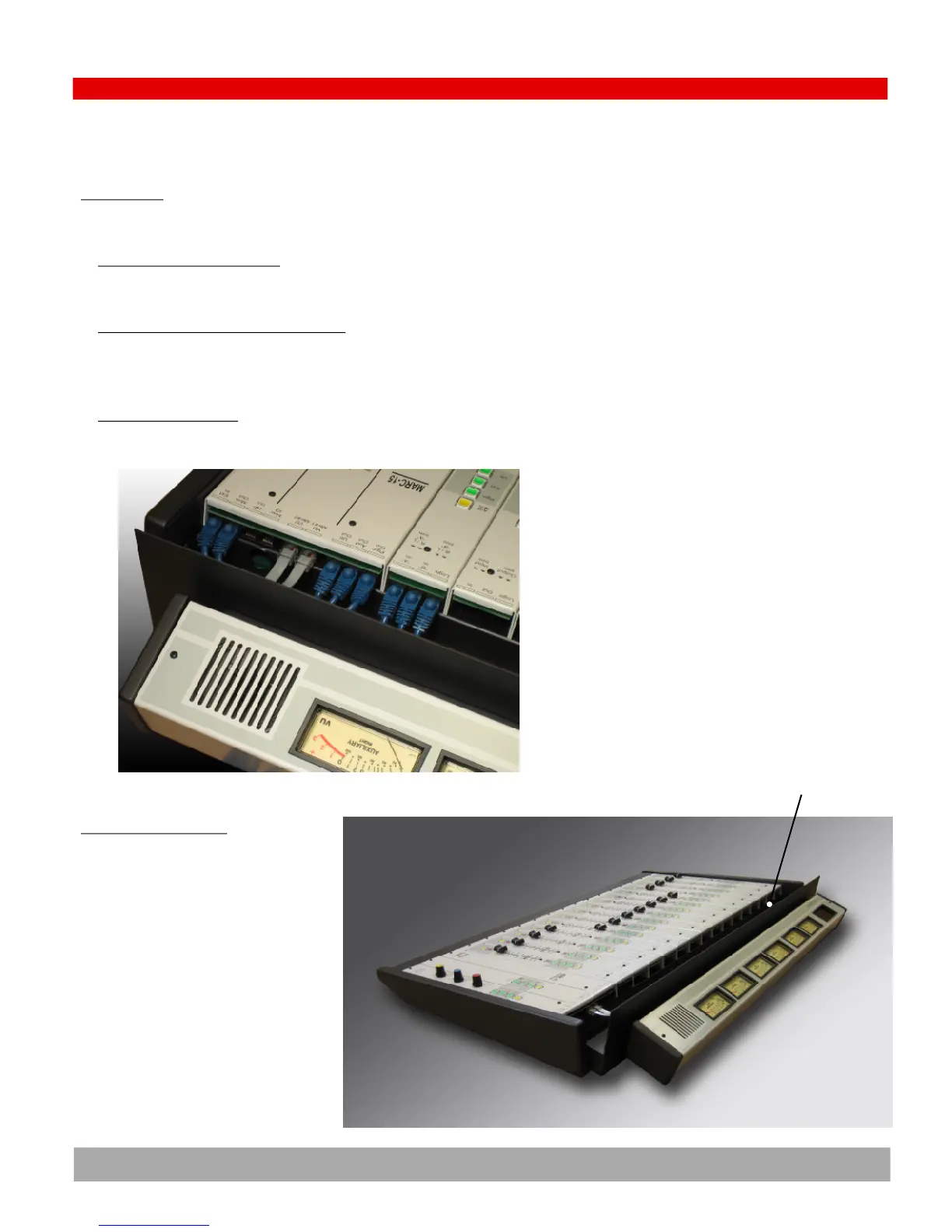

All module connectors are RJ45s that plug into the rear of each module as illustrated below.
#6 screw ground lug for grounding the
mainframe to the stationground
e) MAINFRAME GROUND
A threaded screw ground lug is provided
on the motherboard panel, beneath the VU
meter bridge, on the left side of the con-
sole (as viewed from the front).
Connect the main station ground to this
screw lug to ground the console.
