I N S TA L L A TI O N I N S T R U C TI O N S
Cabling
4.7
The cables supplied with the MARC-15 are #24 gauge, stranded, CAT5, 20-25 feet long, with RJ45 connectors on
both ends. Each cable is intended to be cut into two cables with an RJ45 connector at one end and for the other
end to be wired to the specific connector for the equipment on the other end.
Shield ground
The RJ45 cables supplied with the MARC-15 are shielded. They have a shield drain wire. This drain wire should
be grounded on the connector at the equipment end of the cable or at the punch block, not at the console end.
Mic Cables
The mic module has shield grounding RJ45 connectors at the module. The shield is therefore grounded through
the module.

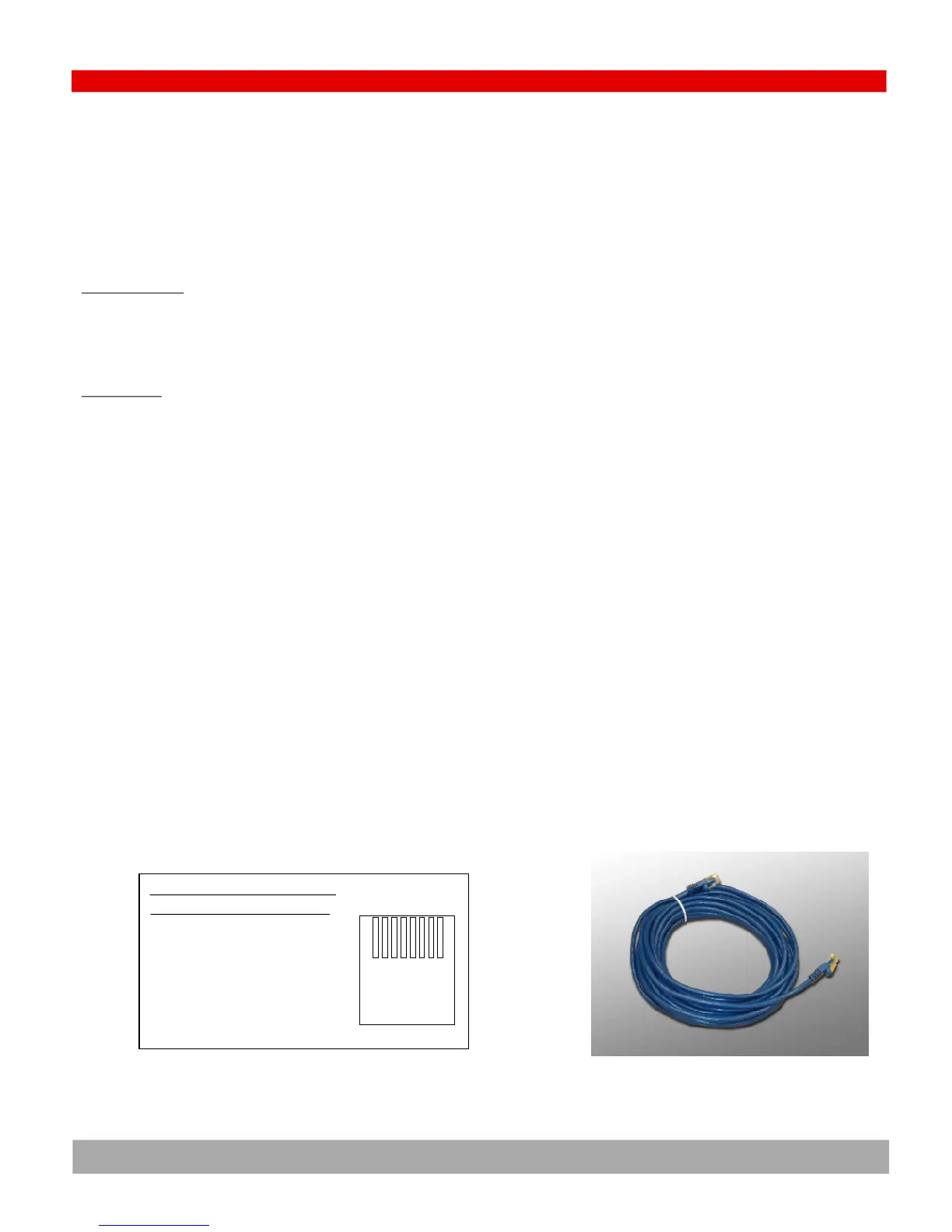

Standard cables (supplied)
Ten foot cables (molded RJ45 on one end other end
open) are supplied standard with the MARC-15
PIN Wire Color Audio
1 White w/Orange Stripe Left (+)
2 Orange w/White Stripe Left (-)
3 White w/Green Stripe Right (+)
4 Blue w/White Stripe Ground
5 White w/Blue Stripe
6 Green w/White Stripe Right (-)
7 White w/Brown Stripe
8 Brown w/White Stripe
1,2,3,4,5,6,7,8
RJ45
EIA/TIA 568B WIRING STANDARD COLORS
