I N S TA L L A TI O N I N S T R U C TI O N S
Power Supply
4.6
MAIN POWER SUPPLY
110vac - 220 VAC,
50-60 hz, autosensing
Certified: UL, CE, CS, CB
External inline module:
3"W x 5 3/4"L x 1 3/4"D
Main Power Supply
The power supply is an external regulat-
ed supply as illustrated below.

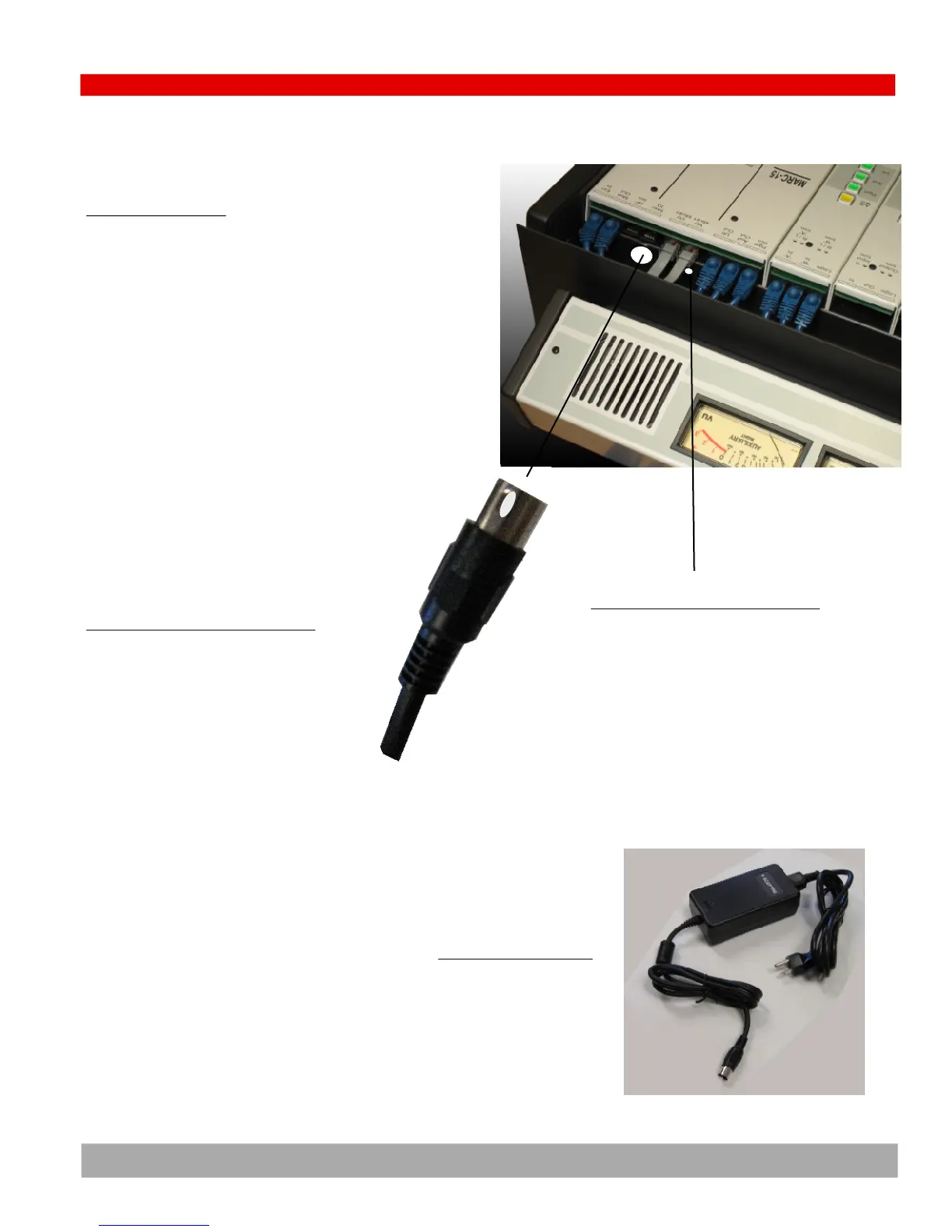

The DC power connector plugs into the
hole in the rear of the mainframe as
shown. The indented key tab on the DC
power connector faces up. The connec-
tor is recessed a couple of inches into
the frame.
NOTE: the recessing of the connector can
make it difficult to plug in. It is much eas-
ier to plug the connector in from the
rear of the console than from the front.
48 VDC Phantom Power Supply
The phantom power supply is also exter-
nal and is plugged into a hole near where
the main power supply is plugged.
48 VDC Phantom Power Supply
The phantom power supply is also exter-
nal and is plugged into this hole
