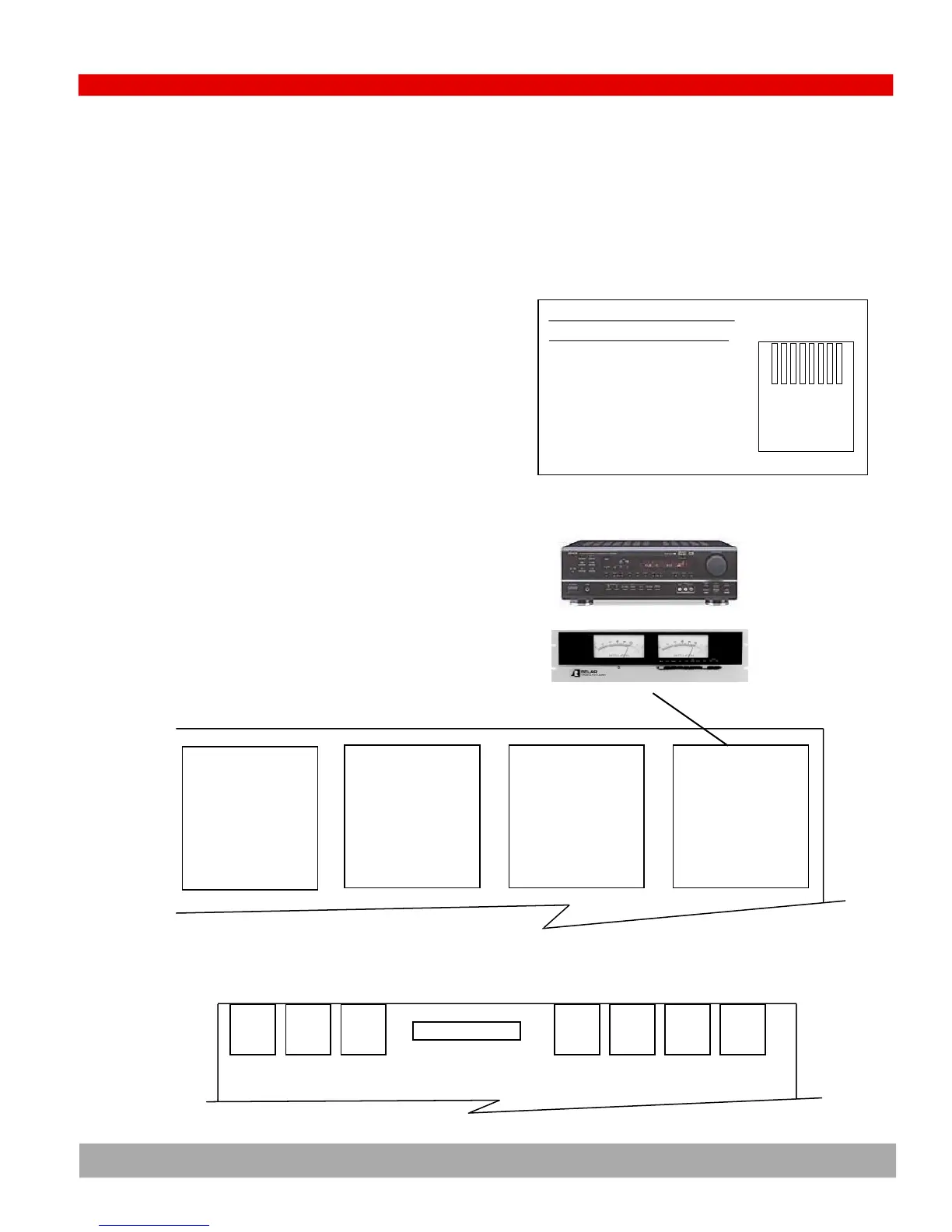

I N S TA L L A TI O N I N S T R U C TI O N S
External Monitor Input Wiring
The console has an external audio input for the monitor system. It is usually connected to an off air signal for the radio sta-
tion from a radio tuner or modulation monitor. The external input has input for both stereo balanced (+4dBU) and stereo unbalanced
(-10dBu) inputs. The balanced input has level trim pots. The unbalanced input is fixed for -10dBu consumer levels.
4.11
Main Console Outputs
Monitor Inputs and Outputs
Output Module (MARC-OB)
TOP REAR VIEW OF THE OUTPUT MODULE
Tuner or Off Air
Monitor Output
1
2
3
4
5
6
7
8
Left (+) out
Left (-) out
Right (+) out
Ground
nc
Right (-) out
nc
nc
Monitor Output
1
2
3
4
5
6
7
8
Left (+) out
Left (-) out
Right (+) out
Ground
nc
Right (-) out
Cue out to amp
nc
Earphone Output
1
2
3
4
5
6
7
8
Left (+) in
Left (-) in
Right (+) in
Ground
nc
Right (-) in
Left -10dBu input
Right -10dBu input
External Monitor In
1
2
3
4
5
6
7
8
Mute Relay
Mute Relay
Cue Input (-10dBu)
nc
Talkback (12V)
Talkback (logic)
(+) Talkback in
(-) Talkback in
Miscellaneous IO
PIN Wire Color Audio
1 White w/Orange Stripe Left (+)
2 Orange w/White Stripe Left (-)
3 White w/Green Stripe Right (+)
4 Blue w/White Stripe Ground
5 White w/Blue Stripe
6 Green w/White Stripe Right (-)
7 White w/Brown Stripe
8 Brown w/White Stripe
1,2,3,4,5,6,7,8
RJ45
EIA/TIA 568B WIRING STANDARD COLORS
To Next Page
