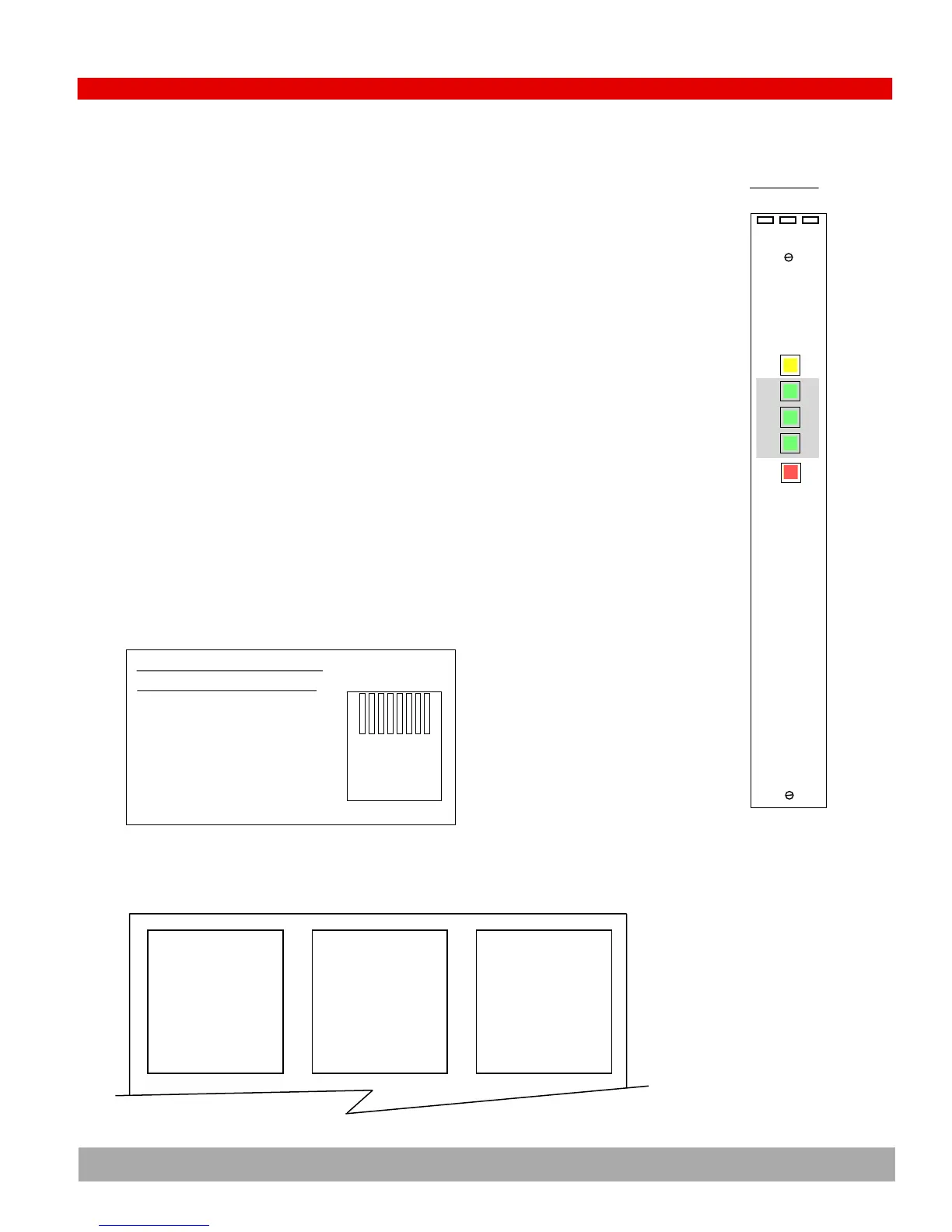

I N S TA L L A TI O N I N S T R U C TI O N S
The Studio Monitor Module Wiring
4.19
5) Studio Monitor Board (MARC-STM)
1
2
3
4
5
6
7
8
Left (+) out
Left (-) out
Right (+) out
Ground
nc
Right (-) out
Mute Logic
Mute Logic
Earphone Output
1
2
3
4
5
6
7
8
Left (+) out
Left (-) out
Right (+) out
Ground
nc
Right (-) out
nc
nc
Monitor Output
1
2
3
4
5
6
7
8
Left (+) in
Left (-) in
Right (+) in
Ground
nc
Right (-) in
nc
nc
External Monitor In
MUTE LOGIC
The ‘Mute Logic’ is a dry contact sustained reed relay closure with a max
current of 50 milliamps. The closure should be used to drive an external
lamp driver (not drive a lamp directly).
Connectors
Hdp Mon Ext
PIN Wire Color Audio
1 White w/Orange Stripe Left (+)
2 Orange w/White Stripe Left (-)
3 White w/Green Stripe Right (+)
4 Blue w/White Stripe Ground
5 White w/Blue Stripe
6 Green w/White Stripe Right (-)
7 White w/Brown Stripe
8 Brown w/White Stripe
1,2,3,4,5,6,7,8
RJ45
EIA/TIA 568B WIRING STANDARD COLORS
