S E R V I C E & M A I N T E N A N C E
PC-USB module
6.8
USB chip
PCM2900
12MHz
clock
‘B’ input
mic preamp
SSM2019
2N3904
RS232 logic
drivers
A/B Logic
CD4049
Pgm/Aud Logic
CD4049
Utl/CueLogic
CD4049
Play Filter amp
NE5532
Fader amp
NE5532
Channel
On-off
Logic
CD4049
Cue bus
assign switch
CD4053
Pgm/Aud/Utl bus
assign switch
CD4053
Pgm/Aud/Utl bus
assign switch
CD4053
Record
input amp
NE5532
The MARC-15 console is designed for modular
replacement rather than component level field
repair. The console is modular and modules can be
replaced for immediate repair. The power supply is
external and plug in. ICs are plug in. The rotary
faders are plug in.

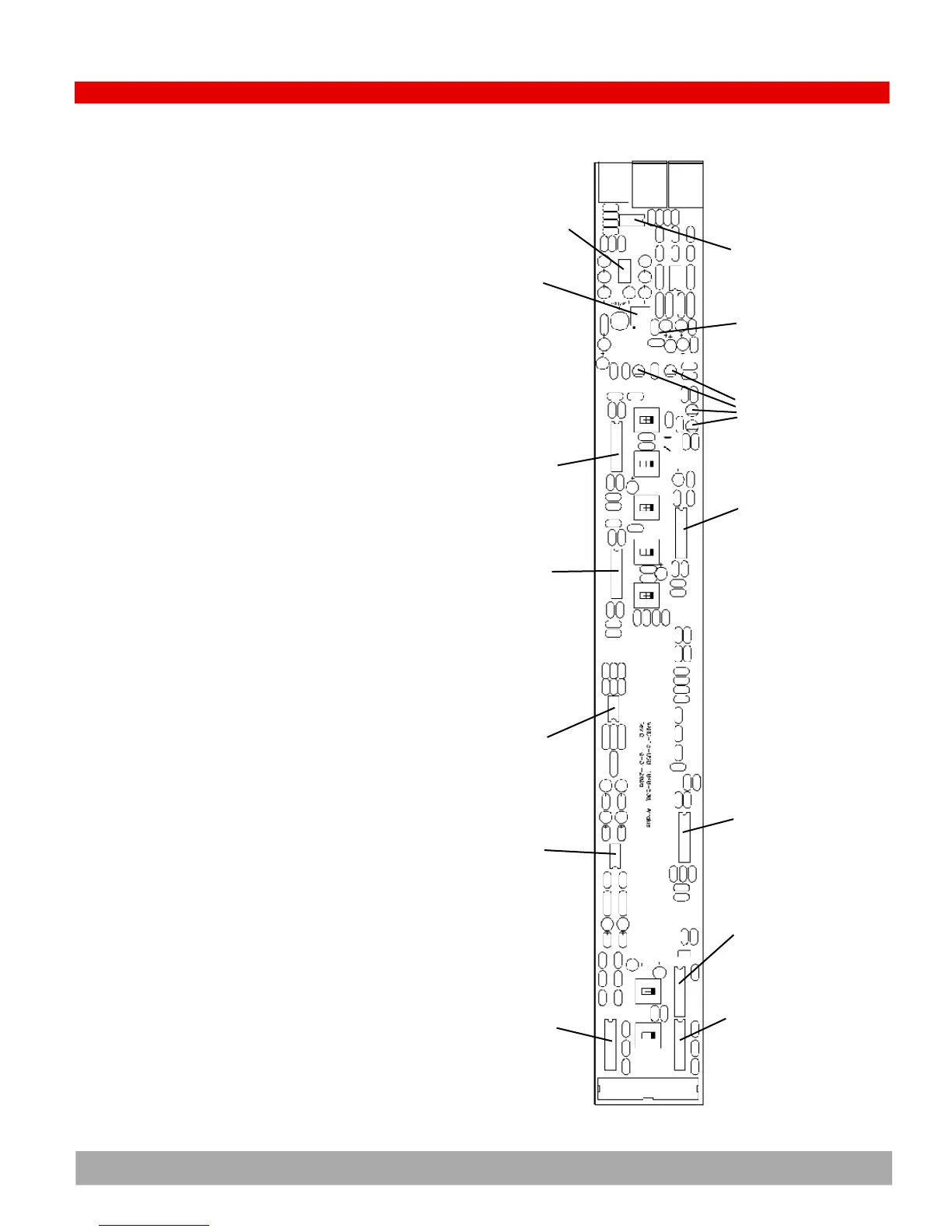

For board level part replacement, this page displays
a physical board layout with descriptions of the
functions of each IC. For repair, simply replace the
ICs associated with the function that has failed on
the module.
