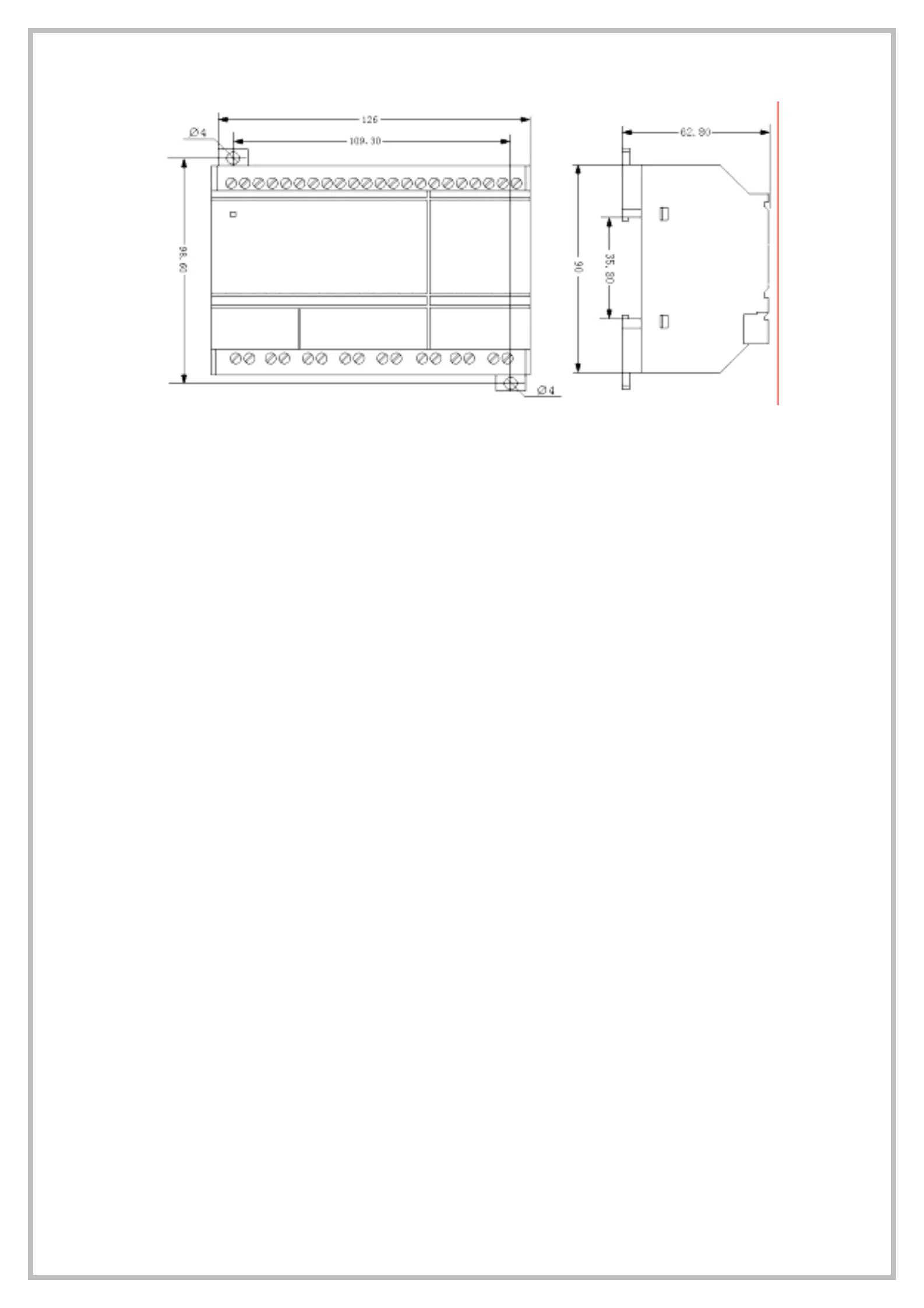

Fig. 2.5 Installation Dimensions of SR-20 and SR-RC Series (MM)

2.2 Wiring of SR

A screwdriver with a spade tip width of 3mm is used for the wiring of FABs. The maximum

cross sections of the wires that can be inserted into the terminals are determined according to

the following sizes:

¡ù 1x2.5mm2

¡ù 2x1.5mm2

2.2.1 Connection Power Supply

1. SR-12MRA, SR-22MRA, SR-20ERA, SR-VPA, SR-RCA are AC types. The rated power

supply requirement for them is 110-240VAC, 50/60HZ. The range of the grid voltage is

110VAC to 220VAC. The consumption power of SR-12MRA and SR-22MRA is 3W and

5W representatively.

2. SR-12MRD, SR-12MTD, SR-22MRD, SR-22MTD, SR-20ERD, SR-20ETD, SR-VPD,

SR-VCD are DC types. The supplying DC voltage is 24VDC. The range of the voltage is

12VDC to 24VDC. The consumption power of SR-12MTD and SR-22MTD is 2W both.

The power connection for FABs is as shown in the following drawings:
