3.2.13 SSEQ (Step Sequence)

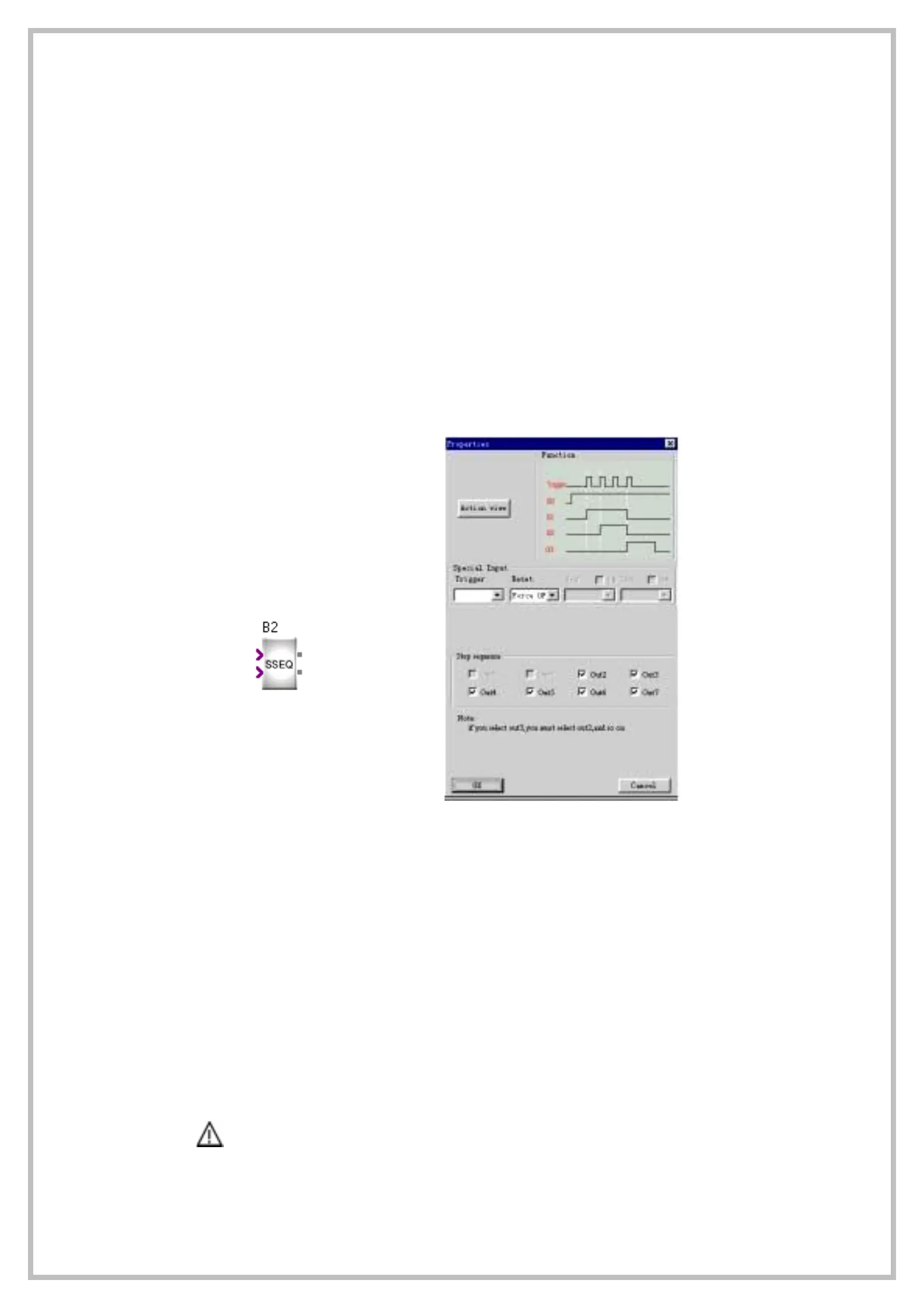

Line diagram/ Symbol in
SR
Pin Description
TRG Input
There are totally 8 output points (Output 0-7) in the SSEQ
function block. Among them Output 1-7 will output the
ON state in time sequence one by one. This function block
is activated by TRG signal.
R Input Reset signal will let the outputs become OFF state.
Q Output
There are 6 outputs can be selected, and this instruction
can offer 6 status outputs (Output 2-7).
The function of SSEQ is as follows£º
Fig. 3.8
When you select a SSEQ instruction in the program and double click it, it will
display as above figure. At this time you can select the output points. If you select
Output 3, output 2 will be selected automatically, the same way for output 4, output
5…output 8. It means that if you select the behind one, then the previous one will be
selected automatically.
As shown in Fig. 3.8, every time when TRG has a pulse, it will make one
output become 1. And when all the selected outputs are ON. The next TRG pulse will
make all the selected output be OFF one by one in turn. But Output 0 will retain the
ON state. Then the loop will start again.
Note£ºThe Output 0 and Output 1 is fixed and are forbidden to change by the
users.
