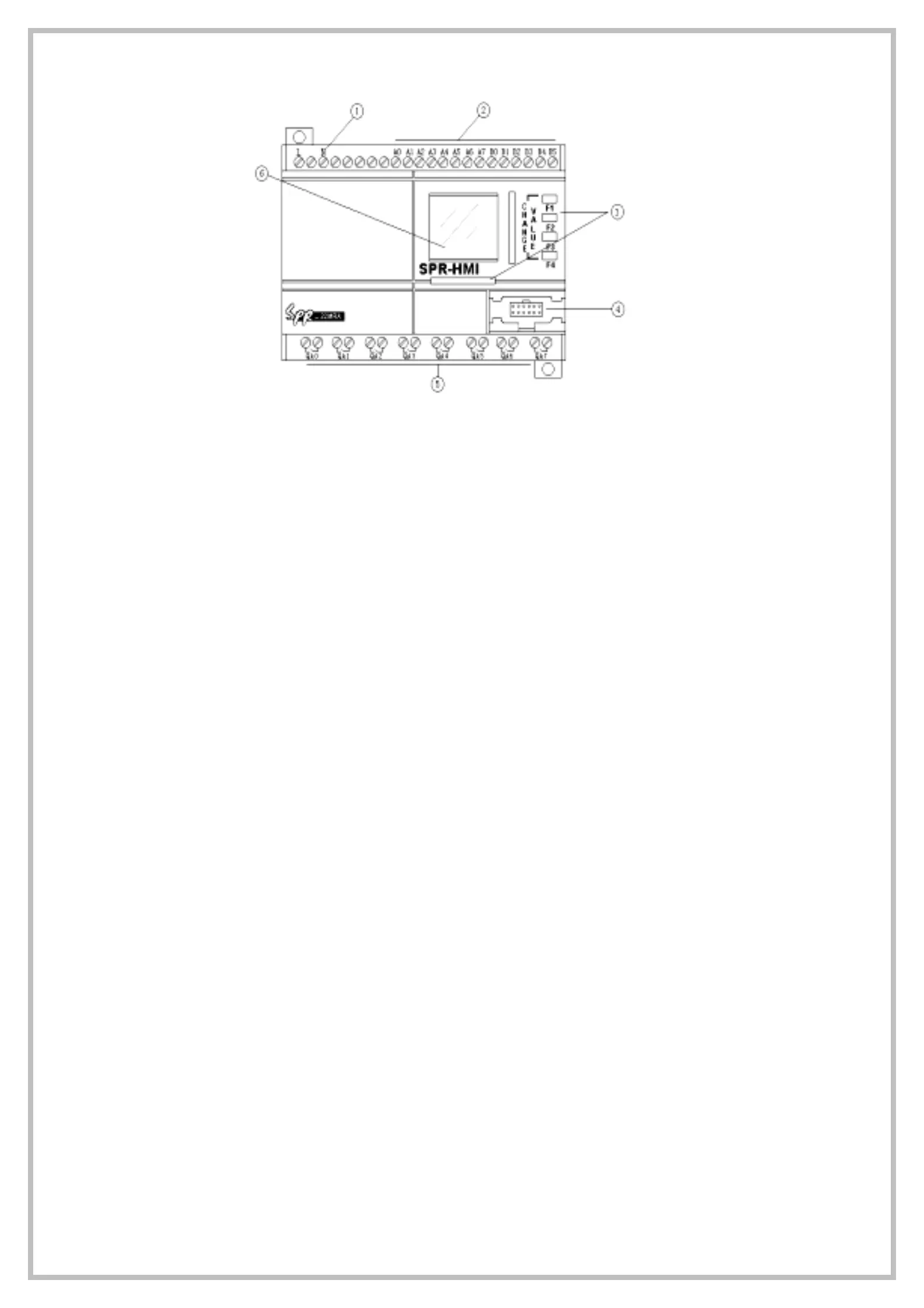

Fig.1.2 SR 22 Point Main Machine

1£®Input of Power (AC or DC) (AC110-220V), (DC12-24V)

2£®Input Wiring Terminal

3£®SR-HMI or SR-WRT

4£®Communication Interface

5£®Output Wiring Terminal (Output of relay or electronic transistor)

6£®LCD Display Panel

1.2 Naming Rules of SR Series

SR¡ª¡ª¡ªXX M/E R/T A/D C/K

Super Relay

Relay (Type Name)

I/O Points

Main/Extension

Relay/Transistor

AC/DC (Power Type)

Real-time Clock Function

Real-time Clock and Shutoff Retaining Function

Note: M means main machine, E means extension module

R means relay output, T means transistor output

A means AC type, D means DC type

C means with real-time clock,

K means with real-time clock and shutoff retaining
