Layout
15
6

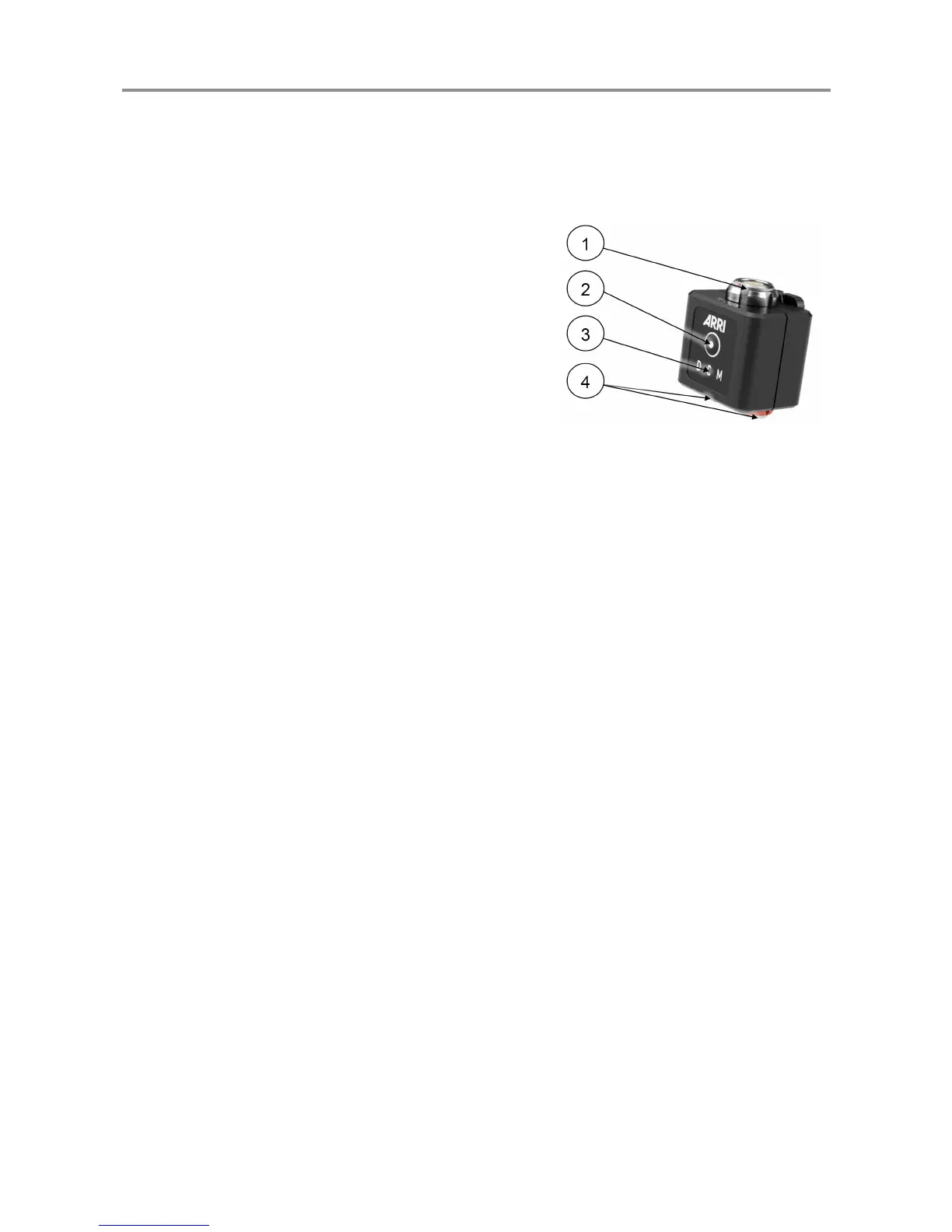

Layout
1
Serial connector
2
Setup button
3
Distance, Camera, Motor indicator
4
LBUS connectors
6.1
LCUBE status
The LED of the SETUP button indicates the current adaptor status.
LED
Status
Solid green
Device is ready
, no warnings
Green/red flashing
No serial communication
Solid red
Adaptor power supply is below 1
1V
Red flashing
No LBUS data is available
Blue flashing
Device is executing the bootloader
14
16
Table of Contents
Default Chapter
2
Revision History
2
Table of Contents
6
1 For Your Safety
7
2 Audience and Intended Use
9
3 Scope of Delivery and Warranty
10
4 Lbus
11
5 Introduction
12
Sample Setups
13
6 Layout
15
LCUBE Status
15
Setup Button
16
7 Operation
17
Distance
17
Camera
17
Motor
17
8 Software Update
18
9 Appendix
19
Part Numbers
19
Pinouts
23
Compatibility
24
Distance Measuring Devices
24
Cameras
24
Specifications
24
Interface Standards
25
Dimensions and Weight
25
Service Contacts
26
International Declarations
27
