Appendix
23
9.2

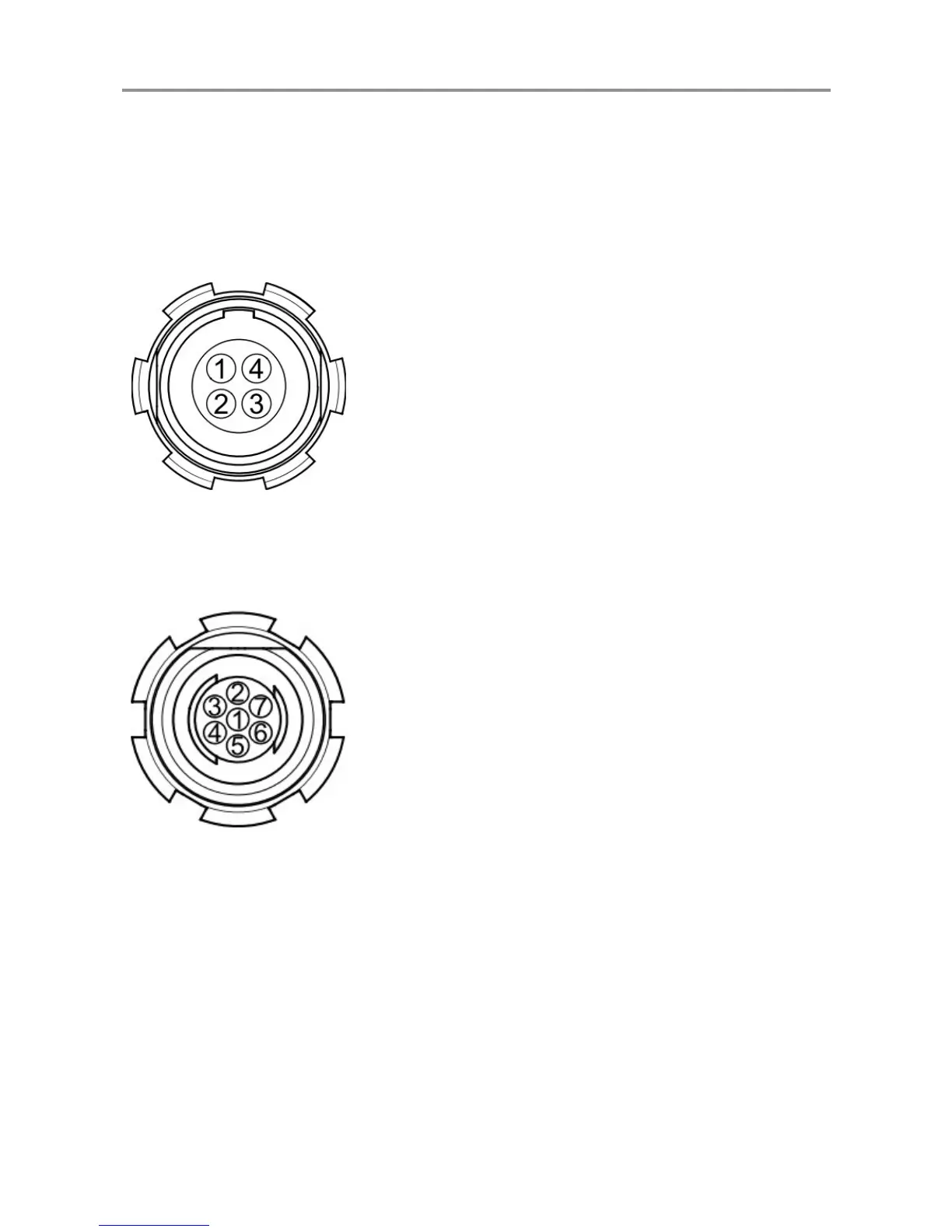

Pinouts
LBUS connector
1
GND
Ground
2
CAN-L
CAN bus
3
V-BA
T
Power supply in-/output
4
CAN-H
CAN bus
Serial connector
1
GND
Ground
2
V-IN
Battery supply in-/output
3
TxD
Tx-
RXTX-N
RS232
RS422
RS485
4
RxD
RX+
RXTX-P
RS232
RS422
RS485
5
TX+
RS422
6
RX-
RS422
7
CABLE-ID
Analog input
22
24
Table of Contents
Default Chapter
2
Revision History
2
Table of Contents
6
1 For Your Safety
7
2 Audience and Intended Use
9
3 Scope of Delivery and Warranty
10
4 Lbus
11
5 Introduction
12
Sample Setups
13
6 Layout
15
LCUBE Status
15
Setup Button
16
7 Operation
17
Distance
17
Camera
17
Motor
17
8 Software Update
18
9 Appendix
19
Part Numbers
19
Pinouts
23
Compatibility
24
Distance Measuring Devices
24
Cameras
24
Specifications
24
Interface Standards
25
Dimensions and Weight
25
Service Contacts
26
International Declarations
27
