Arrow ET2025 - ASSEMBLY; OPERATION; Loading Staples and Brad Nails; Cleaning Staple Chamber

5
BACK TO
INDEX
ASSEMBLY
1 MAKE SURE YOU HAVE READ ALL SAFETY INSTRUCTIONS.
2 This tool comes completely assembled. There is no assembly required.
Never load staples and nails at the same time
Loading your tool with staples.

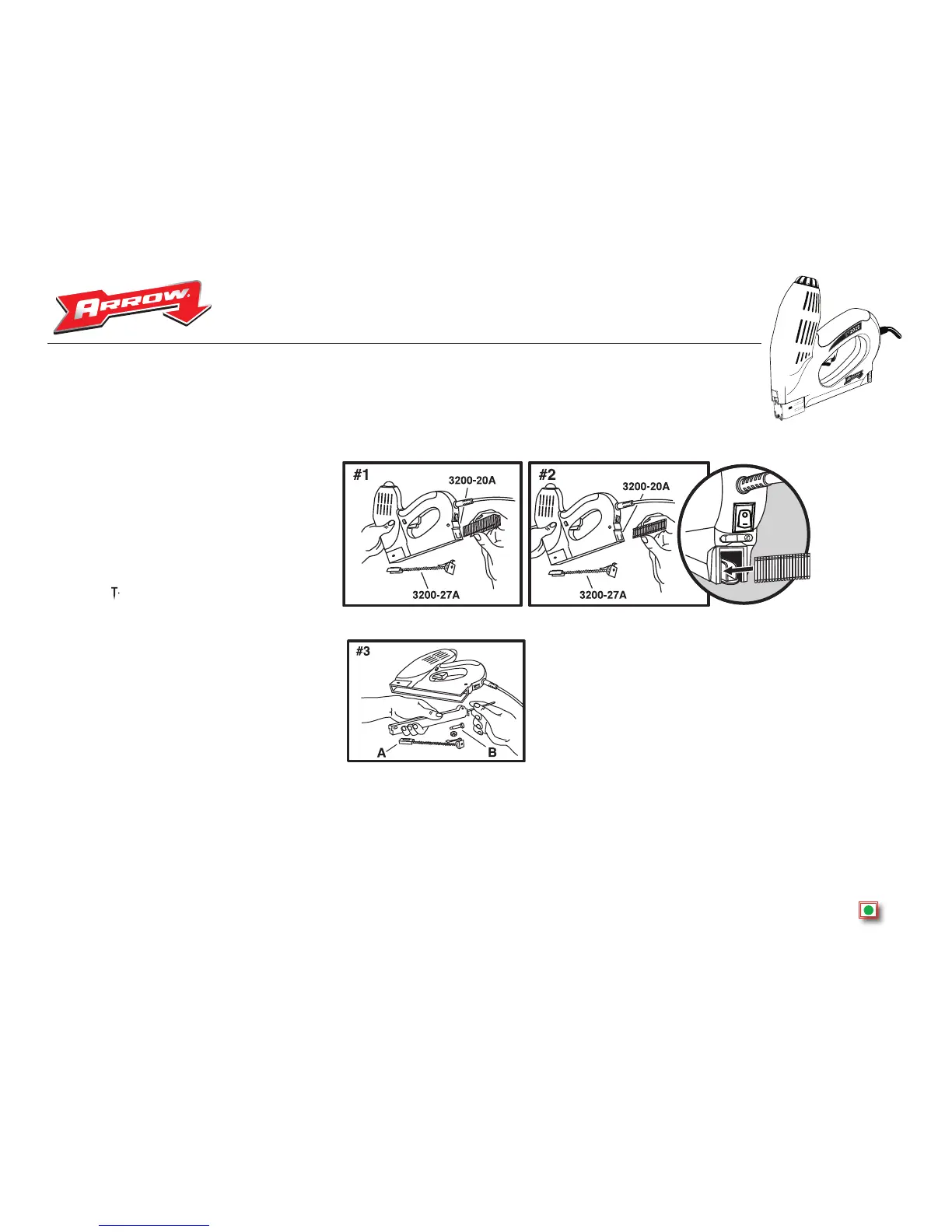

1. Remove pusher rod from machine ( FIG.#1 ).
2. Insert strip of staples into magazine.
3. Replace pusher rod.
Loading your tool with Brad nails.
1. Remove pusher rod from machine (FIG.#2 ).
2. Insert strip of nails into left channel of magazine.
(side with: )
3. Replace pusher rod.
Attempting to force brad nails into right side of
staple chamber may cause damage to the tool.
Cleaning Staple Chamber.
1. Remove pusher rod “A”( FIG.#3 ).
2. Remove screw & nut from hole “B”.
3. Remove entire magazine from housing.
OPERATION
