Arrow ET501C - Operation; Firing Your Tool; How to Determine Proper Staple Leg Size

1/4 " 6mm
5/16 " 8mm
3/8 " 10mm
1/2 " 12mm
9/16 "
14mm
GENUINE
T50
STAPLES

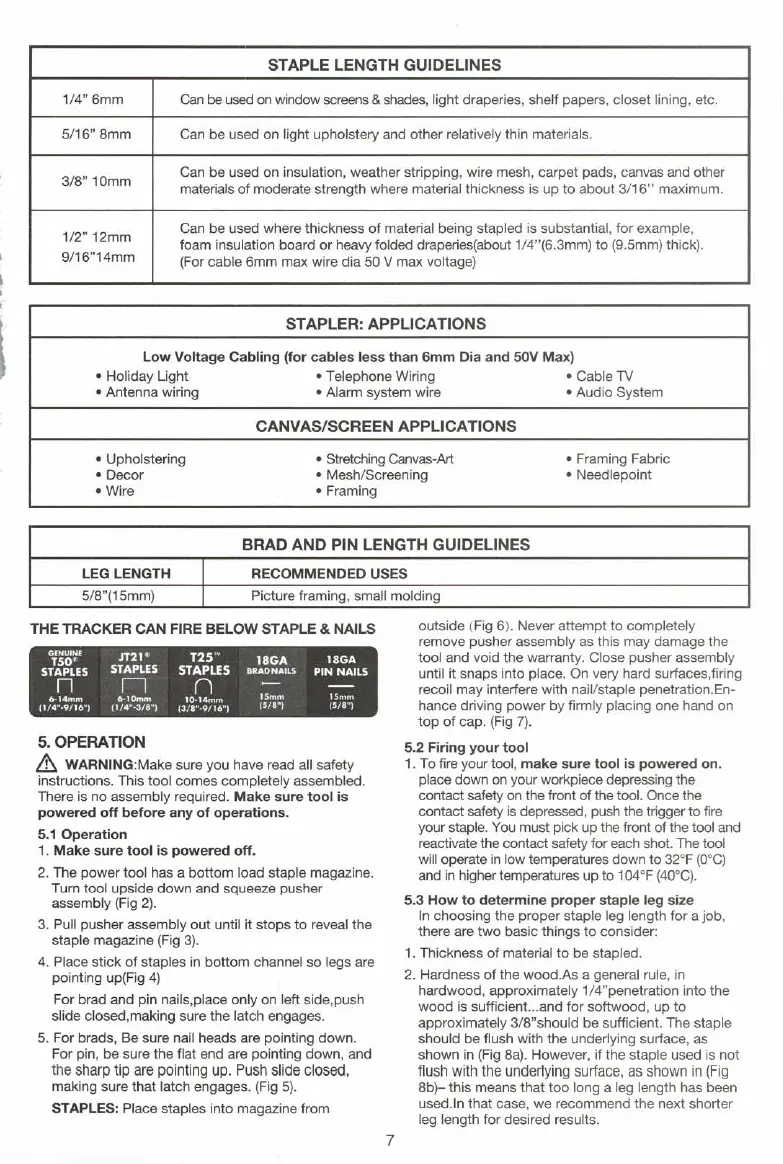

STAPLE LENGTH GUIDELINES
Can be used on window screens & shades , light draperies , shelf papers , closet lining , etc.
Can be used on light upholstery and other relatively thin materials .
LEG
LENGTH
5/8 " (
15mm
)
Can be used on insulation , weather stripping , wire mesh , carpet pads , canvas and other
materials of moderate strength where material thickness is up to about 3/16 " maximum .
STAPLER : APPLICATIONS
Low Voltage Cabling ( for cables less than 6mm Dia and 50V Max )
• Telephone Wiring
• Alarm system wire
CANVAS
/ SCREEN
APPLICATIONS
Can be used where thickness of material being stapled is substantial , for example ,
foam insulation board or heavy folded draperies ( about 1/4 " ( 6.3mm ) to ( 9.5mm ) thick ) .
( For cable 6mm max wire dia 50 V max voltage )
•
Holiday
Light
•
Antenna
wiring
•
Upholstering
•
Decor
•
Wire
JT219
STAPLES
THE TRACKER CAN FIRE BELOW STAPLE & NAILS
T25
™
STAPLES
6-14mm 6-10mm
10-14mm
( 1/4 " -9/16 " )
( 1/4 " -3/8 "
)
( 3/8 " -9/16 " )
BRAD AND PIN LENGTH GUIDELINES
RECOMMENDED USES
Picture framing , small molding
18GA
BRAD NAILS
Stretching Canvas - Art
• Mesh / Screening
•
Framing
15mm
( 5/8 " )
5.1
Operation
1. Make sure tool is powered off .
18GA
PIN
NAILS
15mm
( 5/8 " )
5. OPERATION
A WARNING : Make sure
you have read all safety
instructions . This tool comes completely assembled .
There is no assembly required . Make sure tool is
powered off before any of operations .
2. The power tool has a bottom load staple magazine .
Turn tool upside down
and squeeze pusher
assembly ( Fig 2 ) .
3. Pull pusher assembly out until it stops to reveal the
staple
magazine ( Fig 3 ) .
4. Place stick of staples in bottom channel so legs are
pointing
up ( Fig 4 )
For brad and pin nails , place only on left side , push
slide closed ,
making
sure
the latch
engages
.
5. For brads , Be sure nail heads are pointing down .
For pin , be sure the flat end are pointing down , and
the sharp tip are pointing up . Push slide closed ,
making sure that latch engages . ( Fig 5 ) .
STAPLES
: Place
staples into
magazine from
7
• Cable TV
•
Audio
System
•
Framing
Fabric
• Needlepoint
outside ( Fig 6 ) .
Never attempt to
completely
remove pusher assembly as this may damage the
tool and void the
warranty . Close pusher
assembly
until it snaps into place . On very hard surfaces , firing
recoil may interfere with nail / staple penetration.En
hance driving power by firmly placing one hand on
top
of cap . ( Fig 7 ) .
5.2 Firing
your tool
1. To fire your tool , make sure tool is powered on .
place down on your workpiece depressing the
contact safety on the front of the tool . Once the
contact safety is depressed , push the trigger to fire
your
staple . You must pick up
the front of the tool and
reactivate the contact safety for each shot . The tool
will operate in low temperatures down to 32 ° F ( ° C )
and in higher temperatures up to 104 ° F ( 40 ° C ) .
5.3 How to
determine
proper
staple
leg size
In choosing the proper staple leg length for a job ,
there are two basic things to consider :
1.
Thickness
of
material to be stapled .
2. Hardness of the
wood.As a general rule , in
hardwood , approximately 1/4 " penetration into the
wood is sufficient ... and for softwood , up to
approximately 3/8 " should be sufficient . The staple
should be flush with
the underlying
surface , as
shown in ( Fig 8a ) . However , if the staple used is not
flush with the underlying surface , as shown in ( Fig
8b ) - this means that too long a leg length has been
used . In that case , we recommend the next shorter
leg
length
for
desired
results .
