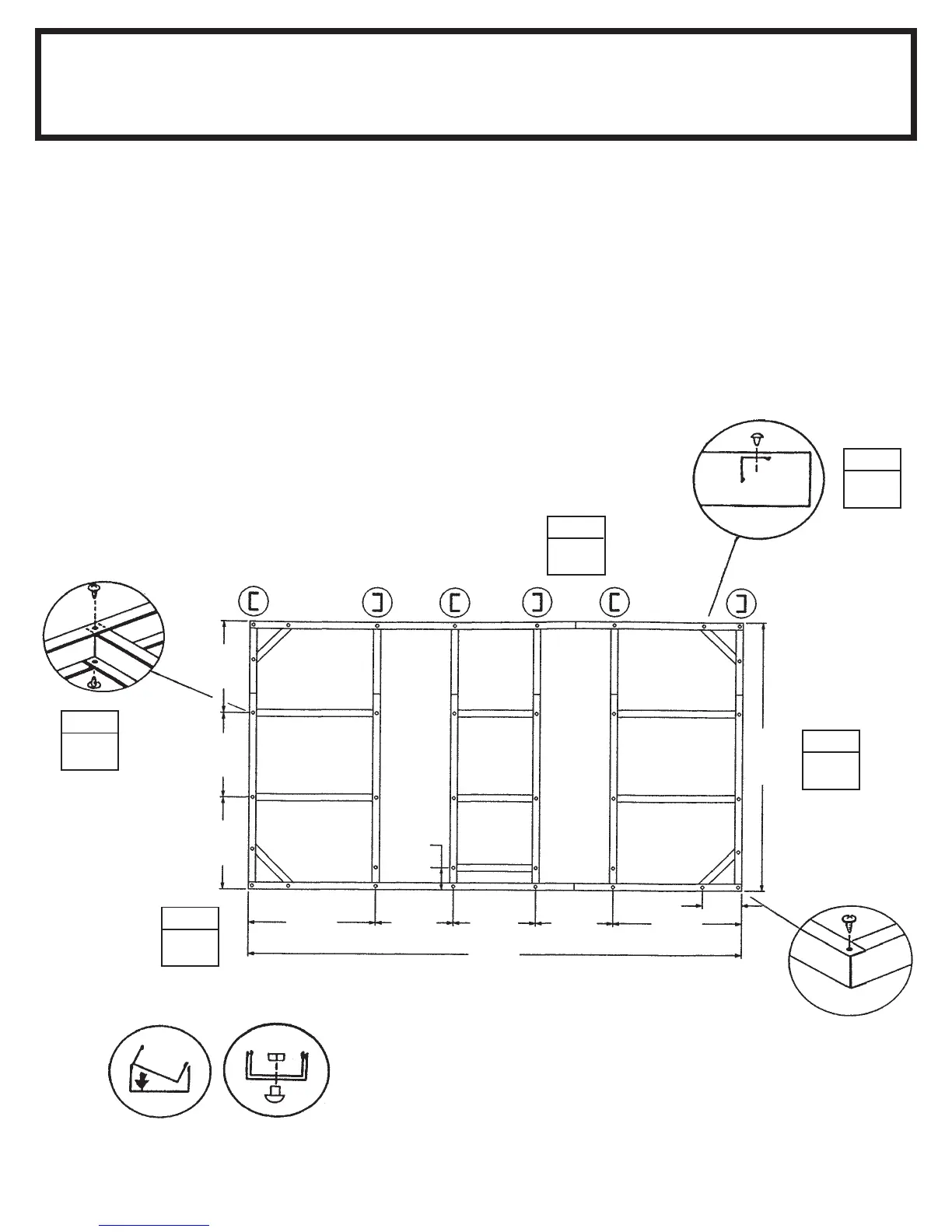

8 x 6
1 Snap front & rear channels 9216 together as
shown. Slide channels to match correct overall
dimension shown. Bolt together where holes line
up. Make two complete assemblies.
2 Snap side channels 9217 together as shown.
Slide channels to match correct overall dimension
shown. Bolt together where holes line up. Make six
complete assemblies.
3 Fasten two front & rear channels to two side
channels using screws on the top flanges to form a
rectangle. Attach the four remaining side channels
at the dimensions shown, with flanges facing direc-
tion shown, using screws.
5
4 Attach cross channels 9215 following
dimensions shown, using screws. Fasten cross
channels 9214 to middle section in the same man-
ner. Carefully turn unit over and fasten opposite
side connection with screws.
5 Fasten corner angles 0572 to corners of unit at
the 18" 45,7 cm dimension using screws.
STEP
1
STEP
3
STEP
4
STEP
2
FRONT
9216
9215
0572
9216
9217
0572
18"
45,7cm
20 9/16"
52,2 cm
6 7/16"
16,4 cm
31 9/16"
80,2 cm
96 9/16"
245,3 cm
6 7/16"
16,4 cm
31 9/16"
80,2 cm
9217
9217
9217
9216
STEP
9216
9215
9215
9215
9217
0572
0572
9214
9214
9214
9217
24 3/4"
62,9 cm
18 1/4"
46,4 cm
24 3/4"
62,9 cm
67 13/16"
172,2 cm
4 11/16"
11,9 cm
