Arrow FDN106 - Page 5

4 x 10

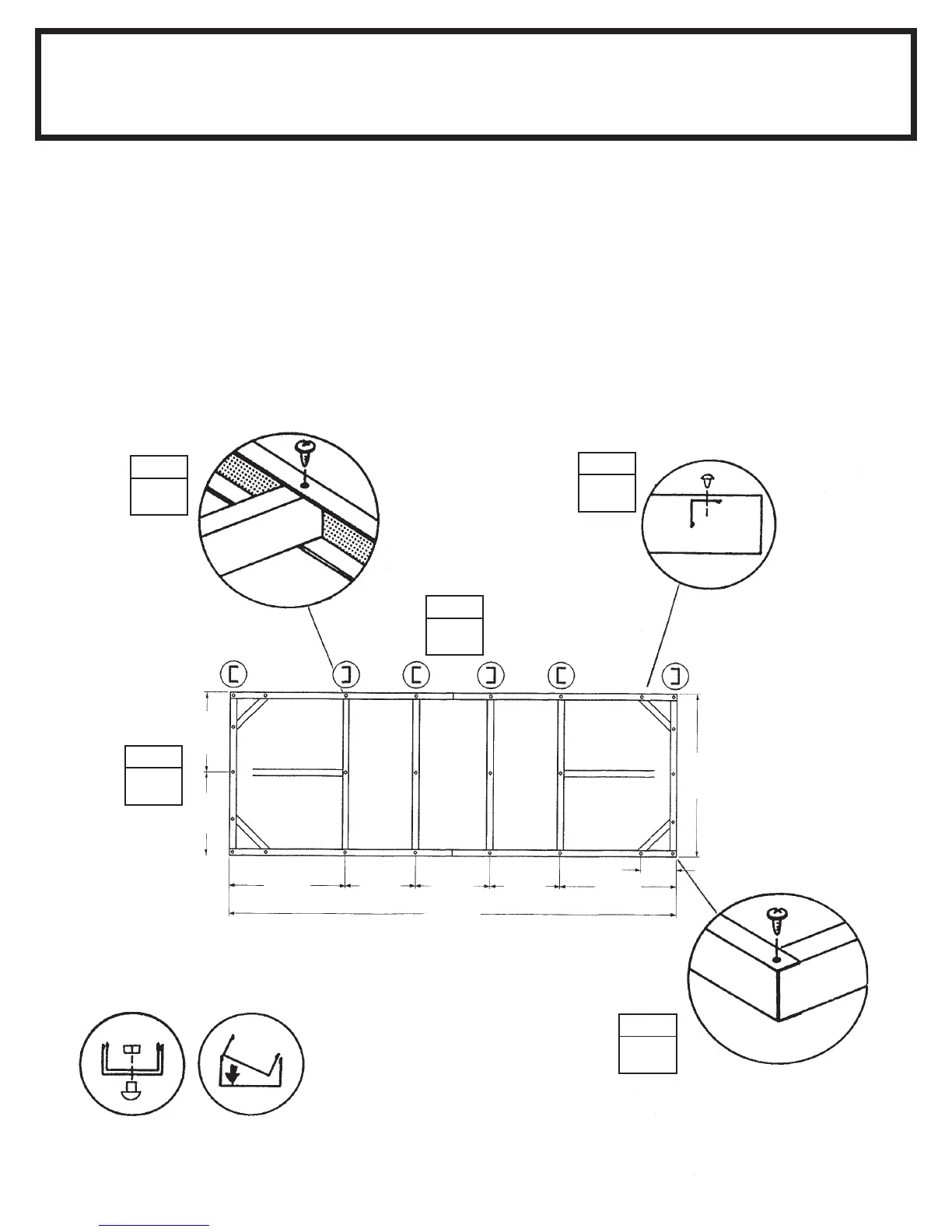

1 Snap front & rear channels 9216 together as
shown. Slide channels to match correct overall
dimension shown. Bolt together where holes line
up. Make two complete assemblies.
2 Fasten two front & rear channels to two side
channels 9217 using screws on the top flanges to
form a rectangle. Attach the four remaining side
channels at the dimensions shown, with flanges
facing direction shown, using screws.
5
3 Attach cross channels 9215 following
dimensions.
4 Carefully turn unit over and fasten opposite
side connections with screws.
5 Fasten corner angles 0572 to corners of unit at
the 18" 45,7 cm dimension using screws.
STEP
1
STEP
3
STEP
4
STEP
2
STEP
0572
0572
9215
9217
9216
9216
9216
9217
0572
0572
9217
9217
9217
9217
9216
9215
FRONT
31 9/16"
80,2 cm
115 13/16"
294,2 cm
18 3/16"
46,2 cm
16 5/16"
41,4 cm
18 3/16"
46,2 cm
31 9/16"
80,2 cm
49 9/16"
125,9 cm
18"
45,7 cm
24 3/4"
62,9 cm
24 3/4"
62,9 cm
