Arrow FDN106 - Page 6

10 x 6

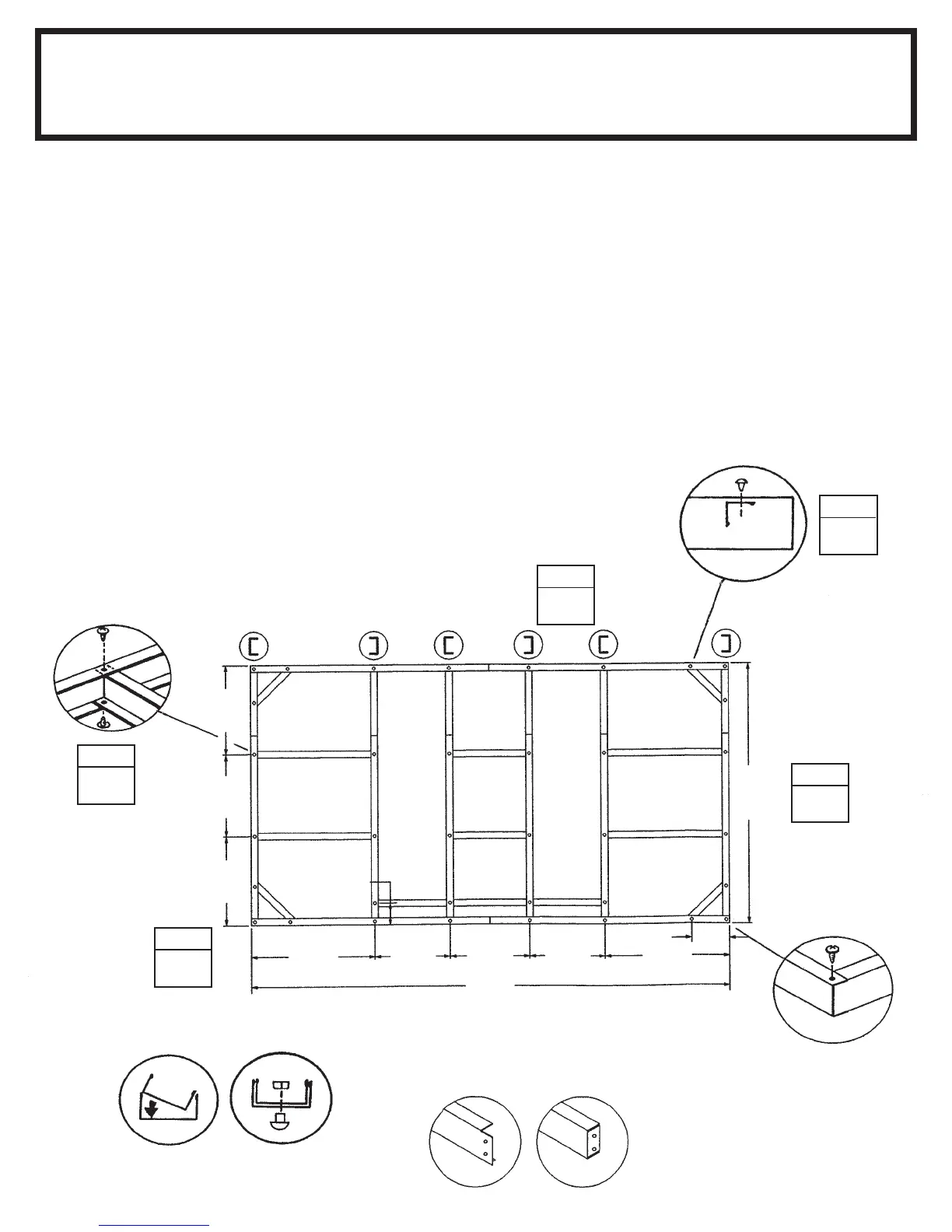

1 Snap front & rear channels 9216 together as
shown. Slide channels to match correct overall
dimension shown. Bolt together where holes line
up. Make two complete assemblies.
2 Snap side channels 9217 together as shown.
Slide channels to match correct overall dimension
shown. Bolt together where holes line up. Make six
complete assemblies.
3 Fasten two front & rear channels to two side
channels using screws on the top flanges to form a
rectangle. Attach the four remaining side channels
at the dimensions shown, with flanges facing direc-
tion shown, using screws.
5
4 Attach cross channels 9215 following
dimensions shown, using screws. Fasten cross
channels 9715 to next section, bend tabs on ends of
channels inward before installation with four bolts
and nuts. Fasten cross channels 9214 to middle
section using screws. Carefully turn unit over and
fasten opposite side connection with screws.
5 Fasten corner angles 0572 to corners of unit at
the 18" 45,7 cm dimension using screws.
