● Front Floor Assembly (1)
●●
●●
● 8946 Side Floor Frame (2)
●●
●●
● Rear Floor Assembly (1)
● Parts Needed For ●
Floor Frame
Step 5
B18
The floor frame must be square
and level or holes will not align.
18

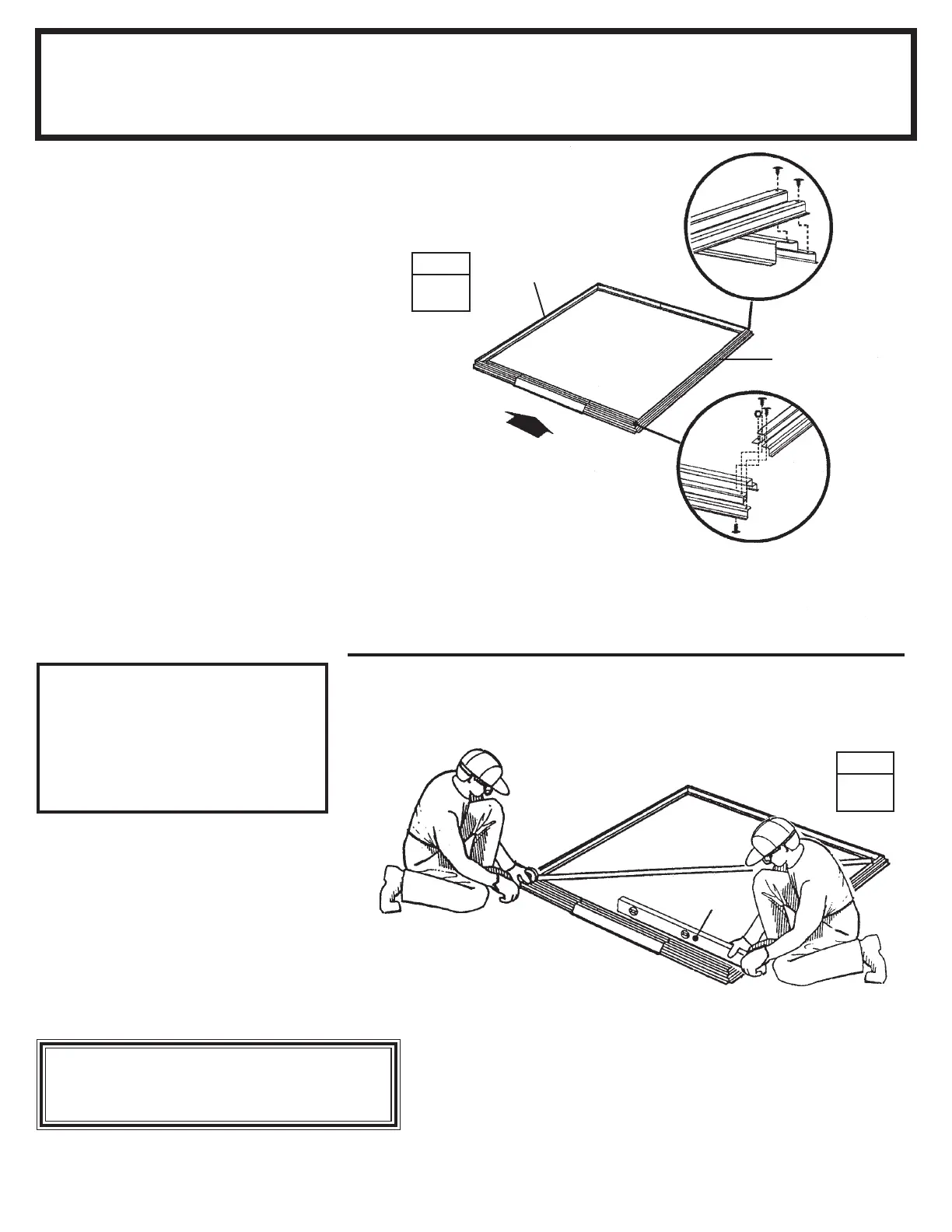

1 Assemble the four corners of the
floor frame using two screws at each
corner as shown. At the front corners
fasten bolts through from the bottom
with nuts on top.
2 Measure the floor frame diago-
nally. When the diagonal measure-
ments are equal, the floor frame is
square.
NOTE
If using a wood platform or
concrete slab do not fasten the
floor frames to your base at this
time. You will anchor the building
after it is erected.
STEP
1
9377
RIGHT
REAR
8946
8946
Level
RIGHT
FRONT
9379
STEP
2
When Diagonal Measurements
are Equal the Floor Frame
is Square.
FRONT
8946
8946
To Next Page
