Arrow NP8667 - Door Jamb Installation; Step 9: Door Jambs

22
● Parts Needed For ●
Door Jamb
Step 9
T22
●●
●●
● 9370 Door Jamb (2)
The door jambs reinforce the door
opening and provide an attractive
trim. Follow these steps for both
door jambs.

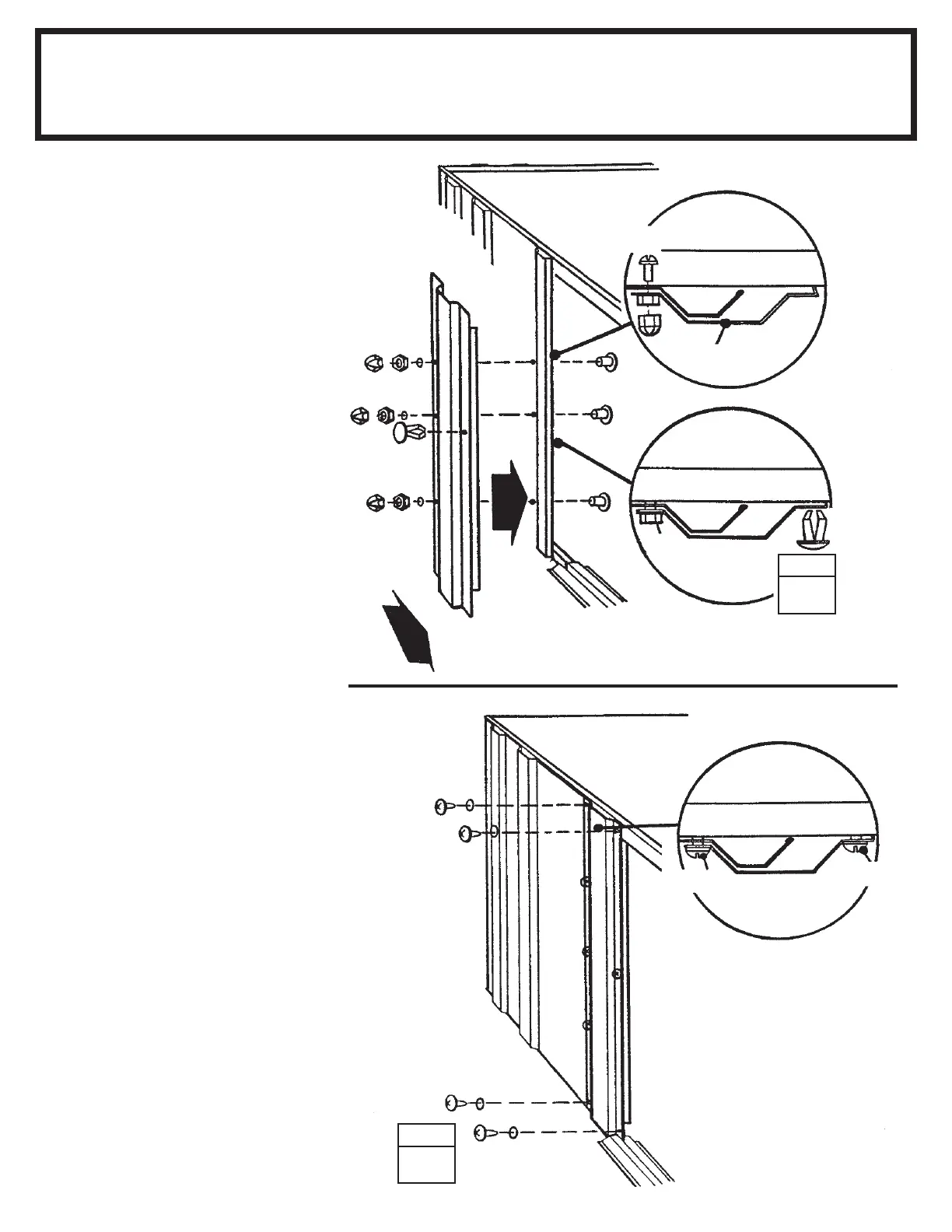

1 Fasten a door jamb to the front
panel with three bolts, nuts and acorn
nuts, as shown. Push a plug into
hole at center of jamb, closest to
door opening.
2 Fasten the top of the door jamb to
the door track with two screws. Do
the same for the bottom into frame.
Repeat steps 1 through 2 for the
opposite door jamb.
Cross-Section
Top View
1
STEP
INSIDE OF
BUILDING
2
STEP
Plug
9370
Hex Nut
Plug
Acorn Nut
TOP VIEW
Door Track
9370
(3) bolts
Bolt
FRONT
TOP VIEW
Door Track
TOP VIEW
Door Track
Screw
Screw
