Arrow SBS64 - Page 7

6
15 11113 Front/Rear Floor Frame 4
16 11114 Side Floor Frame 2
17 11115 Splice Post 4
18 11116 Corner Post 6
19 11117 Wall Panel 15
20 11118 Side Panel 10
21 11119 Front Wall Panel 5
22 11120 Right Door Jamb Top 1
23 80135 Right Door Jamb Bottom 1
24 11122 Left Door Jamb Top 1
25 80137 Left Door Jamb Bottom 1
26 11124 Header 2
27 11125 Rear Wall Angle 2
28 11126 Side Wall Angle 2
29 11127 Gable Angle 2
30 11128 Door Panel 2
31 11129 Door Panel 2
32 11130 Door Panel, Half 2
33 11131 Horizontal Door Brace 4
34 11132 Vertical Door Brace 2
35 11133 Vertical Door Brace 2
36 11134 Door Astragal 1
37 11135 Corner Splice Angle 3
38 11138 Door Jamb Support 4
39 11139 Diagonal Door Brace 4
40 11140 Gable Right 1
41 11141 Header, Front 2
42 11142 Roof Channel Right 2
43 11143 Roof Channel Left 2
44 11144 Fascia Trim 2
45 11145 Roof Panel 5
46 11146 Roof Panel Right 1
47 80131 Gable Left 1
48 80133 Roof Panel Left 1
49 11136 Stud Splice 2
50 11019 Channel Splice 2
Key
No.
Part
No.
Part
Description
Qty.
List
22,23
28,29,38
24,25
36
18
15,16
27
26
37
41
39
PARTS LIST...
7
07FX
49

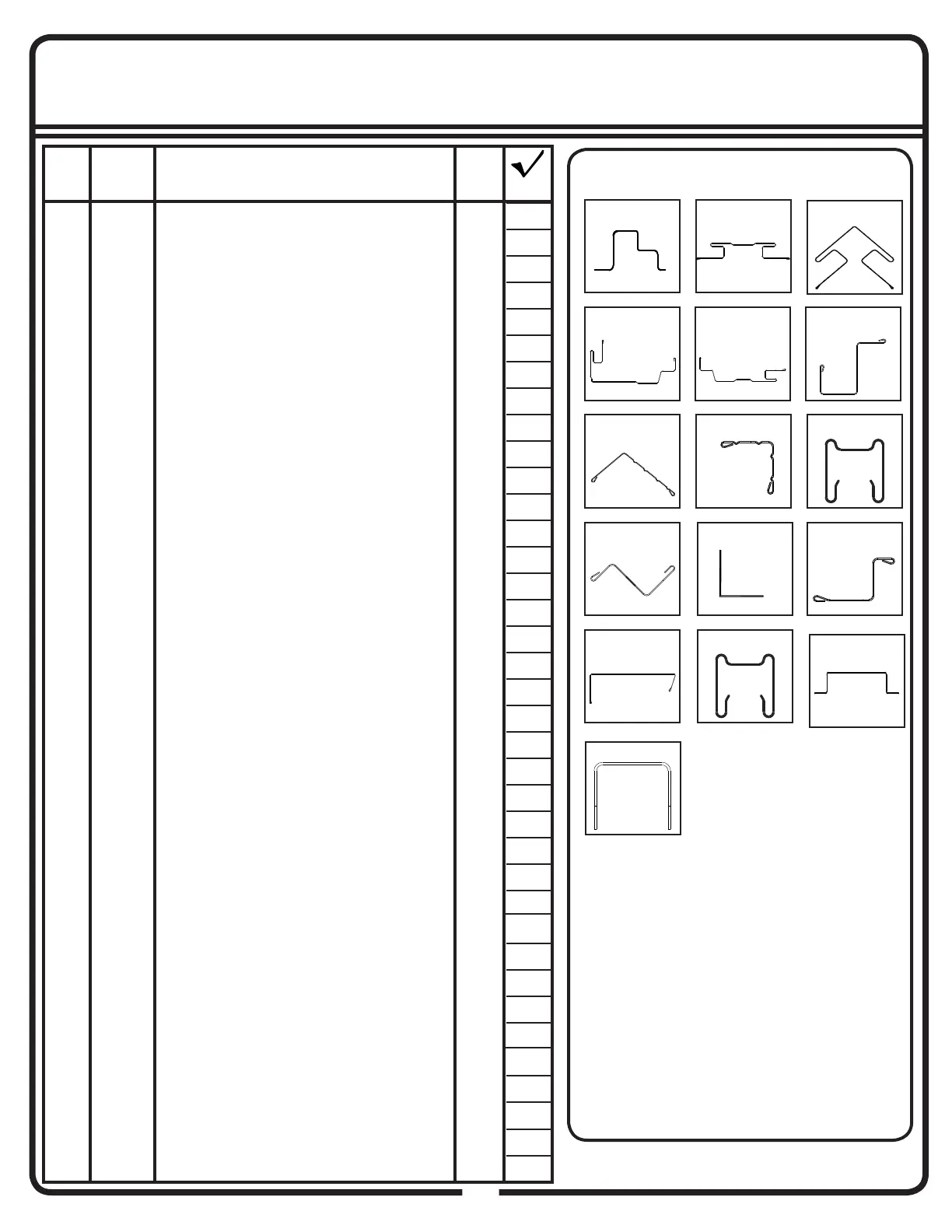

Selected End Views by Key No.
17
33,34,35
42,43,44
50
