Arrow VD1012-D1 - Page 28

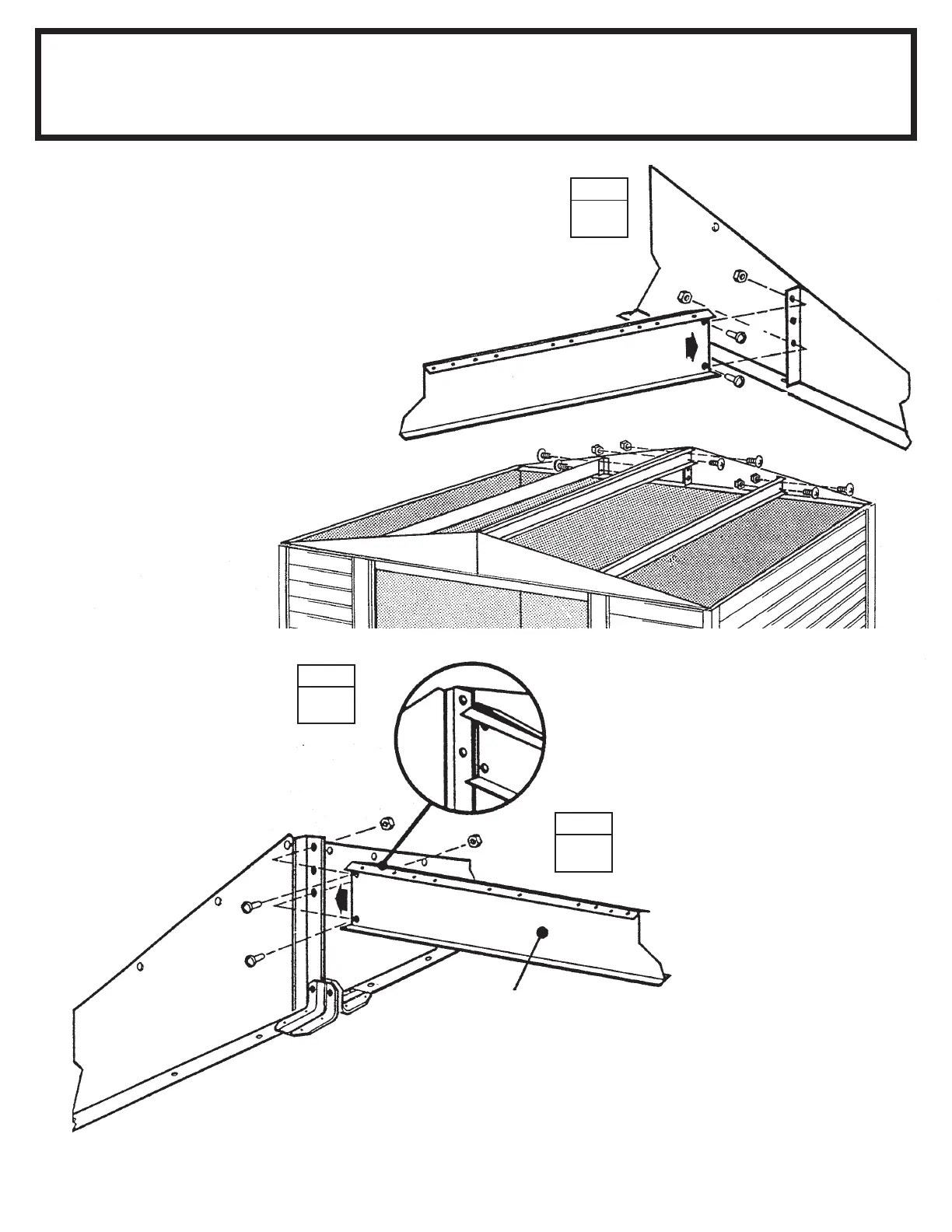

1 Spread the two halves of the double
roof beam and fasten to the gable
brace of the front gable.
2 Fasten the other end of the double
roof beam to the gable brace of the
rear gable.
3 Fasten the single roof beams,
small holes on top, as shown using
bolts and nuts.
●●
●●
● Main Roof Beam Assembly (1)
●●
●●
● Single Roof Beam Assemblies (2)
● Parts Needed For ●
Roof Beams
Step 15
SX28
28
STEP
2
STEP
1
STEP
3
Roof Beam (Double)
Roof Beam (Single)
Spread Two Halves Of
Roof Beams
