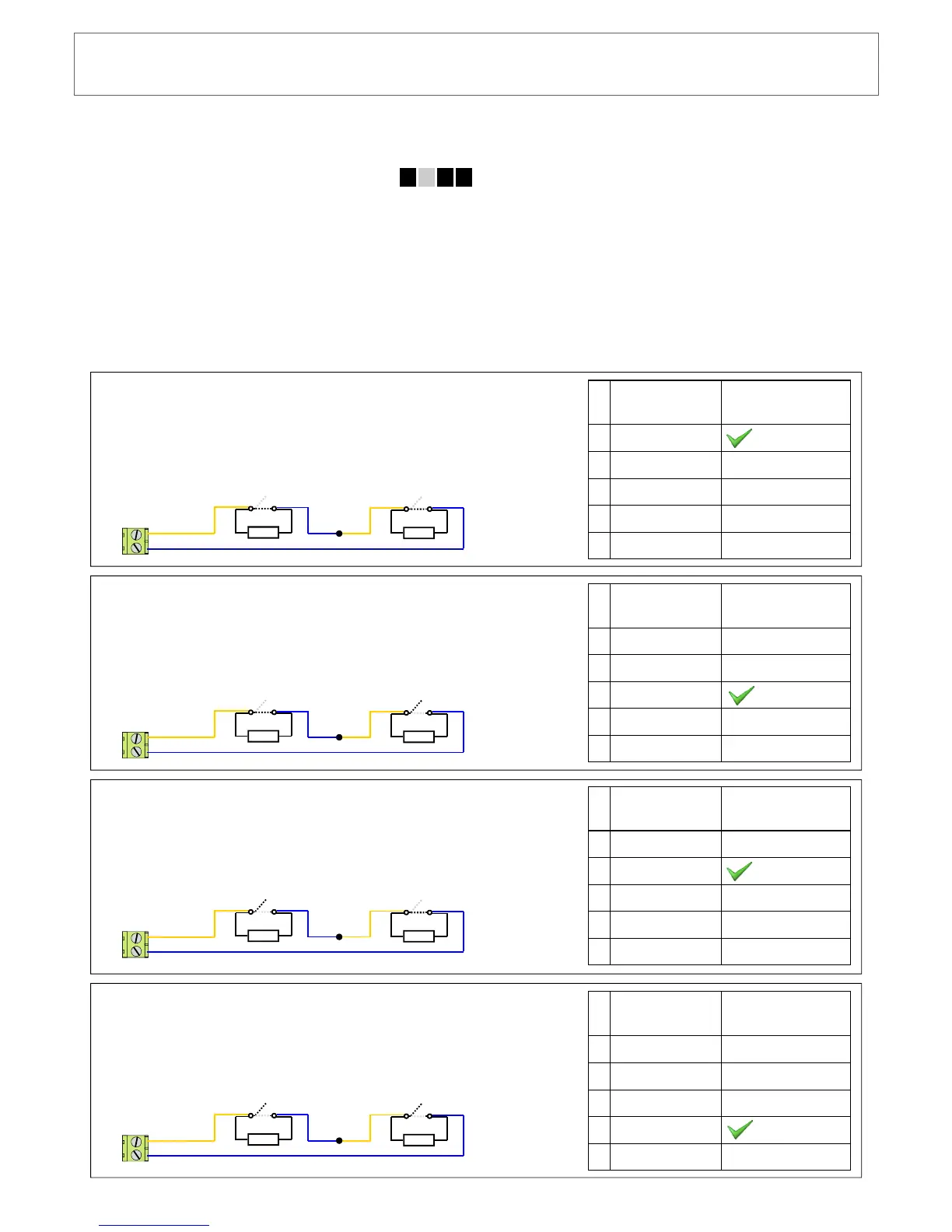

Arrowhead Elite S - Zone Doubling Type 15 Configuration; Type 15: PIR-A (N;C) and PIR-B (N;C) Wiring; Type 15: PIR (N;C) and Smoke (N;O) Wiring; Type 15: Smoke (N;O) and PIR (N;C) Wiring

Zone Doubling Type 15 (no tampers)
Voltage Range
Zone Type 15
P 125 E (Z1-8) E
0.0—1.10V SEALED
1.10—1.90V Low Zone Alarm
1.90—2.50V High Zone Alarm
A
B
C
E 3.30—5.00V High+Low Alarm
D 2.50—3.30V High+Low Alarm
N/C
PIR-A Alarm
Contacts
4K7
Z1-8
COM
N/C
PIR-B Alarm
Contacts
8K2
TYPE 15: Zone Doubling with No Tampers.
Low Zone = PIR-A (N/C)
High Zone = PIR-B (N/C)
N/C
PIR Alarm
Contacts
4K7
Z1-8
COM
N/O
Smoke Alarm
Contacts
8K2
Voltage Range
Zone Type 15
P 125 E (Z1-8) E
0.0—1.10V High Zone Alarm
1.10—1.90V High+Low Alarm
1.90—2.50V SEALED
A
B
C
E 3.30—5.00V High+Low Alarm
D 2.50—3.30V Low Zone Alarm
TYPE 15: Zone Doubling with No Tampers.
Low Zone = PIR (N/C)
High Zone = Smoke Detector (N/O)*
Voltage Range
Zone Type 15
P 125 E (Z1-8) E
0.0—1.10V Low Zone Alarm
1.10—1.90V SEALED
1.90—2.50V High+Low Alarm
A
B
C
E 3.30—5.00V High+Low Alarm
D 2.50—3.30V High Zone Alarm
N/O
Smoke Alarm
Contacts
4K7
Z1-8
COM
N/C
PIR Alarm
Contacts
8K2
TYPE 15: Zone Doubling with No Tampers.
Low Zone = Smoke Detector (N/O)*
High Zone = PIR (N/C)
Voltage Range
Zone Type 15
P 125 E (Z1-8) E
0.0—1.10V High+Low Alarm
1.10—1.90V High Zone Alarm
1.90—2.50V Low Zone Alarm
A
B
C
E 3.30—5.00V High+Low Alarm
D 2.50—3.30V SEALED
N/O
Smoke-A Alarm
Contacts
4K7
Z1-8
COM
N/O
Smoke-B Alarm
Contacts
8K2
TYPE 15: Zone Doubling with No Tampers.
Low Zone = Smoke Detector-A (N/O)*
High Zone = Smoke Detector-B (N/O)*
For this hardware configuration the zone must be programmed to be type 15 at address:
P 125 E 1-8=zone number E 15=zone type E
P 122 E 1-16=zone number E On by default
Option 1 = Zone is Active. This should be On unless you don’t wish to use the zone.
Option 2 = Zone is N/O. If the zone is a smoke detector with N/O contacts turn this On.
Option 3 = Not an Exit delay zone. Leave this option Off.
Option 4 = Keypad Zone. If On the standard zone is disabled and wont work.
Option 5 = Radio Zone. If On the standard zone is disabled and wont work.
Option 6 = Stay Mode. If On the zone will activate the alarm if Set in Stay Mode.
Option 7 = Manually Bypass. On means the zone can be disabled from the keypad.
Option 8 = Auto Bypass. If On the zone can auto disable if not sealed on Arming.
1 6 7 8
