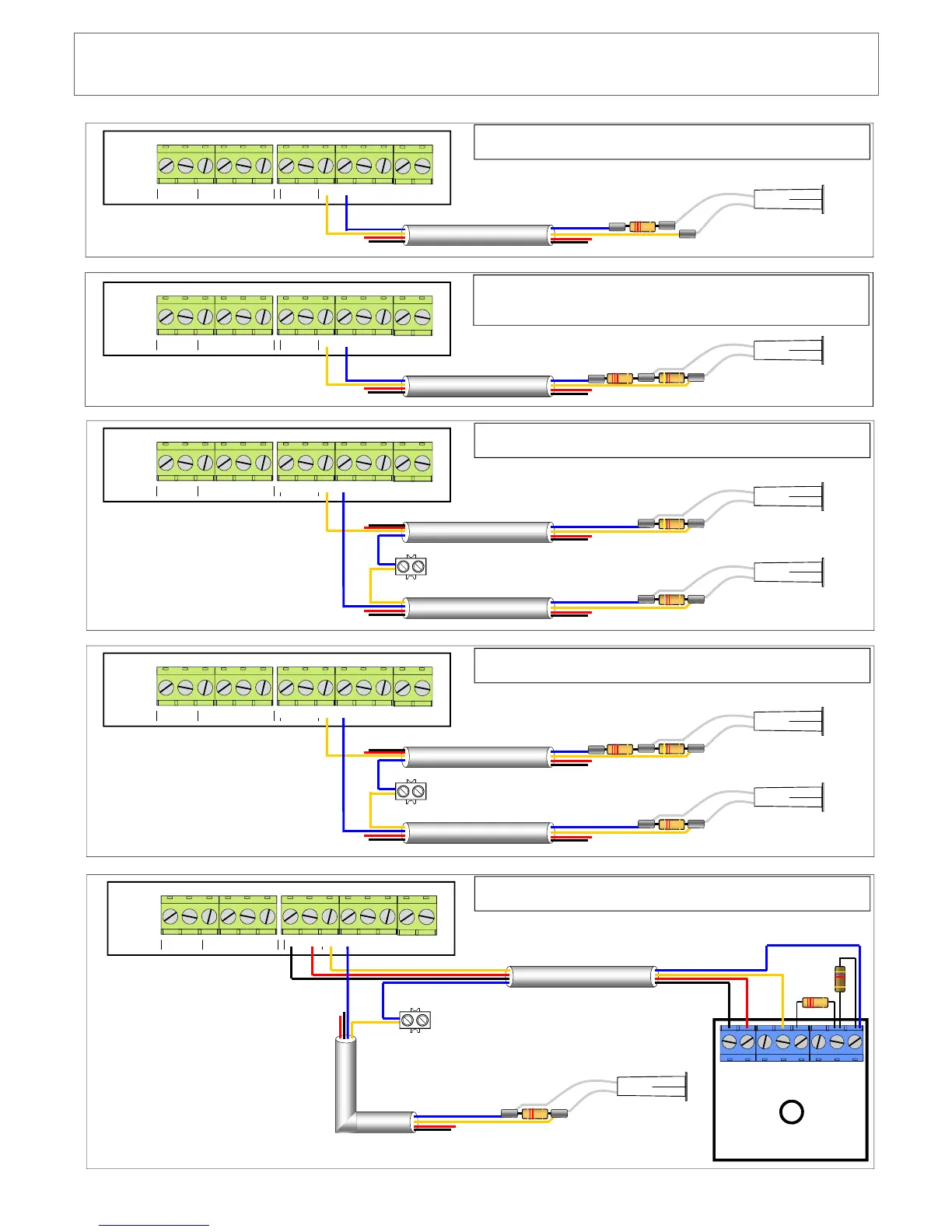

Arrowhead Elite S - Reed Switch Wiring Configurations; Single EOL (Type 3) Reed Switch Wiring; Double EOL (Type 12) Reed Switch Wiring; Dual EOL (Type 15) Reed Switch Wiring

Single EOL (Type 3) standard zone
Reed Switch Wiring
N/C REED SWITCH
Gnd 12V 1 C 2 3 C 4
Outputs
Gnd 12V 1 2 3 4
2k2
REED 1 = Zo ne 1
N/C REED SWITCH
Gnd 12V 1 C 2 3 C 4
Outputs
Gnd 12V 1 2 3 4
2k2
REED 1 = Zo ne 1
4k7
N/C REED SWITCH
Outputs
Gnd 12V 1 2 3 4
2k2
REED 1 = Zo ne 1
4k7
N/C REED SWITCH
REED 2 = Zo ne 5
8k2
Gnd 12V 1 C 2 3 C 4
N/C REED SWITCH
Outputs
Gnd 12V 1 2 3 4
REED 1 = Zo ne 1
4k7
N/C REED SWITCH
REED 2 = Zo ne 5
8k2
Gnd 12V 1 C 2 3 C 4
Outputs
Gnd 12V 1 2 3 4
N/C REED SWITCH
8k2
Zone 1 Passive
Infra-Red Detector
0v
12v
EOL TAMPER EOL RELAY
2k2
PIR 1 = Zo ne 1
4k7
Zone 5
REED 1 =
Gnd 12V 1 C 2 3 C 4
Double EOL (Type 12) 1 zone plus tamper
Resistors should be fitted as close to the Reed as possible.
Dual EOL (Type 15) 2 zones no tamper
Double EOL (Type 14) 2 zones plus tamper
Double EOL (Type 14) Reed and PIR wiring
