1BCONFIGURATION USING SOFTWARE
0BDEVICE CONFIGURATION

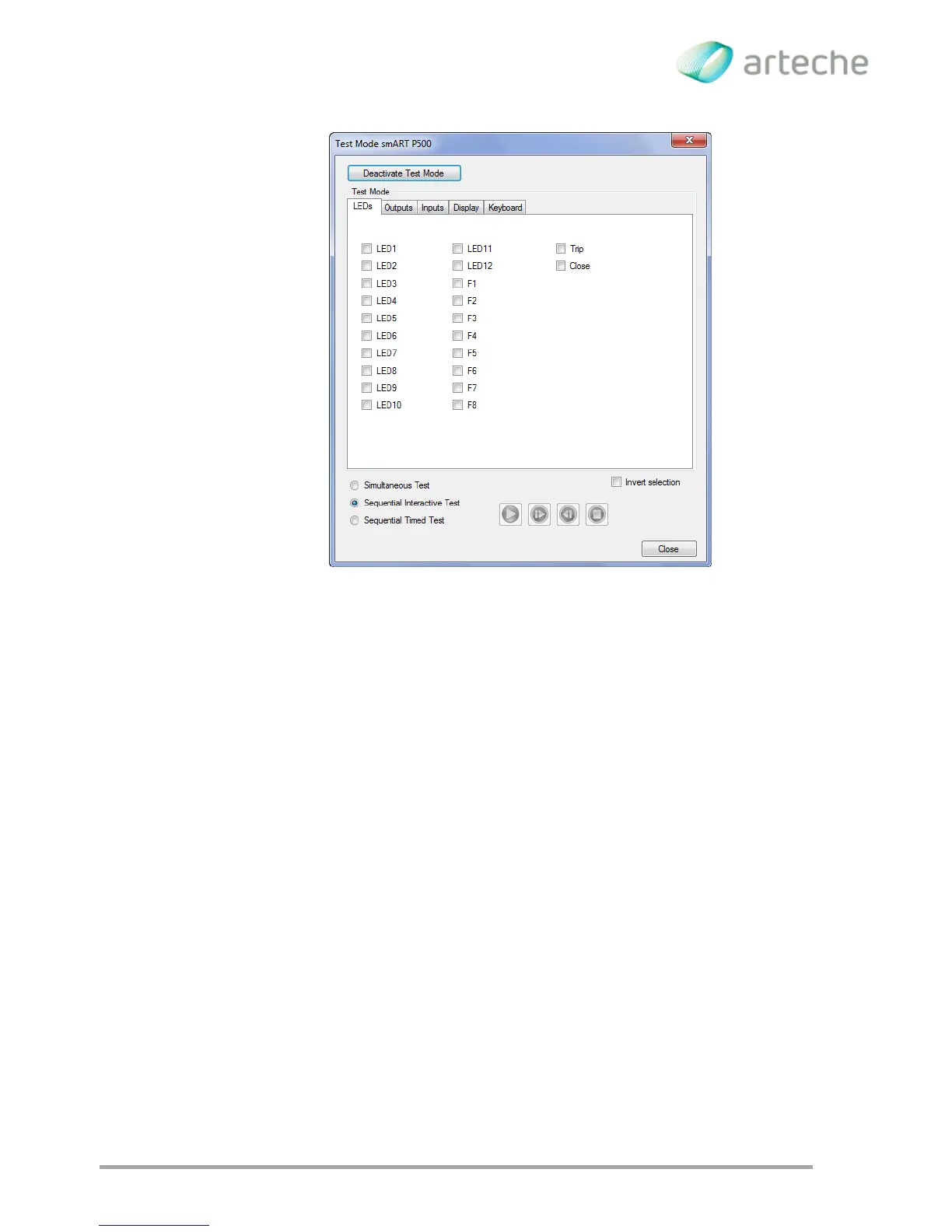

Figure 3-8 Test Mode
3.1.7. RELAY CONFIGURATION
Once the communication has been set, a window similar to the one in Figure 3-9
appears. The settings for the relay are established here.
The following describes each of the settings corresponding to the left section of the
Figure 3-9.
