50 Hz Electrical Service Configuration Options

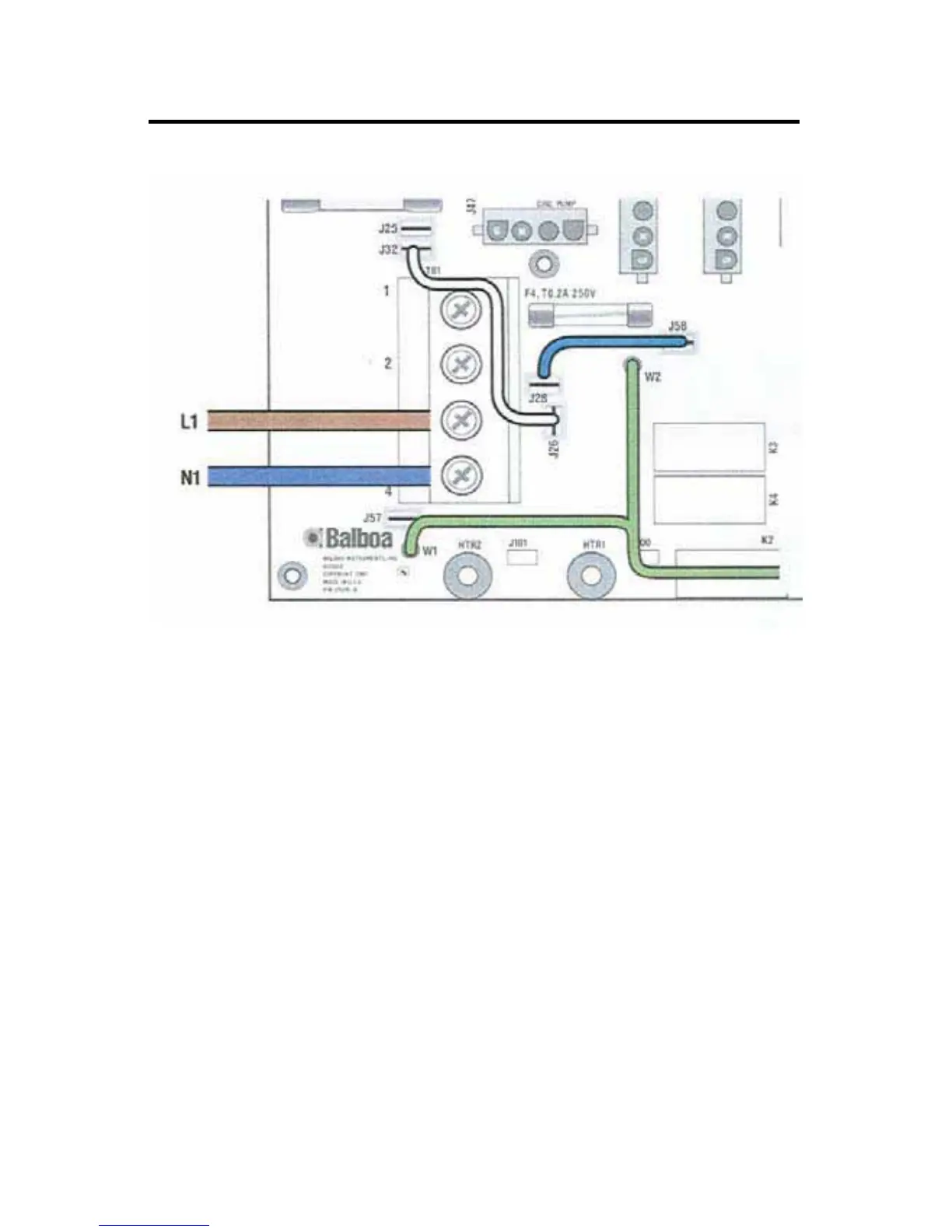

Single Service, TN and TT Electrical Systems
(1 X 16 Amp or 1 X 32 Amp)
3 Wires (1 Line + 1 Neutral + 1 Protective Earth)
Protective Earth wire (Green / Yellow) must be connected to system ground
terminal as marked.
This option is configured and shipped as the default.
All equipment (pumps, blower and heater) runs on service line L1
