SWITCH OFF THE MOTOR BEFORE REMOVING
OR INSERTING A NEEDLE
Artisan recommends that you use only “SCHMETZ” brand Needles.
For Leather use size; 794 D, 794 S, 794 LR
For Canvas, Nylon and Fabrics use size: 794

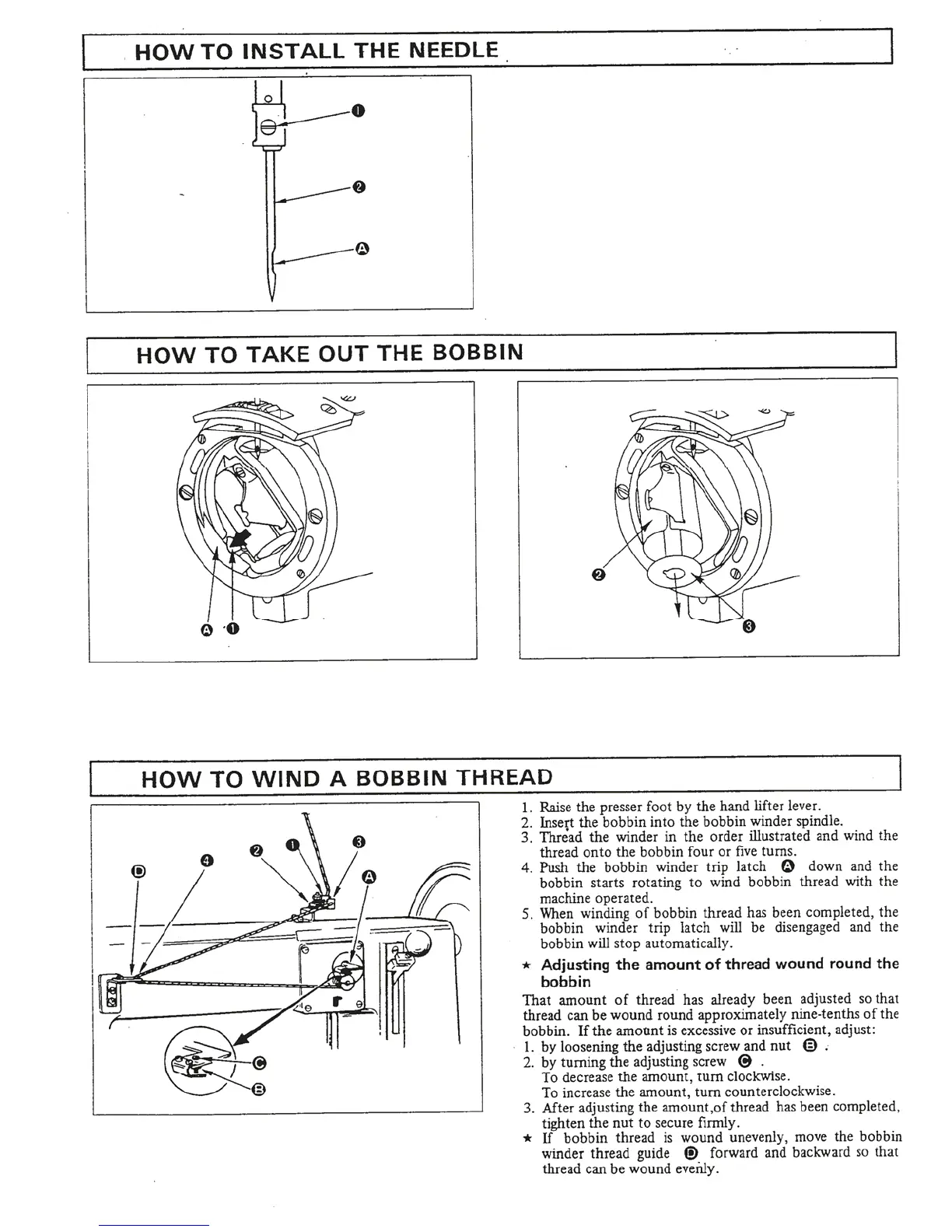

1. Turn the hand wheel counter-clockwise and raise the needle bar
to its highest position.
2. Loosen the needle set screw
#
(1) remove the old needle and
insert a new needle #2 into the needle bar. Push it up into
the hole as far as it will go.
3. Remember to locate the needle scarf
#
(A) towards the hand
wheel and the long groove of the needle to the left side.
4. Securely tighten the needle set screw
#
(1).
of a TORO-3200 and TORO-4000
3. Depressing the retaining latch #(1) will open the bobbin case.
4. Remove the bobbin being careful to leave the light weight beehive
shaped bobbin push spring inside the bobbin case.
1. Turn the handwheel counter-clockwise until the needle reaches
its lowest position.
2. Place your open left hand under the Shuttle area to catch the bobbin.
5.
