artisan Toro-3200 - Thread Tension

A.
B.
C.
Photos Not To Scale. For Representation Purposes Only.
D.
E.
F.
Shuttle Hook
Race Carrier
Frame
Shuttle Hook
Assembly
with Bobbin Case
Needle
Shuttle Hook
Driver
Needle
Guard

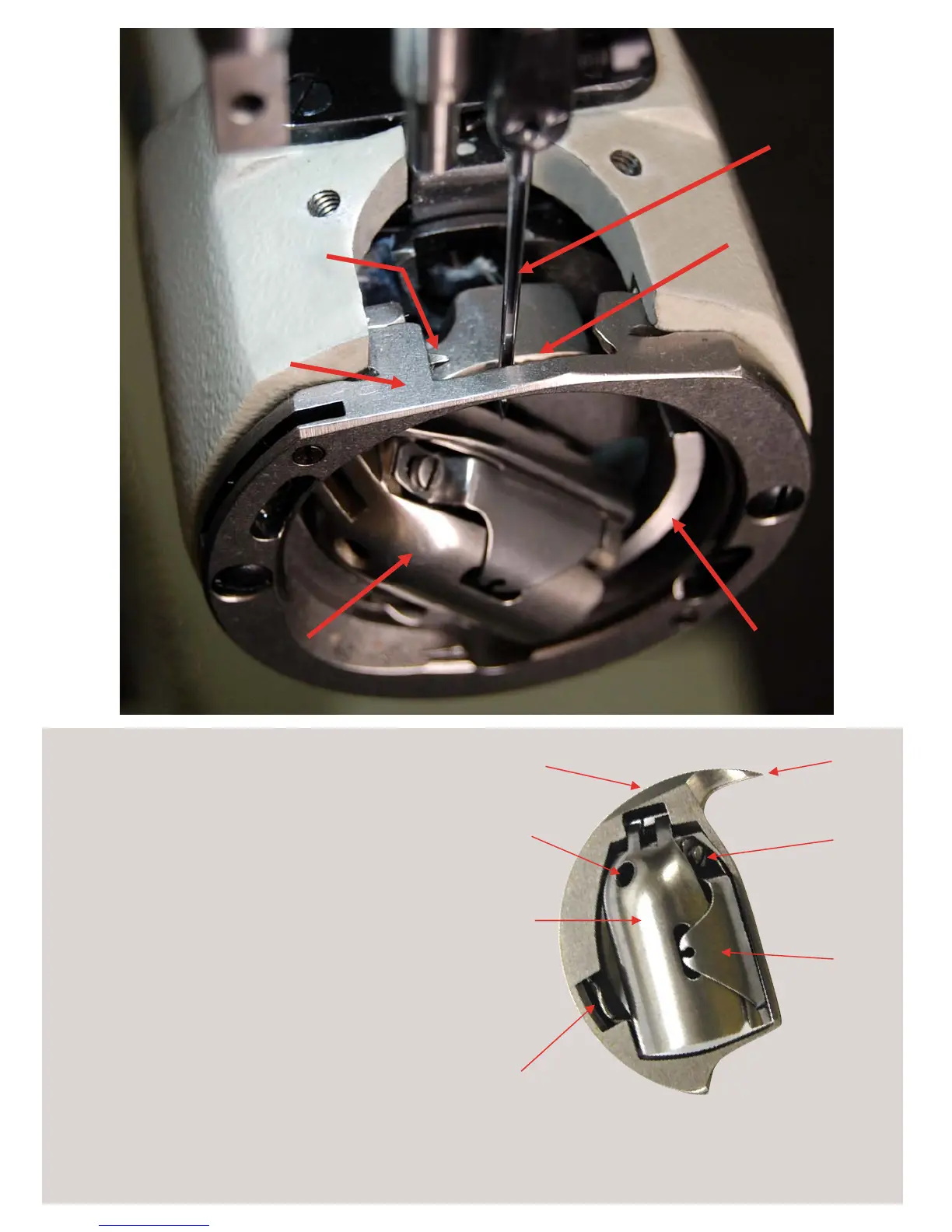

A. Complete Oscillating Shuttle
Hook Assembly with Bobbin Case.
B. Shuttle Hook Point.
C. Bobbin Thread Tension
Adjusting Screw.
D. Bobbin Thread Tension Adjusting
Locking Set Screw.
E. Bobbin Thread Tension Spring.
F. Bobbin Case.
G. Bobbin Case Opener Latch.
G.
Page 9
Shuttle Hook
Point
