AS SPAWN - Envelope Modes and Outputs

15

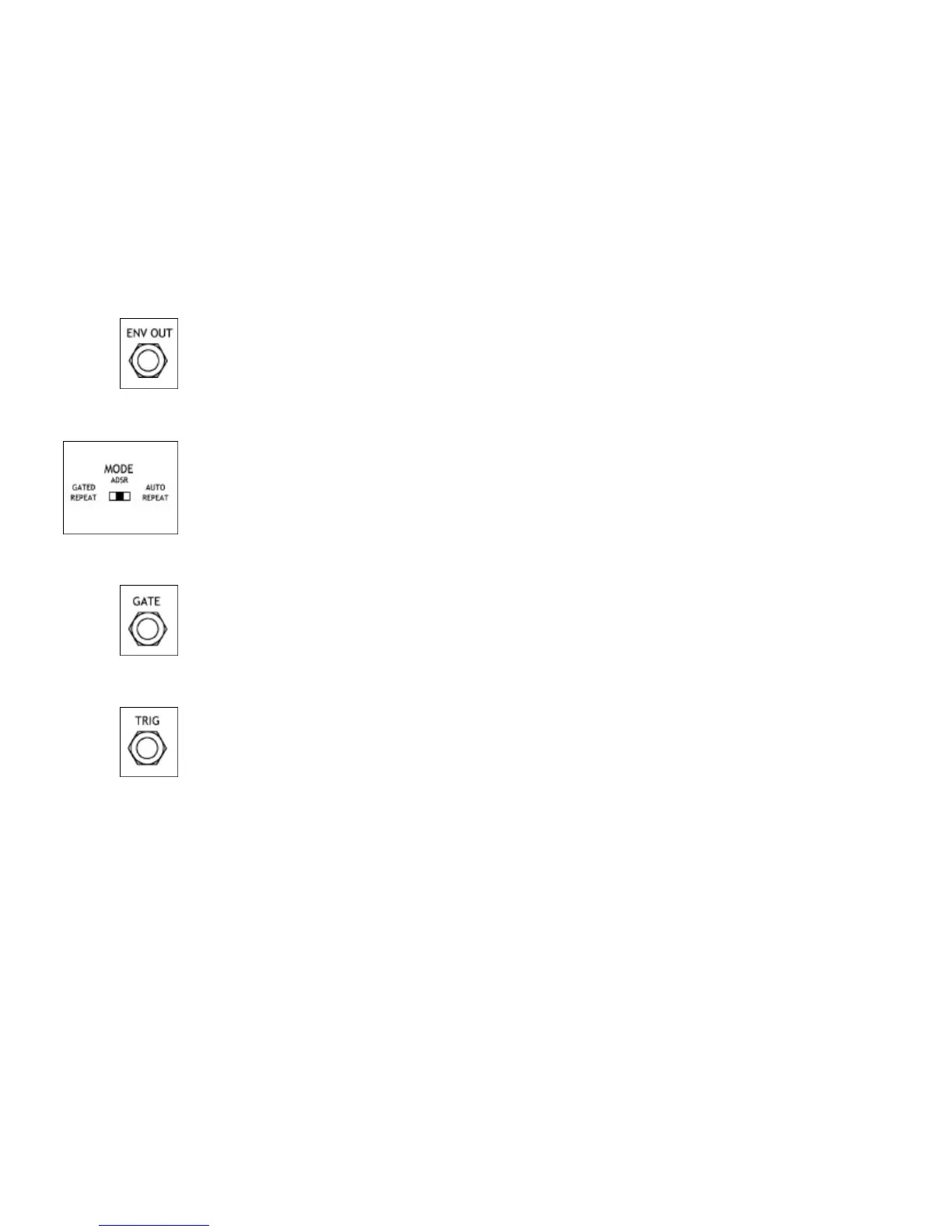

This is the output voltage of the ENV which can be used to control any voltage controlled input.
The Mode switch controls the type of contour generated by the envelope. With the switch in the centre position
‘ADSR’ the envelope generates the standard 4-part ADSR envelope on initiation of a gate. There are also 2 auto
repeat two part envelope controls, Attack - Decay. In the gated repeat mode the envelope will repeatedly cycle
through the A - D parts of the envelope while a gate is present. In the auto repeat mode the envelope will
continuously repeat the A + D parts of the envelope without a gate present. In both of these modes the sustain
and release controls are non functioning.
This is an input which initialises the ENV cycle (e.g: the gate output from a keyboard/controller with a minimum
output of 1 volt).
Midi is internally routed to the gate input allowing easy control from a Midi - Master keyboard/controller.
As with other internally routed Midi controls this can be isolated using the switch in the Midi section.
This is the trig/retrig input. A short positive pulse will re-initialise the already gated ENV.
