O VOLTAGE CONTROLLED LOW FREQUENCY OSCILLATOR
The VCLFO is a wide range oscillator (usually operated in the non audio range)
used to modulate control inputs, e.g: used for vibrato, tremolo and trill. It is internally
routed to the VCO and VCF (see INTERNAL SIGNAL ROUTE page 3).
Four waveforms are simultaneously available and the Rate can be altered using
the linear CV socket.
LFO CONTROL

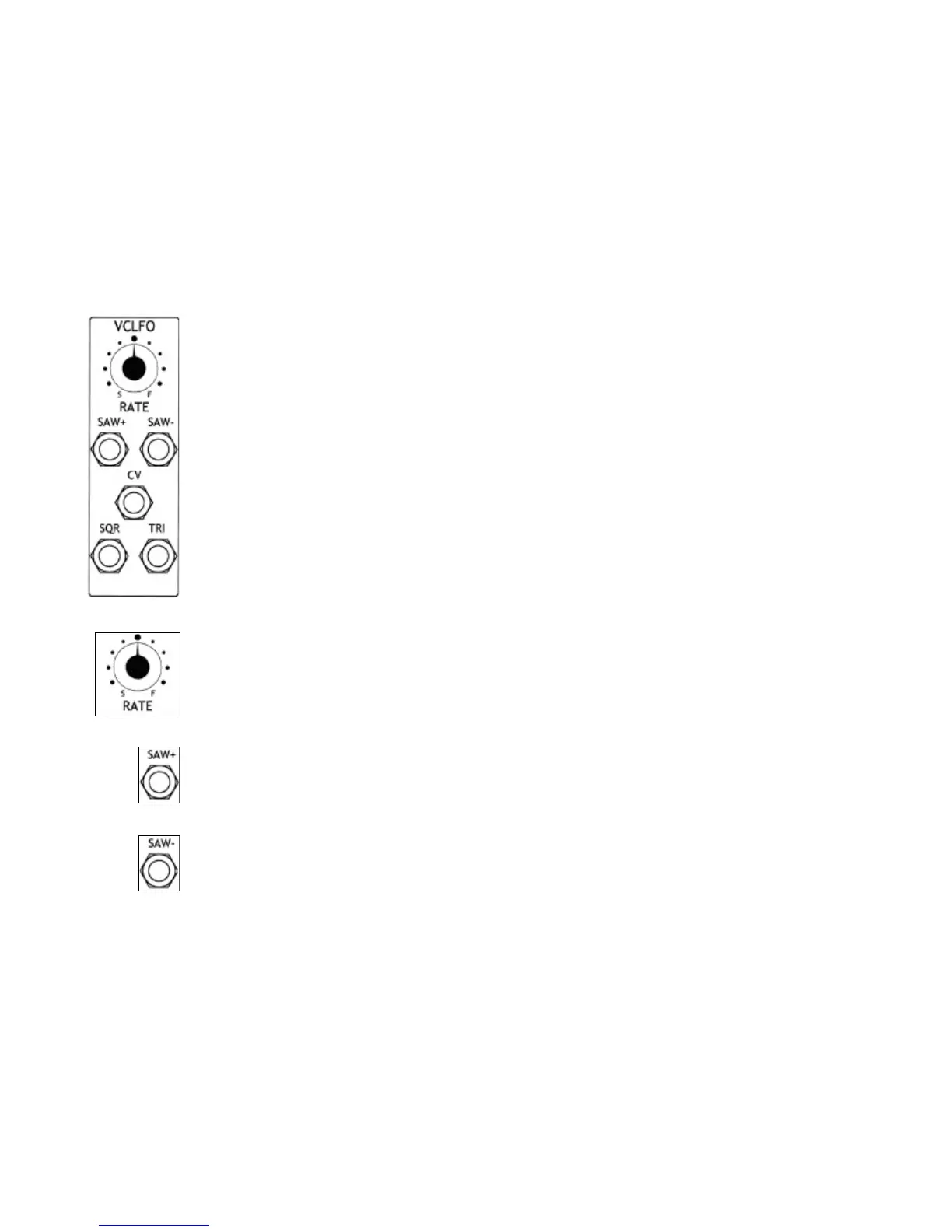

The Rate knob controls the speed of the modulation waveform.
The LED gives a visual indication of the speed of the VCLFO.
This output gives a positive sawtooth with an output voltage of +/-5 volts.
This output gives a negative sawtooth with an output voltage of +/-5 volts.
