AS SPAWN - MIDI Velocity, After Touch, Mod Wheel Outputs

To Next Page

To Previous Page

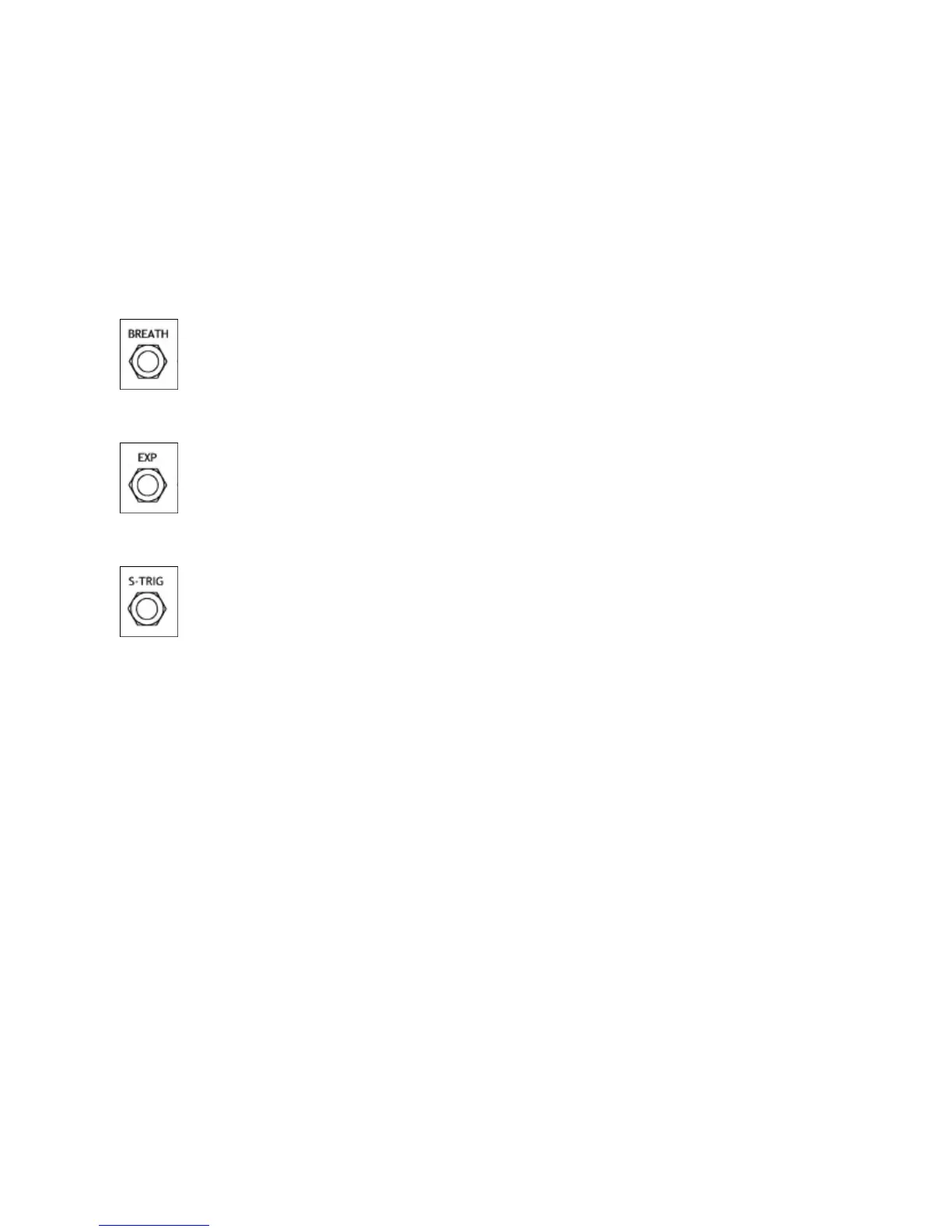

This socket provides a control voltage output relative to the breath controller (Midi CC no2) generated by a Midi

controller. This is a bi-polar controller e.g it can produce +ve and -ve voltages in the range of +/- 5volts.

This socket provides a control voltage output relative to expression (Midi CC no11) this is assignable Midi function

generated by a Midi controller. This is a bi-polar controller e.g it can produce +ve and -ve voltages in the range of

+/- 5 volts. There is an internally routed patch (see Midi routing switch note 4).

This socket provides the output for the Midi generated s-trig, essentially this is an inverted gate signal, when no

note is played on the Midi keyboard the s-trig socket has 10 volts at its output but when a key is pressed this

voltage drops to zero volts, this output can drive an envelope requiring a gate for inversion effects but is primarily

designed to initialise the envelope shapers on early Moog synthesizers when used as a Midi to CV convertor.
