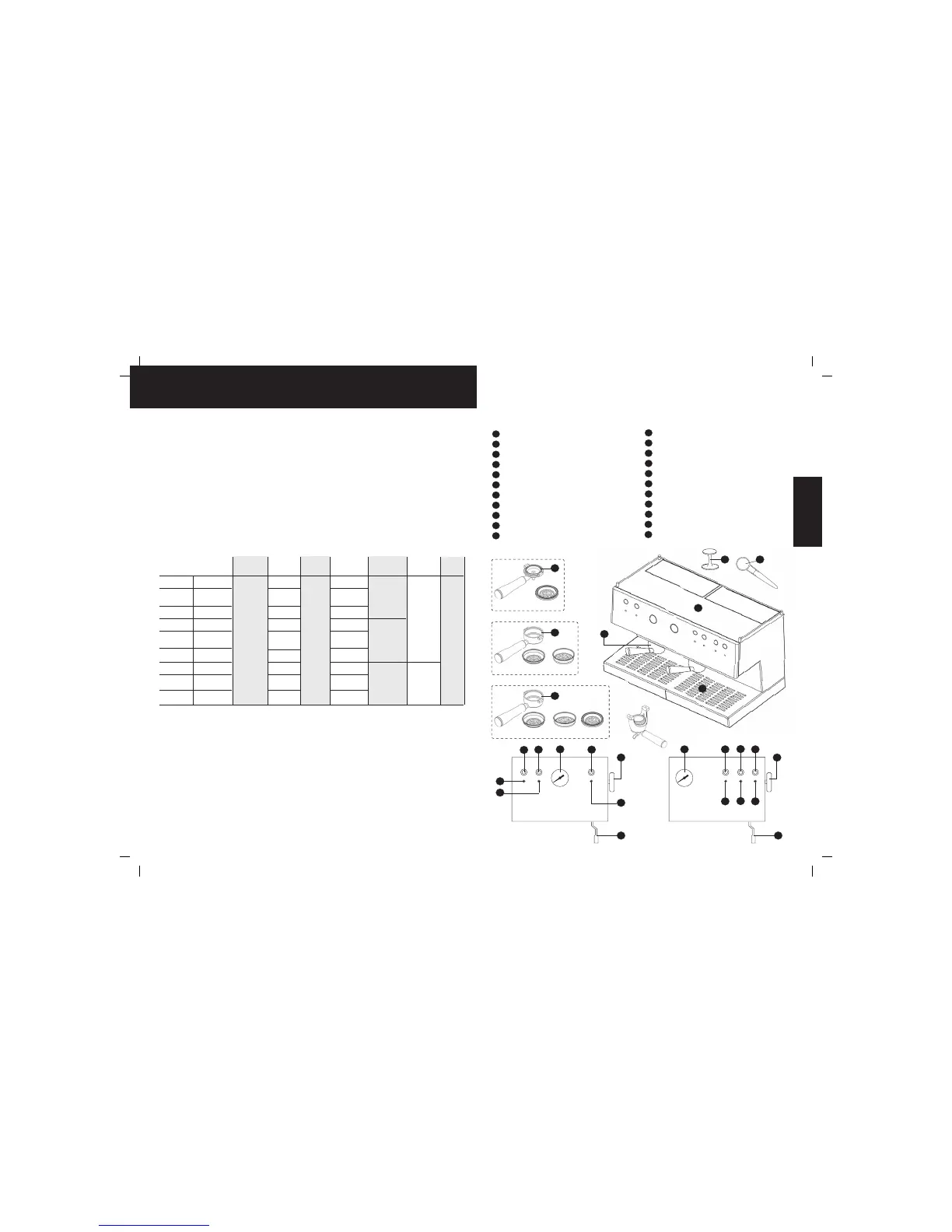

2-. Diagram
On/off switch
Coffee switch
Electronic device
Steam switch
Steam/water control (only mod.UNO)
Steam/water tube (Tube steam DUO / TRIO)
Temperature pilot light
Mobile filter holder (ground/pod)
Coffee group. (Attention hot surface)
Cup warmer. (Attention hot surface)
Mobile filter holder (only pod-option)
Tray
Water lack pilot
On/Off Pilot
Water switch (Duo/Trio)
Temperature steam pilot (Duo/Trio)
Water tube (Duo Trio)
ON/Off pilot (steam group) (Trio)
switch on/off steam group (Trio)
Thermometer (coffee)
Coffee-press
Coffee spoon (7gr)
ascasoascaso
ENGLISH
15
Contents
1. Technical specifications
2. Diagram
3. Safety. Start-up
4. Preparation of coffee
5. Coffee size progaming
6. Preparation of cappuccino
7. Preparation of steam
8. Maintenance and cleaning
9. Guarantee
10. Declaration of EC conformity
11. Quick consultation table
1-. Technical specifications
*length x height x depth (mm)
FF= Fixed filter. MF= Mobile filter.
Main features
Metal body.
Brass coffee unit.
Professional system.
Automatic temperature control.
Cappucino maker and hot water.
Versatile (mobile filter): Ground coffee/pod. (Option)
Food materials.
Cup warmer.
Innovative and functional design.
EC Certification.
1
2
3
4
5
6
7
8
9
11
13
14
15
16
17
18
12
10
20
21
Voltage Power (W) Pump Weight (kg.) Dimensions Reservoir Filter
(V) Pressure (l x h x p)* capacity(l) holder
(atm)
UNO-4 UNO (PM) 952 11
UNO-3 UNO (PM) 1252 12
PROF
UNO-1 UNO (PF) 1052 11
DUO-5 DUO (PM) 1968 15 2 Brass
DUO-15 DUO (PM) 2268 16
PROF
DUO-2 DUO (PF) 2068 15
TRIO-3 TRIO (PM) 2912 21
TRIO-13 TRIO (PM) 3512 23 2+2
PROF
TRIO-1 TRIO (PF) 3112 21
248
x
360
x
315
270
x
360
x
315
480
x
360
x
315
16 PA (BA)
230VAC~/50Hz
22
2A
To Next Page
