ASCOM USER GUIDE
High Speed Base Band Modems
15
4.1 UNPACKING AND CONSIGNMENT CHECK
The desktop version of the high speed modem comes packed complete with a 1.5m mains
lead fitted with a country variant mains plug, an RJ45 to RJ45 line cord and where necessary,
an RJ45 to BT style converter lead (where applicable).
Each modem comes with its appropriate user interface module fitted.
4.1.1 Ordering Information for Modems
The High Speed Base Band Modems product family can be ordered using the following
ordering number format:
1/265/YXX
Where Y refers to the model type:
Y=1 for AM64/512A
Y=2 for AM64/1024A
Y=3 for AM64/128EA
Y=4 for AM64/384A
Y=5 for AM64/768A
And XX refers to the user interface module fitted:
XX=01 for X.21 (V.11) interface
XX=02 for X.21bis (V.24/V.28) interface
XX=03 for V.35 interface
XX=04 for V.36 interface
XX=05 for RS530 interface
XX=06 for G.703 interface
XX=07 for modem without interface
4.1.2 Ordering Information for User Interface Modules
Replacement user interface modules can be ordered using the following ordering numbers:
X.21 (V.11) Interface Module 1/203/102/101
X.21bis (V.24/V.28) Interface Module 1/203/202/101
V.35 Interface Module 1/203/302/101
V.36 Interface Module 1/203/402/101
RS530 Interface Module 1/203/402/101
G.703 Interface Module 1/203/602/101
ABR 10BaseT 8-way RJ-45 socket 1/269/001/101
4 INSTALLATION
4
14 ASCOM USER GUIDE
High Speed Base Band Modems

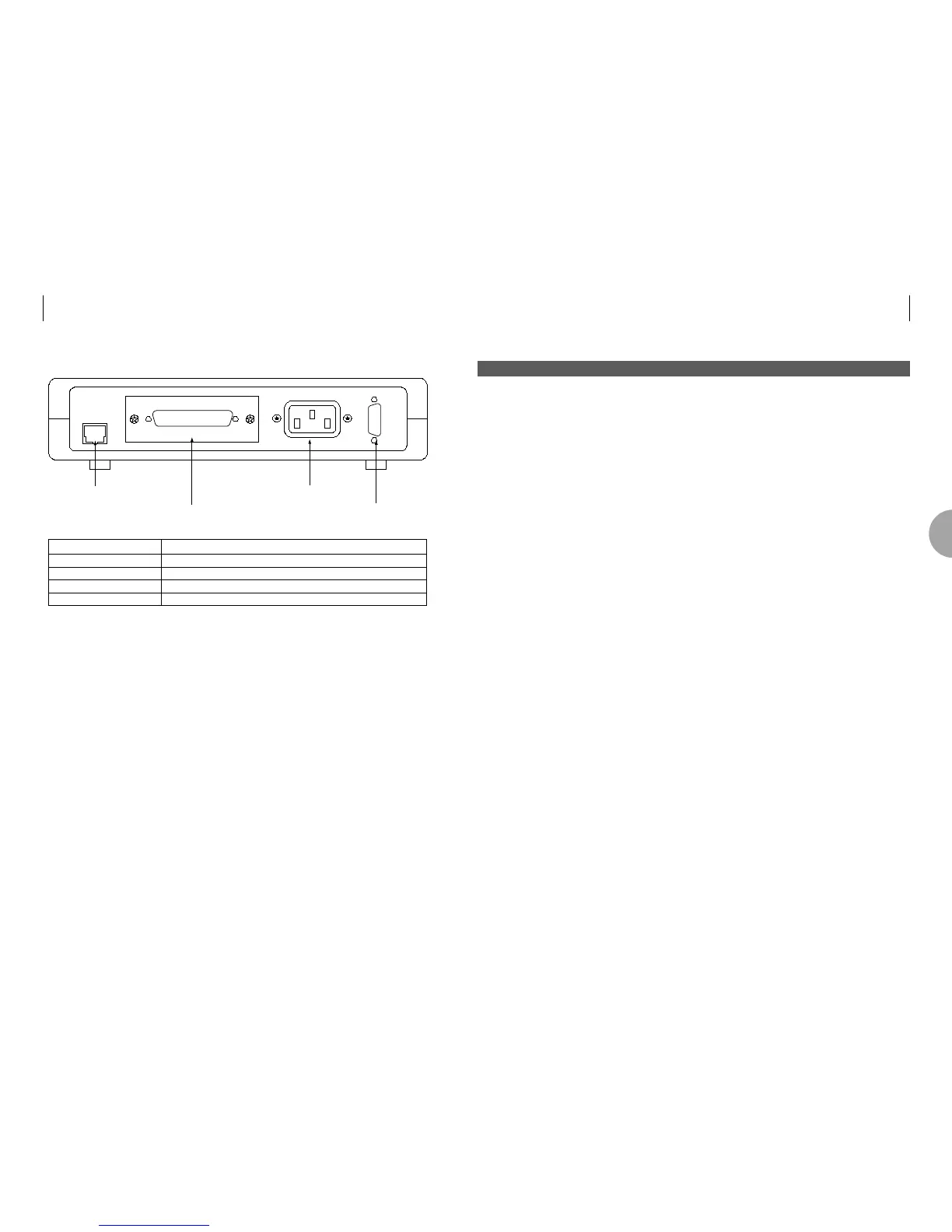

3.2 REAR PANEL
Line Connector
User Interface
Mains Connector
VT100 Terminal
Connector
