ASCOM NUBM3-HE User Manual

INSTALLATION GUIDE
Bedside Module (NUBM3-HE) Mounting

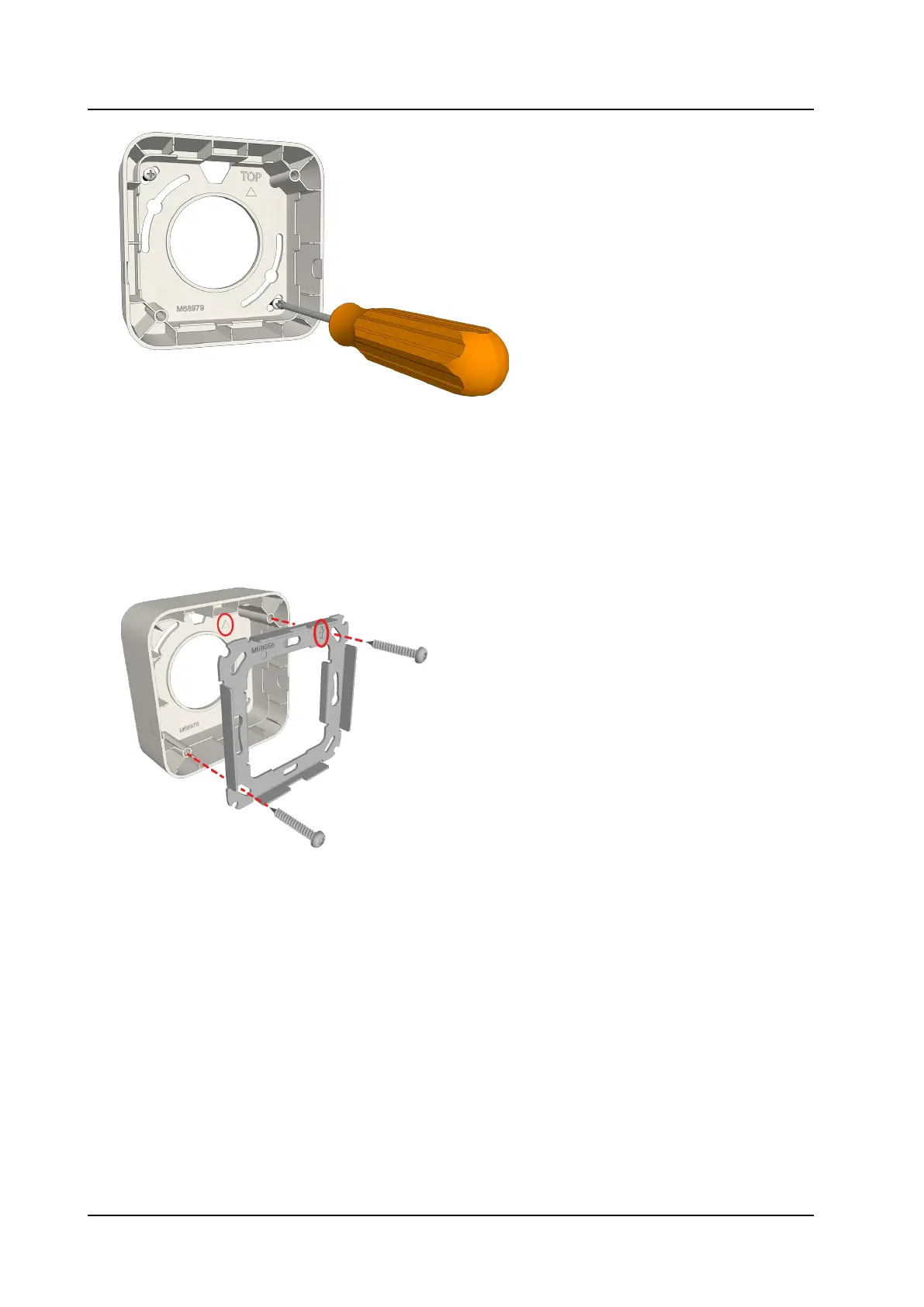

2. Using the spacer as a template, mark two holes for the screws using the outer fitting holes located in
the corners of the spacer.
3. Remove the spacer and drill screw holes for the screws that will be used, such as wood, concrete, or
drywall screws, or screws with anchors.
4. Remove the knockouts in the spacer for the cable wires.
5. Place the spacer over the holes, insert the screws, and then tighten.
6. Place the adapter over the spacer ensuring that it fits inside the spacer’s housing.
7. Insert the screws though the adapter plate and into the spacer, and then tighten the screws.
8. Pull the connection cables through the knockout holes.
