ASCOM NUBM3-HE User Manual

INSTALLATION GUIDE
Bedside Module (NUBM3-HE) Removing the module
7 Removing the module
Removal of the NUBM3–HE from wall or ceiling.

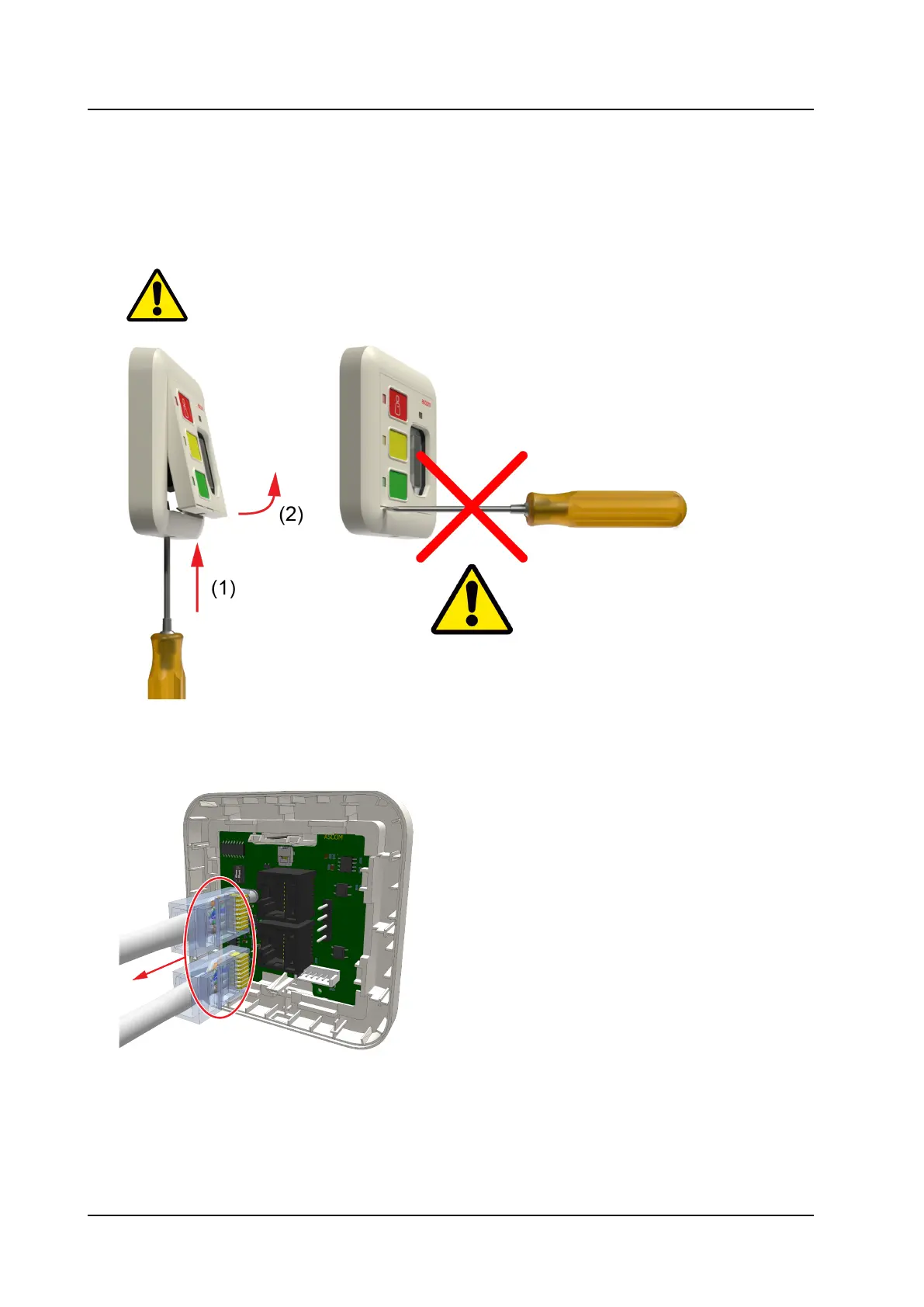

1. Remove the module:
• Insert a small flat tipped screwdriver into the hole on the bottom of the frame (item 1).
• Push the screwdriver up until the module pops out (item 2).
Caution: Do not insert the screwdriver into the bottom corner of the frame as this may
damage the frame or module.
It may be necessary to wiggle the screwdriver a bit for the module to come forward.
2. Pull the module gently away from the base. The module is still connected to the room bus.
3. Disconnect the room bus connectors and all other optional connectors from the rear of the module.
TD 93505EN / 28 February 2022 / Ver. A
8

ASCOM NUBM3-HE Specifications

General

Brand	ASCOM
Model	NUBM3-HE
Category	Control Unit
Language	English
