ASCOM NUBM3-HE User Manual

Mount the NUBM3–HE
INSTALLATION GUIDE
Bedside Module (NUBM3-HE)
6 Mount the NUBM3–HE

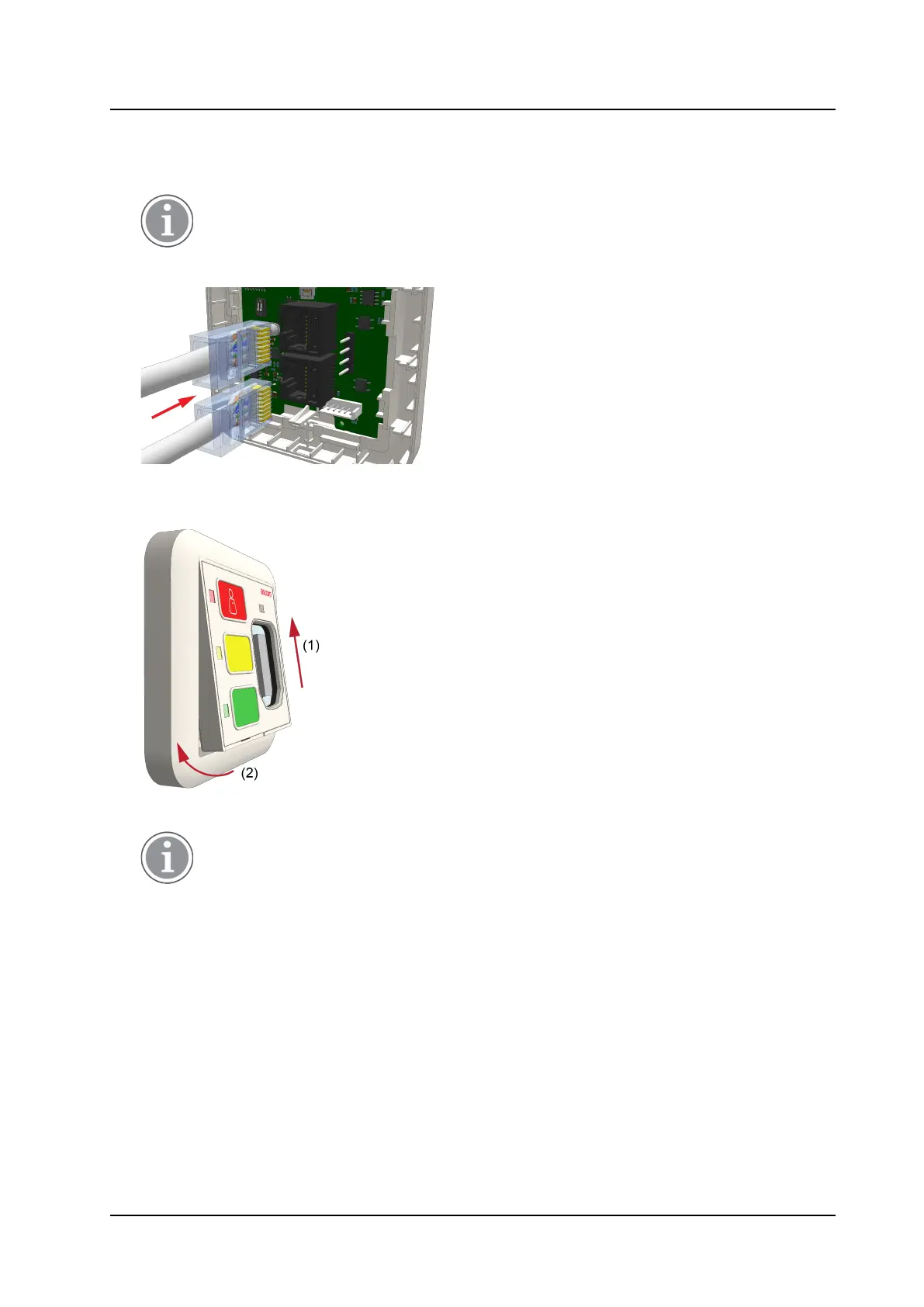

1. Pull the room buses through the adapter plate and the frame.
See 8 Terminating the Room Bus RJ45 Connectors, page 9.
2. Insert the room buses into the RJ45 connectors on the rear side of the NUBM3–HE.
3. Place the frame with the module over the adapter and insert the top of the module first into the adapter
(item 1) and then click the bottom of the module into the adapter (item 2).
4. Perform a test to verify that the LEDs function correctly.
Only in a correctly configured system will a call or presence generate an alert on display
devices such as corridor lamps.
7
TD 93505EN / 28 February 2022 / Ver. A

ASCOM NUBM3-HE Specifications

General

Brand	ASCOM
Model	NUBM3-HE
Category	Control Unit
Language	English
