Section 1: Introduction
The OMNI 3 (Fig. 1) is a full HD (1080p) digital microscope inspection system that operates without a
PC. The OMNI 3 platform has a powerful image processing and control engine that delivers superb
full live video image quality at 50/60 frames per second, enabling it to be utilised as a solution in a
broad range of quality control, testing, network, assembly, inspection, and documentation tasks.
The OMNI 3’s flexible, custom platform is highly configurable with advanced inspection and
measurement applications such as: 2D Measurement & Graticule (AP 100-001), Image Stacking (AP
100-002), Image Overlay Comparator (AP 100-003), Side by Side image Comparator (AP 100-004),
DXF Importer (AP 100-005), Z Height (AP 100-008), Colour Analysis (AP 100-009) and Object
Counting (AP 100-010) apps.

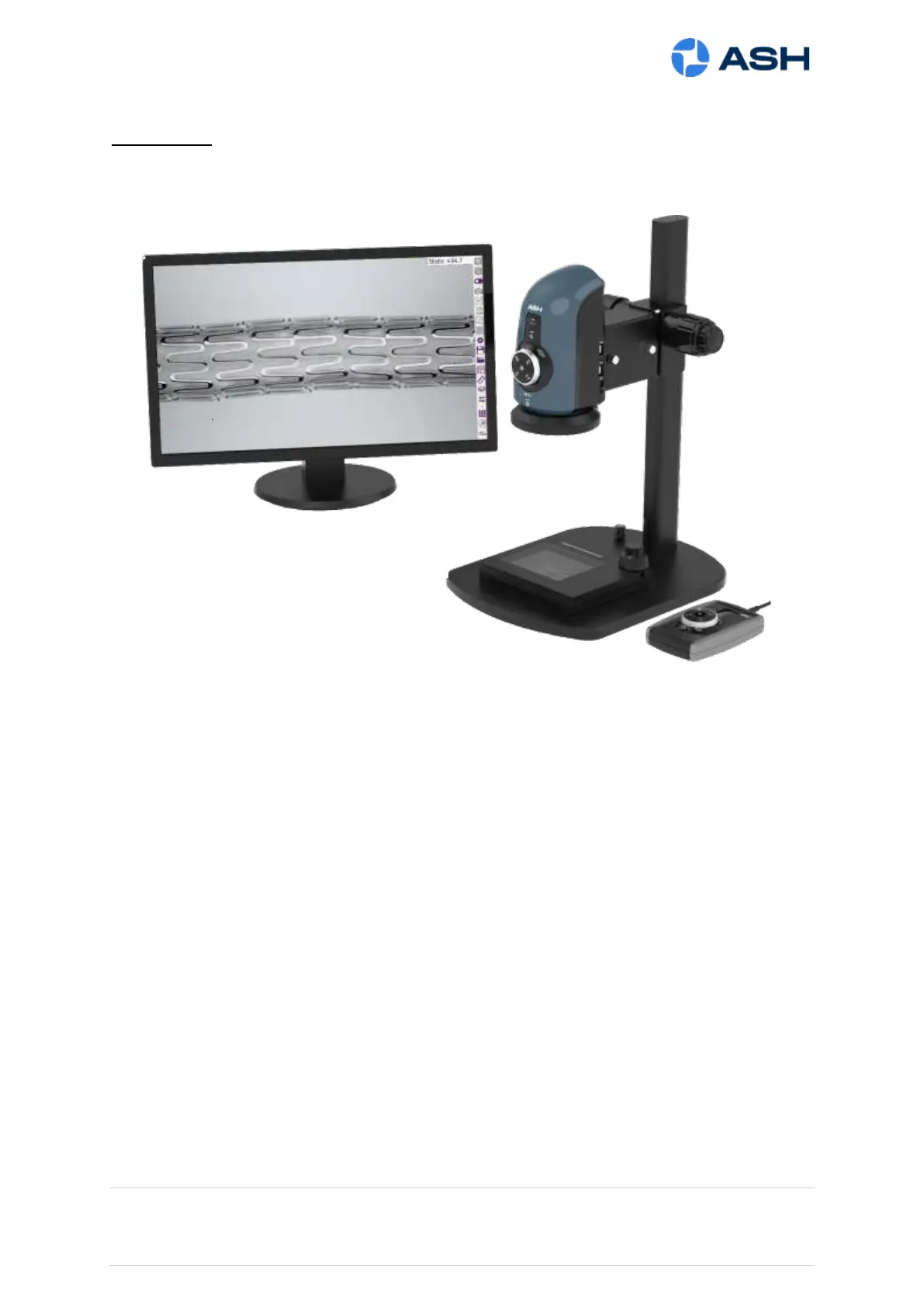

Fig. 1
