IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST BE REPLACED USING ASHLEY PARTS
PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM ASHLEY. USE OF THIRD PARTY
COMPONENTS WILL VOID THE WARRANTY.
Key Part # Description Qty
1 892199 Housing, PCBA Controller 1
2 80630 PCBA, Controller 1
3 891148 Lid Latch 1
4 892669 Top Weldment 1
5 80491 Lid Switch 1
6 80631 PCBA 1
7 892674 Vented Back Panel 1
8 80462 AC Electrical Connector 1
9 80602 Exhaust Blower 1
10 88166 Gasket, Exhaust Blower 1
11 892668 Ash Clean-Out Covers 2
12 88258 Gasket, Ash Clean-out 2
13 80607 Igniter 1
14 83538 Shaft Collar - Ignitor Tube 1
15 69762 Burnpot 1
16 80599 T-Disc, Exhaust 1
17 80529 Auger Motor 1
18 892665
Auger Motor Mounting
Bracket
1
19 892661 Auger Housing Weld. 1
20 892677 Auger 1
21 892664 Agitator Bushing 1
22 80455 T-Disc, Room Air 1
23 80709 Room Blower 1
24 80549 Vacuum Switch 1
25 88176 Insulation Blanket 1
26 892685 Hearth Plate 1
27 892682 Door Assembly 1
* 80710 Wiring Harness 1
* 80711 Thermistor 1
* Item Not Shown
1
2
3
4
6
9
10
8
7
5

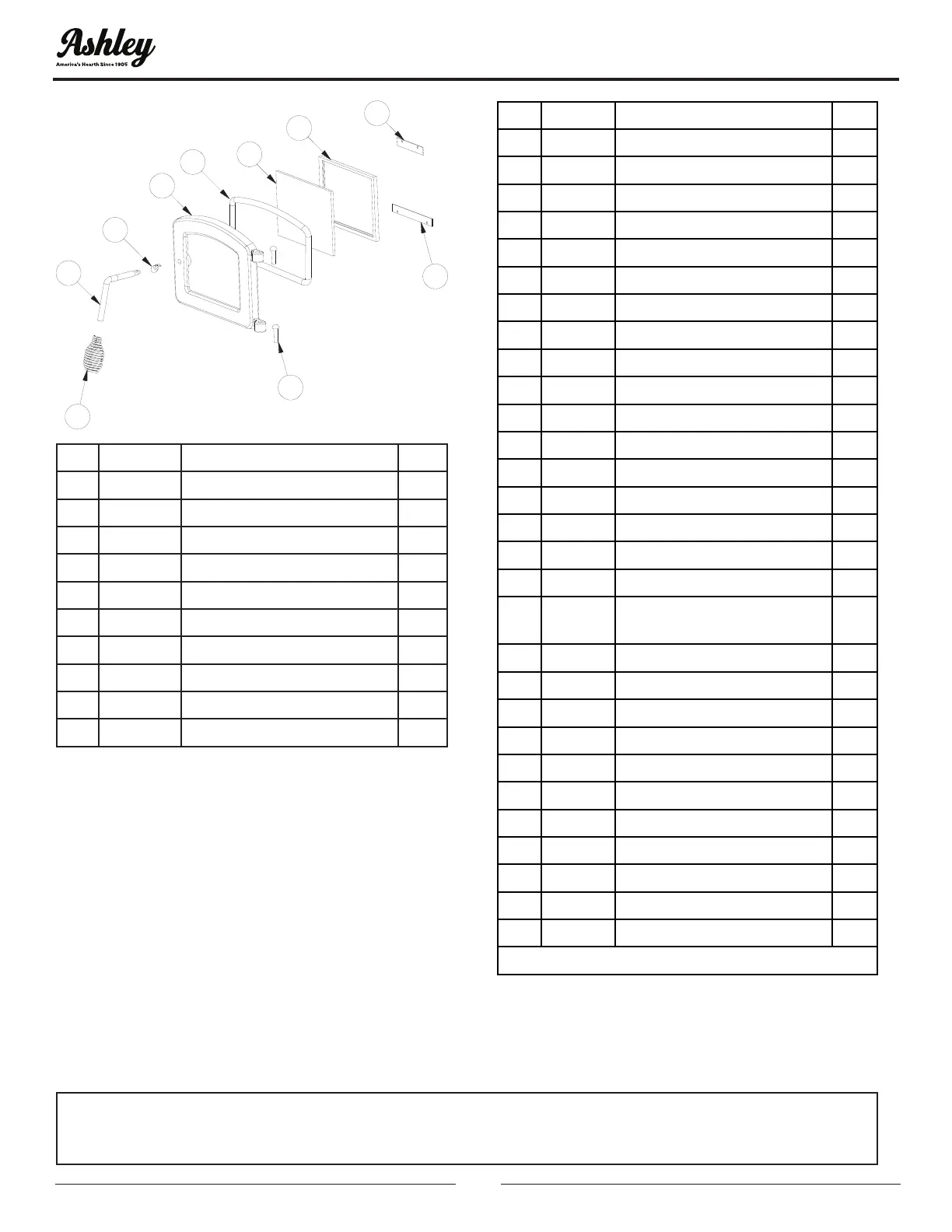

Key Part# Description Qty
1 891135 Handle, Spring (Lg-Nickel) 1
2 892854 Door Handle 1
3 AC09185 Roller Ball Kit 1
4 40793 Feed Door Frame 1
5 88066 5/8” Rope Gasket 4 ft
6 892686 Door Glass 1
7 88087 Window Gasket 2.5 ft
8 28220 Top Glass Brace 1
9 28221 Bottom Glass Brace 1
10 83709 Door Pin 2
REPAIR PARTS
To order parts:
Call 1-800-750-2723 Ext 5051 or
Email to: parts@usstove.com
To order parts:
Call 1-800-750-2723 Ext 5051 or
Email to: parts@usstove.com
